Nkx2.5 Based Ventricular Programming of Murine ESC-Derived Cardiomyocytes



Frauke Thielea,b    Christin Voelknera    Vivien Krebsa    Paula Müllera,b

Julia Jeannine Junga,b    Christian Rimmbacha,b    Gustav Steinhoffa,b    Thomas Noackc    Robert Davida,b    Heiko Lemckea,b



aDepartment of Cardiac Surgery, Reference and Translation Center for Cardiac Stem Cell Therapy (RTC), University Medicine Rostock, Rostock, Germany, bFaculty of Interdisciplinary Research, Department Life, Light & Matter, University Rostock, Rostock, Germany, cOscar-Langendorff-Institute for Physiology, University Medicine Rostock, Rostock, Germany









Key Words

Cardiovascular forward programming • Nkx2.5 • Ventricular subtype identity • PSCs



Abstract

Background/Aims: The availability of truly maturated cardiomyocytic subtypes is a major prerequisite for cardiovascular cell replacement therapies. Pluripotent stem cells provide a suitable source for the development of new strategies to overcome enormous hurdles such as yield, purity and safety of in vitro generated cells. Methods: To address these issues, we have refined existing forward programming protocols by combining forced exogenous overexpression of the early cardiovascular transcription factor Nkx2.5 with a αMHC-promoter-based antibiotic selection step. Additionally, we applied small molecules such as ascorbic acid to enhance cardiomyogenic differentiation efficiency. Subsequently, we evaluated the cell fate of the resulting cardiomyocytes on the mRNA as well as protein levels. The latter was performed using high-resolution confocal microscopy. Furthermore, we examined the response of the cells` beating activities to pharmacological substance administration. Results: Our results reveal an apparent influence of Nkx2.5 on the cell fate of ESC-derived cardiomyocytes. Resulting single cells exhibit characteristics of early ventricular cardiomyocytes, such as sarcomeric marker expression, spontaneous beating frequency, and distinct L-type calcium channel occurrence. Conclusion: Therefore, we demonstrate cardiovascular subtype forward programming of ESCs using a combination of transcription factors along with small molecule administration. However, our findings also underline current assumptions, that a terminal maturation of PSC derived cardiomyocytes in vitro is still an unsolved problem which urgently needs to be addressed in the field.





Introduction



The complex organization of the mammalian four-chambered heart requires the generation of several muscle and non-muscle cell types during embryonic development. This comprises cardiomyocytes (CM) of left and right atria as well as left and right ventricles, conduction system, pacemaker, vascular smooth muscles, endo- and epicardial cells [1, 2]. The definite cell fate is achieved through spatiotemporally stringent molecular regulations. Previous findings from work on mouse embryogenesis suggest a Nkx2.5+/Hcn4+ cell population establishing the first heart field (FHF) [3–5] and a Nkx2.5+/Isl1+ cell population establishing the second heart field (SHF) [6, 7] which would evolve independently, originating from a mesodermal cardiovascular MesP1+/Flk1+ progenitor [8–10]. The pivotal role of the homeobox protein Nkx2.5 as a transcription factor (TF) regulating cardiogenic development is also evident from its highly conserved structural and functional occurrence across species [11, 12]. Homologues of Nkx2.5 are present in the contracting pharynx of the nematode Caernorhabditis elegans [13], crucial for the development of the tubular heart in the common fruit fly Drosophila melanogaster [14, 15] and promote myocardial development in zebrafish and Xenopus embryos [16, 17]. So far, little is known about the precise pathways underlying spatiotemporal regulations to form the entire heart and particularly specific CM subtype differentiation. Nonetheless, it is known that one consequence of false embryonic development are congenital heart defects (CHD) present at birth due to malformation of heart structures [18, 19]. Dysregulation of the involved TFs such as Nkx2.5 play a decisive role in their pathogenesis [20, 21]. Besides, potential underlying genetic polymorphisms affecting Nkx2.5 expression are discussed, at present [21]. Moreover, it has been demonstrated that downstream factors of Nkx2.5 such as Isl1 [22] or Bmp2 and Smad1 [23] have an impact on CM subtype identity in mutant mouse models.

So far, diverse strategies aimed to comprehend embryonic heart development to reproduce distinct cardiovascular cell types. However, an efficient in vitro cardiogenic differentiation of pluripotent stem cells (PSCs) towards mature CMs is an unfulfilled aim. Moreover, terminal maturation is of great importance as a direct application of undifferentiated PSCs is unfeasible due to their high potential to form teratoma in vivo [24, 25]. In addition, transplantation of a heterogeneous CM mixture could induce arrhythmias [26]; thus, purification resulting in homogenous CM subtype populations is an indispensable prerequisite for clinically relevant scenarios. Moreover, it should be considered that induced pluripotent stem cell (iPSC) lines typically reveal a highly heterogeneous gene expression profile exceeding that of embryonic stem cells (ESCs) [27–29], which further impedes a reliably unified differentiation model of iPSCs.

We therefore investigated and improved existing murine ESC forward programming protocols [8, 30] to evaluate the potential of Nkx2.5 for in vitro generation of cardiomyocytic subtypes. By combining a forced exogenous overexpression of Nkx2.5 [30] and a αMHC promotor-based antibiotic selection [31], we achieved a pure αMHC+ cell population with augmented maturation toward early ventricular CMs.





Materials and Methods



Culture of murine ECSs

W4 murine embryonic stem cells (mESCs) [32] were cultured in DMEM supplemented with 15 % FBS Superior (Biochrom AG, Germany), 1 % Cell Shield® (Minerva Biolabs GmbH, Germany), 100 µM non-essential amino acids, 1000 U/mL leukemia inhibitory factor (Phoenix Europe GmbH, Germany) and 100 µM β-mercaptoethanol (Sigma-Aldrich GmbH, Germany) at 37 °C, 5 % CO2 and 20 % O2.

Undifferentiated mESCs were co-cultured for at least seven days on inactivated murine embryonic fibroblasts SNL 76/7 (STO cell line). Afterwards, mESCs were removed from the SNL feeders  using collagenase IV (1 mg/mL) and accutase (400-600 units/mL) as previously described [33]. Clones were subsequently cultured under antibiotic selection (W4 αMHC: 250 µg/mL hygromycin; W4 αMHC hNkx2.5: 250 µg/mL hygromycin and 10 µg/mL blasticidin) on gelatine coated culture plates to ensure a feeder free and pure cell population.



Generation of Nkx2.5 overexpressing murine ESCs

The mESCs were transfected with a pGK-hygro αMHC-puromycin cassette previously described with subsequent clone selection [31, 34]. The resulting W4 αMHC ESCs were detached with trypsin for 3 min at 37 °C, centrifuged and counted in respective standard growth medium. For the second transfection with the human Nkx2.5 cDNA, a commercially available Full-ORF-Expression Clone (Clone-Nr.: OCAAo5051H0157-pEF-DEST51) purchased from Imagenes (Berlin, Germany) was used. For this transfection step, cells were seeded in a density of 5.4 x 105 per cm2 in a TTP cell culture plate. 6 h after seeding, the cells were transfected using jetPEI® DNA transfection reagent (Polyplus transfection®, USA) according to the manufacturer’s instructions using 20 µg nucleic acid per 5 x 106 cells. The first medium change was performed 24 h after transfection with the addition of respective antibiotics. Subsequently, clones were picked and cultured under antibiotic selection (W4 αMHC: 250 µg/mL hygromycin; W4 αMHC hNkx2.5: 250 µg/mL hygromycin and 10 µg/mL blasticidin).



Cardiovascular differentiation of mECSs

Ventricular differentiation of mESCs was performed in cardiogenic differentiation medium, containing IBM (Iscove’s Basal Medium, Biochrom AG, Germany) supplemented with 10 % FBS Superior, 1 % Cell Shield®, 100 µM non-essential amino acids, 450 µm 1-thioglycerol (Sigma-Aldrich GmbH, Germany), 213 µg/mL ascorbic acid (Sigma-Aldrich GmbH, Germany) and respective antibiotics (W4 αMHC: 250 µg/mL hygromycin; W4 αMHC hNkx2.5: 250 µg/mL hygromycin and 10 µg/mL blasticidin). Differentiation was initiated by hanging-drop culture for two days at 37 °C, 5 % CO2 and 20 % O2. Therefore, 400 cells per drop were plated on the cover of a square petri dish. Afterwards, formed embryoid bodies (EBs) were cultured for four days in suspension culture, whereby they were regularly shaken. From day 7 on, cells were split using two different oxygen concentrations (1 % O2 and 20 % O2) and were thereafter examined with regard to their spontaneous beating activity and quantity. Qualitative analysis of spontaneously beating activity was performed by seeding at average 10 EBs per single well of a gelatin-coated 24 well dish with subsequent counting of resulting beating areas per EB for 14 days.

The optimal time point for the αMHC-antibiotic selection step was evaluated by seeding at average 10 EBs per single well of a gelatin coated 24 well dish and subsequent treatment with 2 µg/mL puromycin on day 7, 9, 11, 13 or 15 of differentiation. Single cells were obtained through dissociation four days after puromycin treatment with collagenase IV and accutase and counted at day 12 of differentiation.



Isolation of neonatal cardiomyocytes

Neonatal CMs were obtained from 1-2 day old NMRI mice and isolated using Pierce primary CM isolation kit according to the manufacturer“s instructions (Thermo Fisher Scientific). The whole isolation process has been described previously [35]. CMs were cultivated in DMEM supplemented with 10 % FBS and 1 % P/S (all Pan Biotech) and grown on 0.1 %-gelatine (Sigma-Aldrich) coated surfaces.



RNA isolation

Isolation of total RNA from undifferentiated mESC clones was performed using NucleoSpin® RNA isolation kit (Macherey-Nagel, Germany) and from cardiogenic derived single cells at day 25 of differentiation using NucleoSpin® RNA isolation kit XS (Macherey-Nagel, Germany) following the manufacturer’s instructions. Purity and concentration were analyzed with NanoDrop 1000 Spectrophotometer (Thermo Fisher Scientific Inc., USA).



Reverse transcription

Synthesis of first strand cDNA from aforementioned total-RNA was performed using the RevertAid H Minus First Strand cDNA Synthesis Kit (Thermo Fisher Scientific Inc., USA) following the manufacturer’s instructions. The reverse transcription was performed applying the Oligo(dT)18 primer. The reaction was conducted using the MJ Mini™ thermal cycler (Bio-Rad Laboratories GmbH, Germany).



Quantitative real-time polymerase chain reaction

qPCR was performed using the StepOnePlus™ Real-Time PCR System (Applied Biosystems, Germany) with the following program (StepOne™ Software Version 2, Applied Biosystems, Germany): start at 50 °C for 2 min, initial denaturation at 95 °C for 10 min, denaturation at 95 °C for 15 s and annealing/elongation at 60 °C for 1 min with 40 cycles. A qPCR reaction consists of TaqMan® Universal PCR Master Mix (Thermo Fisher Scientific Inc., USA), respective TaqMan® Gene Expression Assay, UltraPure™ DNase/RNase-Free Distilled Water (Thermo Fisher Scientific Inc., USA) and 10 ng of the respective cDNA. Analysis and evaluation of gene expression profiles were performed using the ∆∆Ct method for relative quantifications. Therefore, mean values of target genes (cTnnT2: Mm01290256_m1; Fut4: Mm00487448_s1; Gja1: Mm00439105_m1; Hcn4: Mm01176086_m1; Isl1: Mm00517585_m1; MesP1: Mm00801883_m1; Myh6: Mm00440359_m1; Myl2: Mm00440384_m1; Nanog: Mm02019550_s1; Pou5f1: Mm00658129_gH;) were normalized to the mean values of the housekeeping genes Hprt (Mm00446968_m1) and Polr2a (Mm00839493_m1) and relative considered to a respective control probe. All qPCR TaqMan® Gene Expression Assays were purchased from Thermo Fisher Scientific Inc., USA.



Immunohistochemistry

Visualization of pluripotent expression pattern of mESCs. W4 mESC clones were seeded on cover slips and fixed after 48 h with 4 % formaldehyde and incubated afterwards with 50 mM ammonium chloride. Cells were permeabilized with 0.2 % Triton X-100 and blocked with 1 % BSA (in PBS). All antibodies were incubated in blocking solution containing 0.01 % saponin (Sigma-Aldrich GmbH, Germany) in 1 % BSA, primary antibodies for 1 h at RT and secondary antibodies for 40 min at RT. Antibody staining was performed one after another to avoid cross-reactivity. The following antibodies were used for mESC clones, primary antibodies: Nkx.2.5 (Sc8697, Santa Cruz Biotechnology Inc., USA; 1:100), Oct4 (ab19857, Abcam, UK; 1:200), and secondary antibodies: Alexa Fluor® 568 donkey anti-goat (A-11057, Life Technologies, USA, 1:300) and Alexa Fluor® 568 goat anti-rabbit (A11011, Life Technologies, USA, 1:300). Additionally, the cells were counterstained with Phalloidin-FITC (ALX-350-268-MC01, Enzo Life Science, Inc., USA, 1:500). Samples were mounted with Fluoroshield™ with DAPI (Sigma-Aldrich, Germany) for nuclei staining. Images were performed using ELYRA PS.1 LSM 780 confocal microscope (Carl Zeiss, Germany) and ZEN2011 software (Carl Zeiss, Germany).

Visualization of cardiogenic-derived single cells. Cardiogenic-derived single cells were treated in as described above. The following antibodies were used for single cells, primary antibodies: Cx43 (Connexin43; Sc9059, Santa Cruz Biotechnology, Inc., USA, 1:100), cTnT (cardiac troponin T; ab115134, Abcam, UK; 1:100), HCN4 (; APC-052, Alomone labs, Israel; 1:100), Myh6 (Myosin heavy chain α; ab15, Abcam, UK; 1:100), Myh7 (Myosin heavy chain β; M8421, Sigma-Aldrich GmbH, Germany; 1:500), α-actinin (ab9465, Abcam, UK; 1:100), secondary antibodies: Alexa Fluor® 568 donkey anti-goat (A11036, Life Technologies, USA; 1:300), Alexa Fluor® 647 goat anti-mouse (A21235, Life Technologies, USA, 1:300), Alexa Fluor® 488 donkey anti-rabbit (A21206, Life Technologies, USA; 1:300) and Alexa Fluor® 568 goat anti-rabbit  (A11011, Life Technologies, USA; 1:300). Samples were mounted with Fluoroshield™ with DAPI for nuclei staining. Images were performed using the superresolution technology structured illumination microscopy (SIM). Therefore, sample images were recorded with the 100x alpha 1.46 Plan Apochromat® (Carl Zeiss) objective with oil immersion. Z-stacks were recorded in SIM mode with a 16 bit depth at 5 angles, with averaging 4; 23 µm grid was applied for 405 laser line, 34 µm – 488, 42 µm – 561, 51 µm – 633. The obtained SI raw datasets were computationally reconstructed by ZEN software and presented at alignment of Maximum projections.



Live cell imaging

Live cell imaging was performed using ELYRA PS.1 LSM 780 confocal microscope and ZEN2011 software (Carl Zeiss). Cells were incubated during observation at 37 °C.

Analysis of beating frequencies. The spontaneous beating frequency of cardiogenic-derived single cells was analyzed at day 25 of differentiation. Therefore, cells were plated after dissociation on gelatine coated 24 well plates and kept in differentiation culture until observation. The recording was performed using 10-fold optical magnification and 20 images per second. After recording, mean region of interest (mROI) was specified and the varying light intensity at the mROI determined. The displayed peaks equates to a beat of the cell.

Physiological investigations. Using the aforementioned method for the determination of spontaneous beating frequencies, cell characteristics were examined under different physiological conditions. However, only spontaneous beating single cells could be analyzed in terms of their physiological behavior. Single cells without own spontaneous beating were not included in the analysis.

Cardiogenic-derived single cells were evaluated under administration of the following reagents: Noradrenaline (1 µM), Acetylcholine (10 µM), Mibefradil (10 µM), Verapamil (10 µM), Tetrodotoxin (10 µM) and potassium rich extracellular fluid (20 mM). First, beating frequency was determined as baseline (t0). Second recording comprised a period of 2 minutes to include 2 time points: 10 s after application (t1) and 1 min after application (t2) of the respective reagent. The closing record was performed 5 min after application (t3). Findings represent the differences between the respective time points after application to the baseline beating frequency.



Statistics

Statistical analyses were performed using OriginPRO 2016G (OriginLab Corporation, USA). All data are reported as mean ± SEM. Student’s t-test and One Way Analysis of Variance (ANOVA) were performed for multiple comparisons with Bonferroni post hoc test. P < 0.05 was considered statistically significant.





Results



Generation of stably Nkx2.5 overexpressing mES cells

To achieve a ventricular differentiation of mESCs, the lineage specific TF Nkx2.5 of human origin was used for its better traceability in murine cells. An exogenous overexpression was achieved by introducing pEF-DEST51-hNkx2.5 in stably Mhy6-puro/PGKhygro containing mESCs [31]. In order to maintain integrity of both plasmids, selection pressure was applied using hygromycin and blasticidin in respective concentrations (see methods). Confirmation of Nkx2.5 overexpression (Fig. 1B) and  pluripotency of the cells (Fig. 1A, C) were performed after continuous cultivation with leukemia inhibitory factor (LIF) [36, 37] and an intermediate co-cultivation for seven days with mitotically inactivated murine embryonic fibroblasts derived from the line SNL 76/7 [38]; referred to as day 0 of differentiation. As demonstrated by qPCR (Fig. 1A) and immunostaining (Fig. 1C), overexpression of Nkx2.5 did not significantly influence the expression of typical pluripotency markers (Oct4, Nanog, Fut4) of mESCs. Moreover, analysis of early cardiac markers (MesP1, Isl1) revealed that Nkx2.5 overexpression alone is not sufficient to induce cardiogenic differentiation. Furthermore, mESCs retained an active cell cycle, as evident from the appearance of pro-, ana- and telophase of the mitotic phase (data not shown).

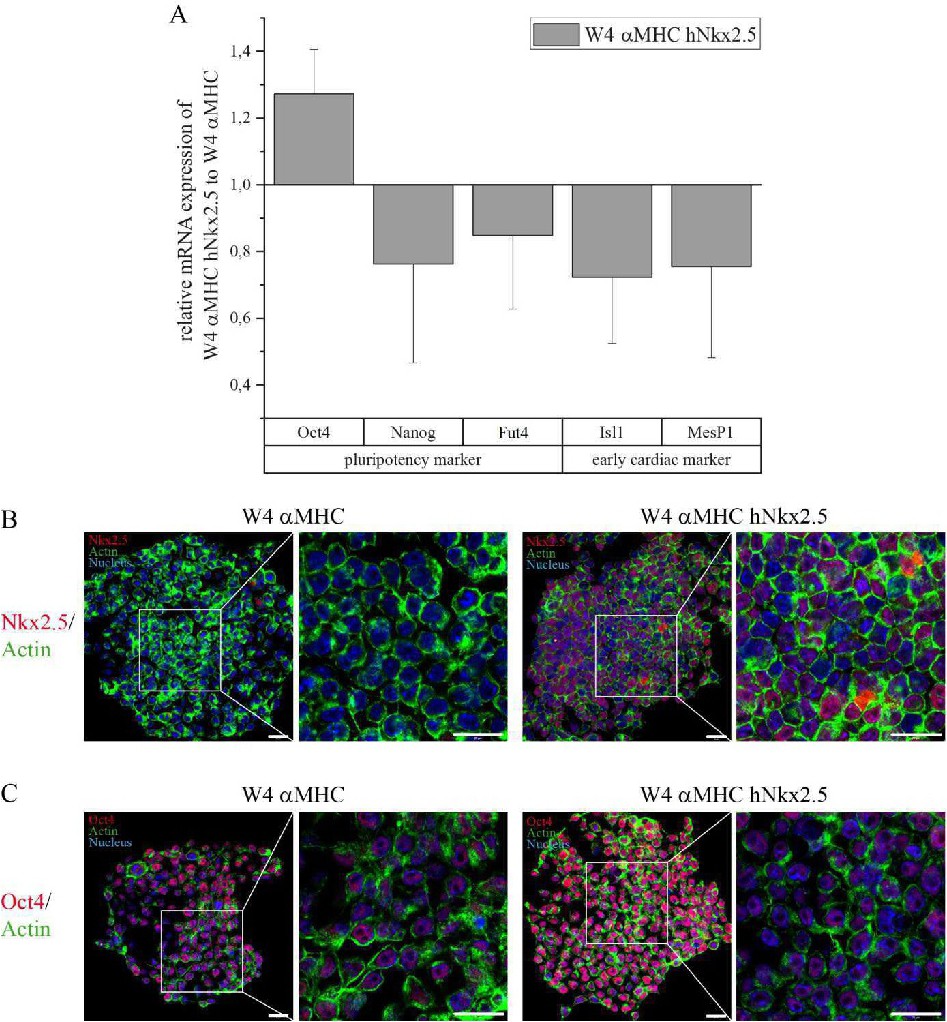

Fig. 1. Description of the original mES cell state: Marker expression of W4 αMHC and W4 αMHC hNkx2.5 clones on day 0 of differentiation. (A) Relative expression of pluripotency and early cardiac markers performed by qPCR. Values relativized to W4 αMHC (set: 1). Values are presented as mean ± SEM; n=3; statistic was performed as t-test. (B) Confirmation of Nkx2.5 overexpression on protein level using immunostaining of actin (green) and exogenous Nkx2.5 (red), scale bar: 20 µm. (C) Confirmation of pluripotency on protein level using immunostaining of actin (green) and Oct4 (red), scale bar: 20 µm.



Optimization of cell culture conditions

In order to achieve the maximum cell yield, the protocol by Jung et al. [34] was modified to promote the differentiation into a ventricular cell subtype. Therefor ascorbic acid (AA) was additionally supplied with the medium to promote cardiogenesis [39, 40]. In addition, the influence of oxygen was examined by modulation of oxygen supply after EB formation. At 20% oxygen, an increased beating activity, starting at day 8, was observed during differentiation - yet, without a significant difference between the three tested specimens (Fig. 2A). Under 1 % oxygen supply, cells showed a similar beating behavior (Fig. 2B), although the Nkx2.5 overexpressing clone displayed slightly more beating areas per EB over the time which became statistically significant from day 12 onward.  However, the time point of αMHC-selection had a remarkable impact on the single cell amount at day 25 of differentiation (Fig. 2C, D). For this purpose, experiments with different starting time points of antibiotic (puromycin) treatment were tested, particularly day 7, 9, 11, 13 and 15 of differentiation under 1 % and 20 % O2. These revealed that puromycin selection under both oxygen conditions initiated at day 7 of differentiation, followed by an additional dissociation step on day 11, led to a ~10-fold (20 % O2) larger population showing α-MHC promoter activity in the Nkx2.5 overexpressing clone derived cells as compared to controls (Fig. 2C) as well as ~5-fold larger population under 1 % oxygen (Fig. 2D). The number of CMs obtained from one input PSC was ~8times higher in cells overexpressing Nkx2.5 (αMHC -Nkx2.5+ vs.  αMHC: 0.05 vs. 0.0063). Furthermore, to determine the percentual content of CM-like cells within these cultures, immunofluorescent stainings of α-actinin (green) and troponin T (red) at day 25 of differentiation were performed (Fig. 2E). Quantitative analysis revealed that ~98% of all cells in the culture were positive for these cardiac markers (Table 1). Moreover, fluorescence microscopy also demonstrated well-organized sarcomere structures in Nkx2.5 overexpressing CMs (Fig. 2F).

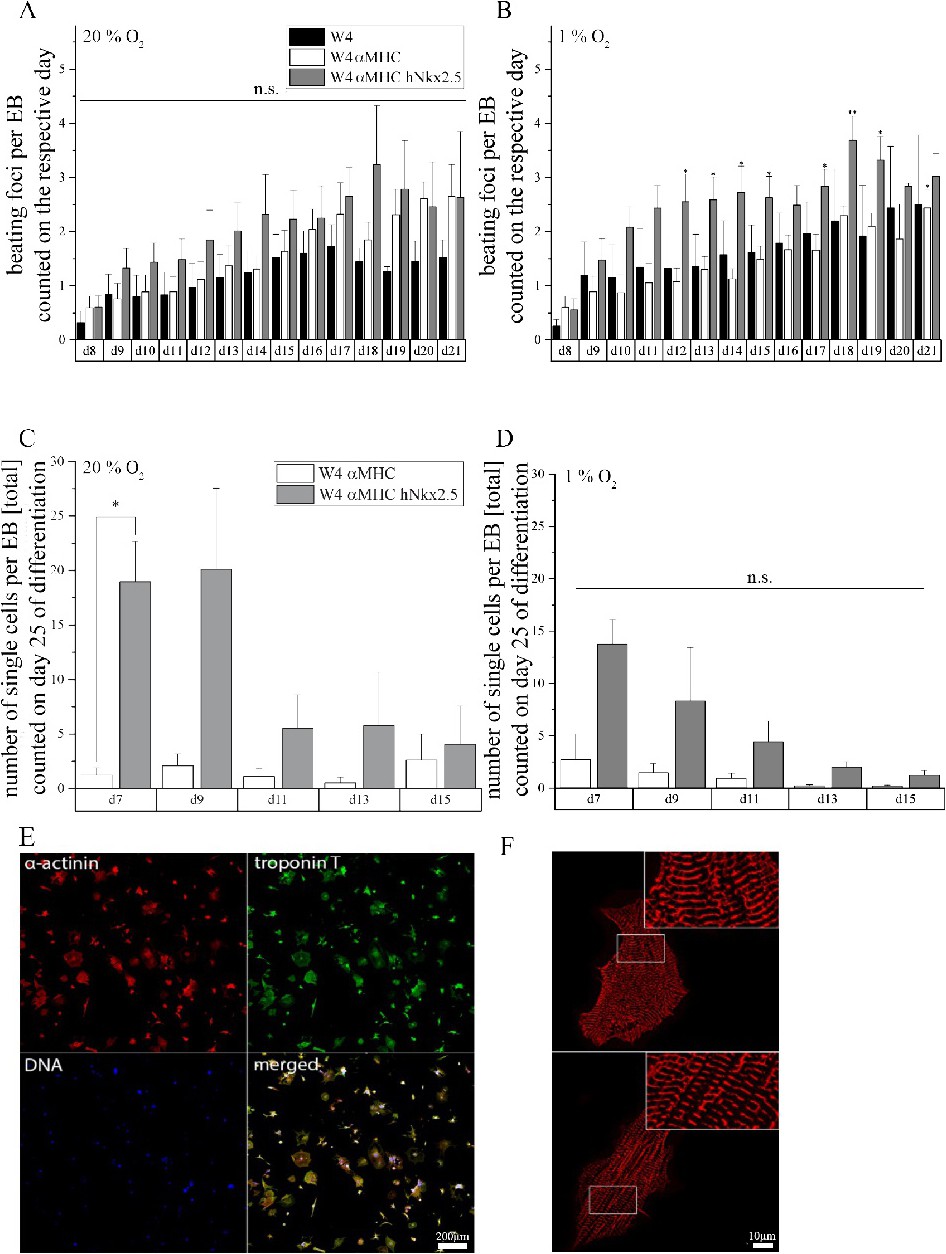

Fig. 2. Optimization process during cardiogenic differentiation: Quantitative determination of spontaneously beating areas per EB (n=7 (d8-d17), n=3 (d18-d21)) under 20 % O2 (A) and 1 % O2 oxygen conditions. Quantitative determination of the optimal time point to initiate antibiotic αMHC-selection with respect to maximum cell yields under 20 % O2 (C) and 1 % O2 oxygen conditions (D); therefore cells were treated on different time points with puromycin and single cell number was subsequently determined at day 25 of differentiation (n=3). Values are presented as mean ± SEM; statistics were performed as multiple comparison of mean within one specimen to compare time points - no significance calculated; and t-test to compare both specimen within one time point; *p ≤ 0.05. (E, F) Immunofluorescent stainings for α-actinin (green) and troponin T (red) of antibiotic selected and Nkx2.5 programmed cells at day 25 of differentiation. Nuclei are stained with DAPI (blue). Almost all cells in the culture are double-positive for the cardiac markers. (G) Representative immunoflourescent images of Nkx2.5 programmed cells, showing well-organized sarcomere structures.

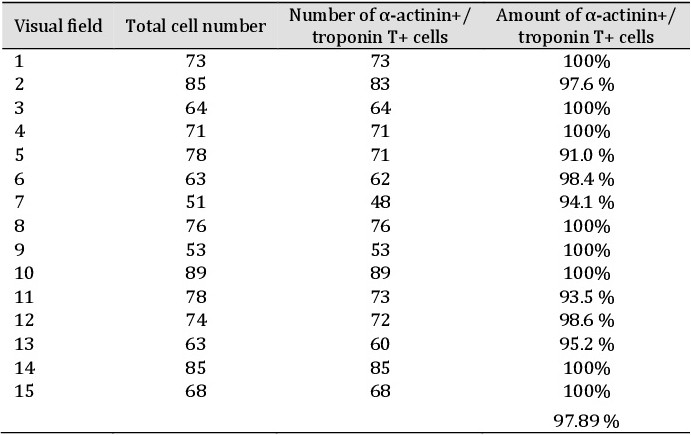

Table 1. Quantitative analysis of α-actinin+/troponin T+ cells: Microscopic analysis of fluorescent images showed that ~98% of all cells in the culture were positive for the cardiac markers α-actinin and troponin T. Cells were labelled with α-actinin and troponin T antibodies and 1071 cells were analyzed by fluorescence microscopy



On the basis of these overall data, subsequent experiments were performed under 20 % oxygen conditions from day 0 of differentiation onward. Moreover, murine embryonic stem cells (W4), without any genetic manipulation confirm the functionality of αMHC selection methodology, as these cells entirely died during antibiotic treatment.

Generally, Nkx.5 programmed and control cells gave rise to comparable cell shapes (Fig. 3), whereby a distinction can be made between three morphologically different groups of beating cells: (i) spindle- and spider-like cells [34], (ii) large round and large square-shaped cells and (iii) an undefined cell type including large longitudinal and small round cell shapes. Spindle cells are characterized by a thin spindle-shape with two opposed extensions with an approximately cell size of 16 x 66 µm (n=12) while spider cells possess five or more extensions in all directions as described before by Jung et al., 2014 [40]. Moreover, the spider cells had a bigger size (56 x 88 µm) (n=3) while both cell types displayed a raised cell body. The second morphological group is defined by a flat round or squared shape, with or without extensions, they are the largest population with a cell size of approximately 94 x 118 µm (n=9). Cells which do not match the aforementioned categories were named as undefined cells, this includes beating cells which had adopted a small rounded shape (23 x 31 µm; n=7) and underwent apoptosis within the next week.  Moreover, the group of undefined cells contained larger longitudinal specimen with a size of approximately 34 x 59 µm (n=21).

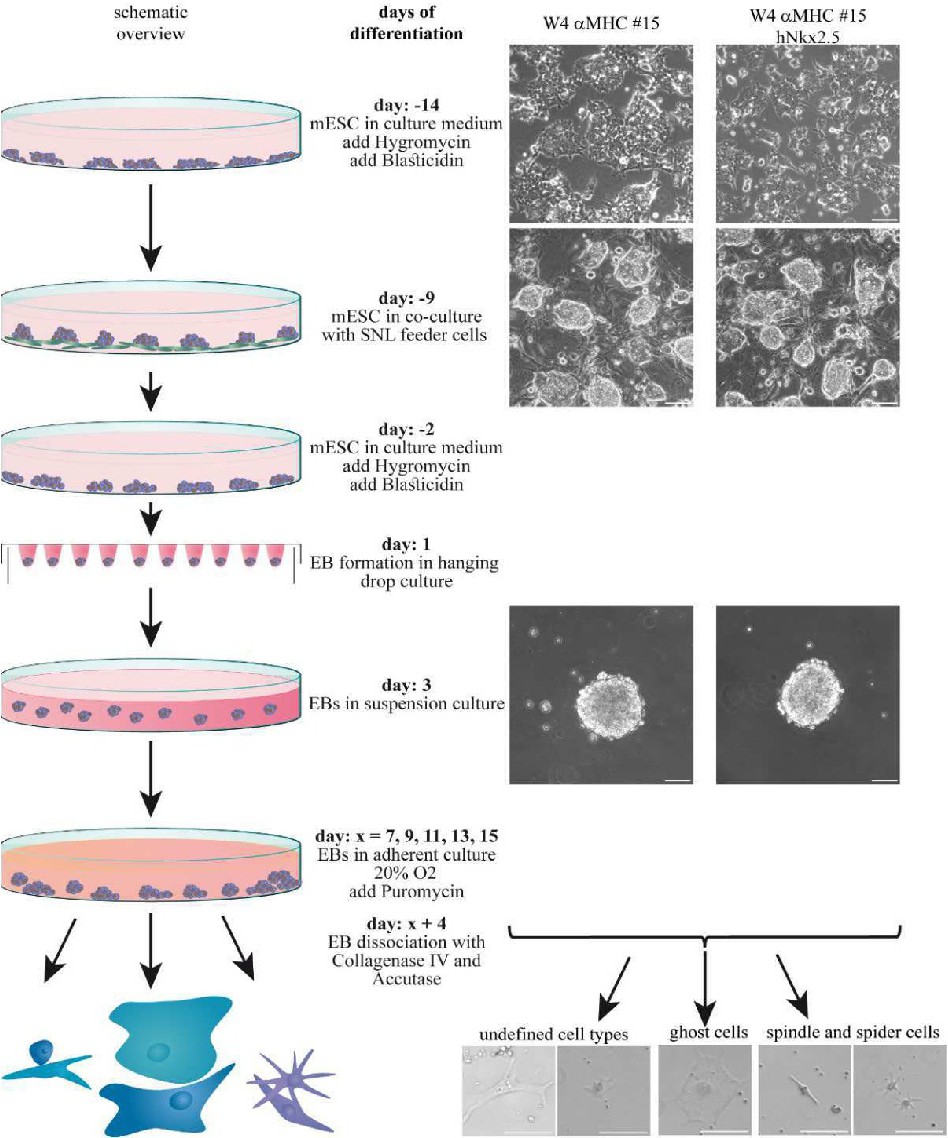

Fig. 3. Cardiogenic differentiation protocol of mESCs: Schematic overview of the cardiogenic differentiation protocol and representative cell pictures for murine ES cells using: W4, W4 αMHC and W4 αMHC hNkx2.5 clones. mESCs were cultivated in LIF supplemented medium with appropriate antibiotic pressure (W4 αMHC: hygromycin; W4 αMHC hNkx2.5: hygromycin and blasticidin). Afterwards, cells were co-cultured with mitotically inactivated murine STO cell line-derived SNL 76/7 (73). Prior to differentiation, cells were detached from feeder cells, and subsequently cultured for additional 2 days with appropriate antibiotic pressure. Specific cardiac differentiation was induced through EB formation and subsequent culturing in differentiation medium. αMHC-selection using puromycin was induced at various points in time (day: x = 7, 9, 11, 13, 15), respectively. A dissociation step 4 days after selection (day: x + 4) led to the generation of single cells with the following morphogenic classification: spindle and spider like cells, large round and large square cells or an undefined cell population including large longitudinal and small round cells. There are no living cells present in the W4 population after puromycin treatment scale bar: 100 µm.



Specific myogenic characteristics of obtained CM-like cells

Generated CM-like single cells exhibit mRNA encoding the general muscle marker cTnT as well as typical ventricular markers such as Myl2 (both more then 2-fold higher expressed compared to control) and Cx43 (Fig. 4A).

Yet, the occurrence of the funny channel Hcn4, specifically expressed in the first heart field (FHF) and cardiac conduction system cells, is an evidence for the still immature phenotype of the cells [2–5]. Notably, thereby Nkx2.5 overexpression led to a significant reduction of Hcn4 mRNA compared to the control. Thus, αMHC selection engenders a pure CM cell population and the additional Nkx2.5 overexpression further enhances ventricular maturation. In addition, the cells displayed expression of structural proteins more typical for ventricular CMs (α-actinin, cTnT, Myh6, Myh7) (Fig. 4B). They demonstrate both intertwining filament structures: the thin actin filament and the thick myosin filament; however, only Nkx2.5 overexpressing clones displayed both isoforms, α- and β-MHC, indicating that these cells correspond to a late fetal developmental stage [41, 42].

Spontaneous beating activity of obtained CM-like cells to verify functional parameters, beating frequencies (Fig. 5) and their response to subtype specific pharmacological substances (Fig. 6A-E) were analyzed in comparison to murine neonatal CMs (mnCM). The majority features a spontaneous beating frequency of 0-426 beats min-1. Control cells also showed highly varying beating frequencies (36-378 beats min-1) reflecting their heterogeneous differentiation processes, whereas mnCM (30-174 beats min-1) were beating at significantly slower rates. Moreover, subdivision into morphological different cell types displayed a significant distinction in beating frequencies (Fig. 5B).  The square cells exhibited the slowest average beating frequencies for control as well as Nkx2.5 programmed cells whereby only the latter yielded αMHC promoter-selected CM-like cells which did not contract spontaneously, Overall, the beating frequencies of this group ranged from 0-228 beats min-1.

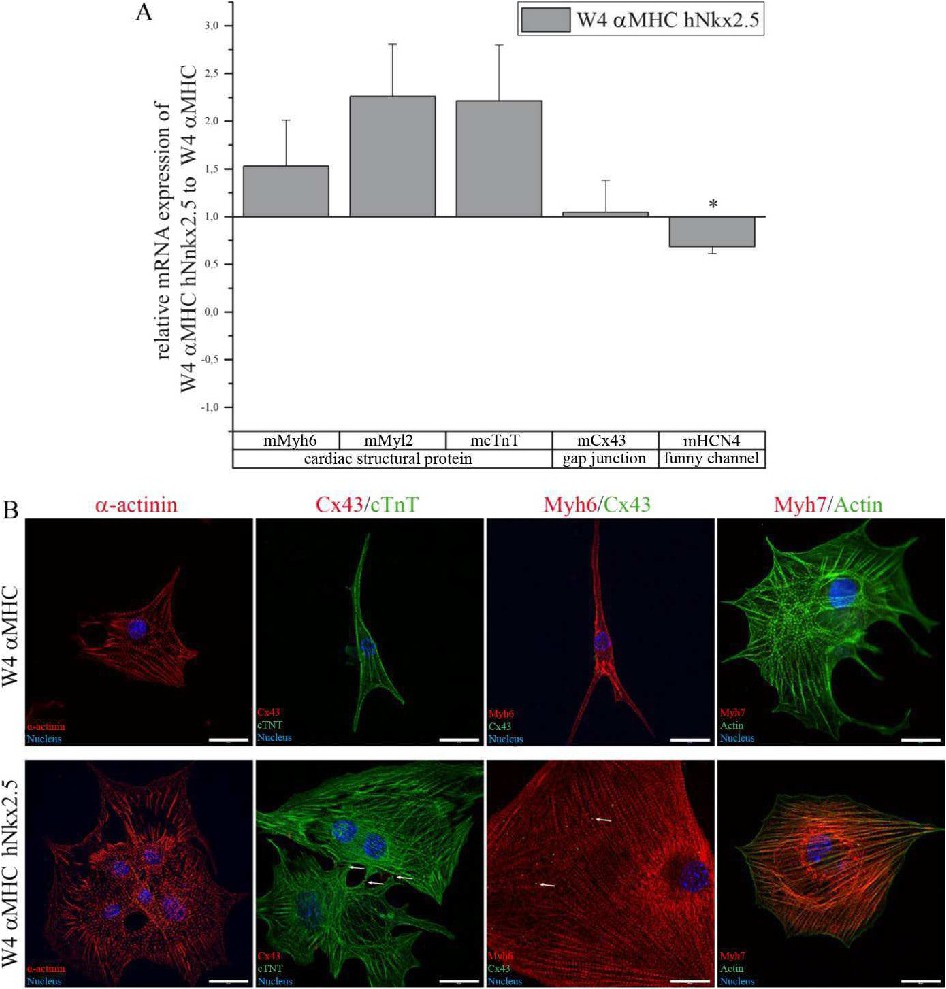

Fig. 4. Cardiogenic marker expression: Analysis of cardiogenic marker expression on mRNA (A) and protein (B) levels by comparison of W4 αMHC and W4 αMHC hNkx2.5 on day 25 of differentiation. (A) Relative expression of cardiac structural and gap junction proteins as well as funny channel marker performed by qPCR. Values normalized to mHprt and mPolr2a and relativized to W4 αMHC (set: 1). Values are presented as mean ± SEM; n=3; statistic was performed as t-test, *p ≤ 0.05. (B) Immunostaining of 1: α-actinin (red) , 2: Cx43 (red, arrow) and cTnT (green), 3: Myh6 (red) and Cx43 (green, arrow) and 4: Myh7 (red) and Actin (green) with counterstaining of nuclei (blue). Scale bar: 20 μm.

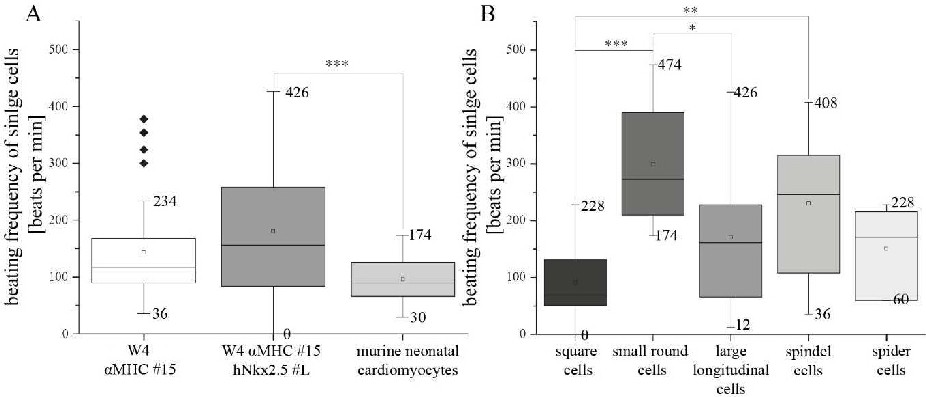

Fig. 5. Beating frequencies of obtained CM-like single cells: Analysis of beating frequencies of CM-like single cells on day 25 of differentiation and murine neonatal cardiomyocytes. (A) Beating frequencies of single cells (excluding small round dying cells) as well as murine neonatal CM and (B) further W4 αMHC hNkx2.5 subdivision on basis of morphological distinction (including small round dying cells) displayed as boxplots, with 25 %- and 75 %-quantil, coeff. 1.5, outliers marked, horizontal line indicates media, square indicates mean; A: n=38, 88, 32 and B: n=16, 8, 33, 16, 6. Statistics were performed as multiple comparison of mean (ANOVA), ***p ≤ 0.001.

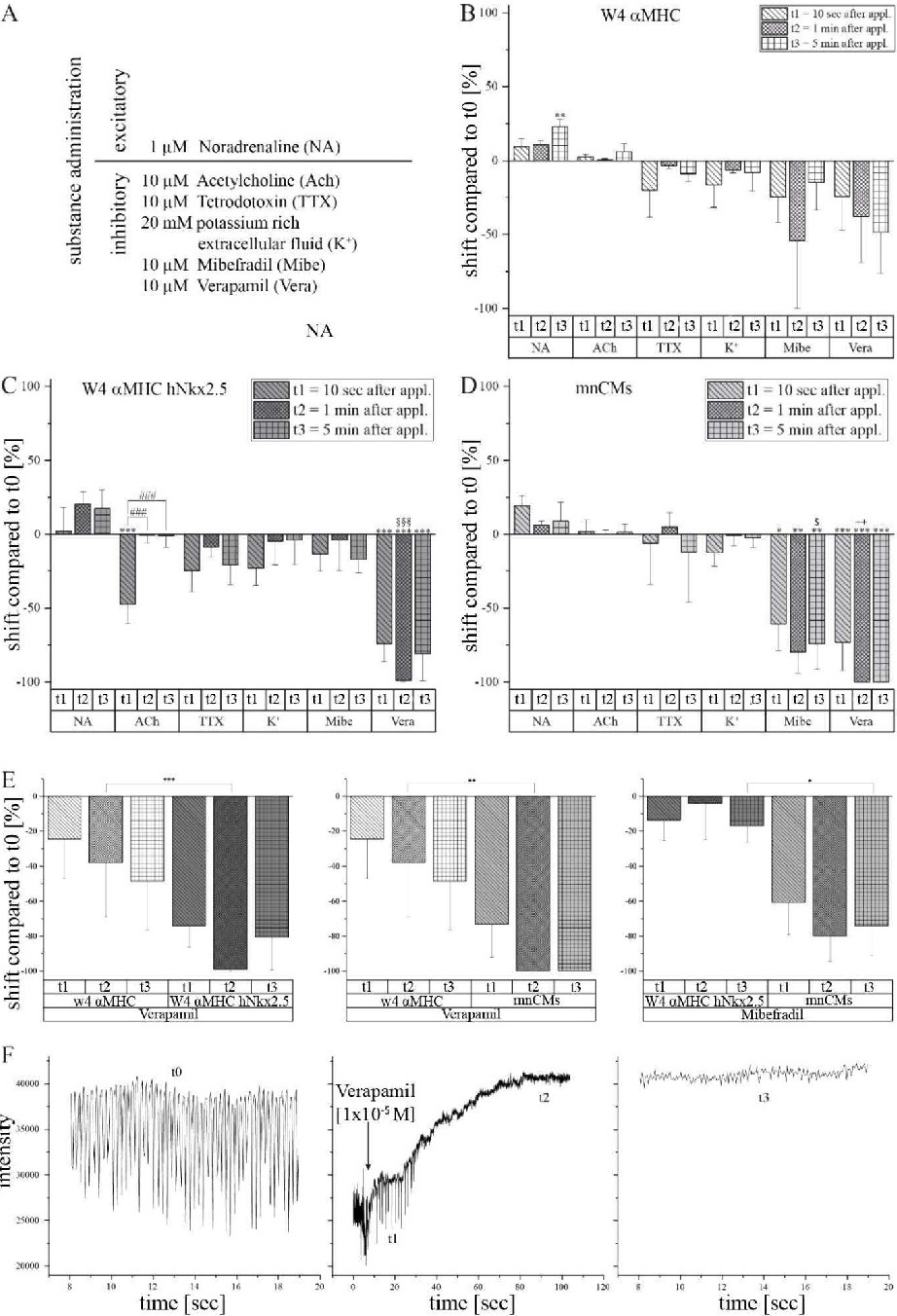

Fig. 6. Response of beating frequencies to pharmacological substance administration: Analysis of beating frequencies after administration of (A) indicated amounts of inhibitory and excitatory pharmacological substances on obtained CM-like single cells of (B) W4 αMHC, (C) W4 αMHC hNkx2.5 and (D) monolayer murine neonatal cardiomyocytes in relation to baseline frequencies recorded for every individual cell (t0). (E) separate statistical overview of Verapamil and Mibefradil to illustrate significant differences. (F) Representative examples for beating frequencies of a W4 αMHC hNkx2.5 programmed single cell before (t0) and after (t1, t2, t3) Verapamil application using ELYRA PS.1 LSM 780 confocal microscope and ZEN2011 software. Values are presented as mean ± SEM; n=3-17; statistics were performed as multiple comparison of mean, */#/$ p ≤ 0.05, **/##/++ p ≤ 0.01, ***/###/§§§ p ≤ 0.001. (*: comparison to t0, #: comparison within all time points (t1, t2, t3), $: comparison W4 αMHC hNkx2.5 and mnCMs, ++: comparison W4 αMHC and mnCMs, §§§: comparison W4 αMHC and W4 αMHC hNkx2.5).



Response of CM-like cells on pharmacological substance administration

Next, we addressed the impact of excitatory (1 µM Noradrenaline, NA) and inhibitory (10 µM Acetylcholine, ACh; 10 µM Tetrodotoxin, TTX; 20 mM potassium rich extracellular fluid, K+; 10 µM Mibefradil, Mibe; 10 µM Verapamil, Vera) pharmacological substance administrations referring to specific ion channel availability (Fig. 6A). A representative depiction of the recording strategy is demonstrated in Fig. 6F using a Nkx2.5 programmed single cell under Verapamil administration. It became apparent that CM-like cells derived from the W4 αMHC clone represent an inconsistent population, reacting to each substance with a large standard deviation. Similarly, also mnCM consist of a heterogeneous population reacting on the one hand moderately significant to Mibefradil, an inhibitor of T-type calcium channels typically expressed in pacemaker cells, as well as highly significant to Verapamil, an inhibitor of L-type calcium channels typically expressed in cells of the contractile system (Fig. 6B-E). A significant difference is obvious in the response to Verapamil, between W4 αMHC and CM-like cells derived from the Nkx2.5 overexpressing clone as well as between W4 αMHC and mnCMs (Fig. 6E). Moreover, the latter differ additionally in reaction on Mibefradil. However, the analyzed cells showed only a slight response to essential channel modulators NA, ACh, TTX and K+. Moreover, we observed a complete stop of beating activities at higher concentrations (data not shown). The cells responded significantly to acetylcholine which affects the ligand-dependent muscarinic acetylcholine receptor type M2. In adult hearts, this receptor is abundant in the atria as well as in the sinoatrial- and atrioventricular nodes, where it is involved in vagal regulation of the heart rate [43, 44]. On the other hand, the response of CM-like cells derived from the Nkx2.5 overexpressing clone argues for an early ventricular subtype as the significant reduction of the beating frequency after application of Verapamil indicates a specific L-type calcium channel occurrence.





Discussion



The necessity of continually enhancing the knowledge of molecular and cellular mechanisms underlying cardiovascular development is of great relevance, considering the insufficient therapies for treatment of heart failure. The human heart cannot accomplish a functional repair due to its negligible myocardial regeneration capacity [45, 46] after the severe loss of CM e.g. after a myocardial infarction (MI) [47, 48]. Therefore, a major intention is the regeneration of the myocardium using various approaches, such as cell replacement of the affected tissue. Moreover, the availability of such cells is a crucial prerequisite for novel drug testing approaches in vitro which may allow a significant reduction of animal experiments in the future.

Currently, true terminal cardiac differentiation of PSCs into fully mature CMs is still unfeasible in vitro [49], therefore major efforts should be undertaken to improve purity, yield and safety of physiologically functional PSC-derived CM. In this regard, commercially available PSC-derived CMs, such as murine Cor.At or human Cor.4U as well as human ventricular specific vCor.4U (all Axiogenesis AG, Germany) display indeed a highly pure cardiac population; however, even the latter contain no more than 90 % ventricular cells with remaining 10 % atrial and pacemaker cells as indicated by manual patch clamping using E-4031, a blocker of potassium channels (see the company`s website). Overall, these promotor-selected cell populations are merely usable for research and drug development applications due to their arrhythmogenic potential as well as their stably integrated selection cassettes. Therefore, it is of major interest to identify suitable differentiation methodologies and stepwise protocol optimization initially using murine ESCs as proper basis for subsequent translation to more difficult available human cell cultures.

There are clear evidences that an exogenous overexpression of specific cardiac TFs such as Nkx2.5 direct the transition of ESCs toward a ventricular subtype identity [22, 30]. Furthermore, small molecules such as AA promote cardiomyogenesis of PSCs [39], however, further investigations are needed to clarify the underlying mechanisms and the impact of such modulators. Studies demonstrated an impact of AA on epigenetic regulators [50, 51] thereby effecting genes involved in cancer, cellular growth, proliferation and tissue development [52]. In addition, data from Bartsch et al. [53] demonstrate an influence of AA on reactive oxygen species (ROS) and nitric oxide which confirms a ROS and NADPH oxidase mediated stimulation of ESC-derived CM [54]. Further studies confirm this positive effect of AA on cardiac differentiation [39, 40].

In order to increase the purity of cardiac programmed cells [30], we included an antibiotic selection step in our protocol, using puromycin resistance under control of the αMHC promotor [31, 34, 55]. Through this, we could improve the protocol from David et al., 2009 from 28 % CM-like cells (with only ~22 % ventricular-like cells in total cell population) to a 100 % pure αMHC+ CM-like population. In addition, Nkx2.5 overexpression supports ventricular maturation. Initially, the optimal time point of selection was evaluated to achieve the best recovery, with the success that a 9.77-fold higher amount of CM-like cells can be achieved using a time point immediately following the suspension culture period. This clearly underlines the fact that the programming factor Nkx2.5 forces differentiating pluripotent cells into cardiomyocytic lineage as shown previously [30].

Our morphological observations indicate an immature phenotype of single cells at day 25 of differentiation. Thereby,  large round and large square cells as well as large longitudinal  cells rather show similarities to typically round- or polygonal-shaped fetal CM than to elongated mature CM [56], whereas spindle- and spider-like cells resemble previously described single cell morphologies of programmed nodal cells [34]. Moreover, the transition to a binucleate phenotype was not yet initiated. The mononucleated state enables CM growth during early heart development [57] and changes rapidly over a postnatal period of 1-2 weeks in rodents to a non-dividing terminally differentiated binucleate phenotype [58], thus 90 % of adult ventricular CM are binucleated [59].

However, the exogenous overexpression of Nkx2.5 indeed directs the cells towards a ventricular subtype, indicated by a better organized sarcomeric structure of myofibrils as well as by gene expression patterns of ventricular specific structural proteins; however, not significantly different to control cells. They demonstrate intertwining filament structures, the thin actin filament as well as two isoforms of thick myosin filaments. Nonetheless, only W4 αMHC hNkx2.5 display distinct striped expression of α-myosin as well as β-myosin in co-localization with actin. The distribution of the ventricular myosin isoforms is temporally regulated during development. Whereas α-MHC is predominantly expressed in adult hearts and β-MHC abundant in late fetal development in species like mouse and rat [41, 42, 60], the distribution is reverted in mammals such as rabbits and pigs: α-MHC is only transiently predominantly expressed neonatally and β-MHC returns after three weeks and is most abundant in adult hearts [60]. Furthermore, adult dogs, cattles and humans express primarily the β-MHC isoform [60]. Since both isoforms are partially present in our ventricular-like programmed CMs, it can be assumed that these cells are still in a late embryonic stage. In addition, α- and βMHC isoforms have a varying impact on actin filament activation through cTnT [61], which also lead to a different calcium sensitivity and heart rates. Moreover, αMHC exhibit a high Ca2+-ATPase activity, whereby β-MHC exhibit a low Ca2+-ATPase activity [41, 62]. This and other reasons engender cells with fast cycling αMHC isoforms [42] which have fast heart rates (650 – 800 bpm, [63]) and slow cycling βMHC isoforms [42] which have slow heart rates (60 – 120 bpm, [63]). Thus, subdivision into morphological different populations exhibit a significant difference, whereby large square and large round cells are the slowest population which goes along with the observation of βMHC expression detected in this cells. Furthermore, the cells express cardiac specific markers on RNA as well as protein levels [56], thus confirming earlier observations, especially a significant lower expression of the nodal specific funny channel Hcn4 [30].

Since electrophysiological investigations have already been performed with ESC-derived Nkx2.5 overexpressing cells [30], an alternative and supplementary approach, the response to pharmacological substances was examined, addressing the beating frequencies of CM-like cells. Recorded beating frequencies of all cells under investigation (including freshly isolated mnCM) are in median considerably slower than mouse heart rates (range between 500 – 700 beats min-1) [64, 65] whereby, W4 αMHC Nkx2.5 derived CM-like cells display the broadest range of beating frequencies. Moreover, they seem to possess a calcium channel specification as they respond significantly to the channel antagonist verapamil, a phenylacylamine which inhibits L-type as well as T-type Ca2+-channels [66], leading to a complete stop of beating. This reaction distinguished them with high significance from control cells, which endorse a channel specification triggered by our differentiation procedure.

In addition, they only respond moderately to Mibefradil, an antagonist which is more selective and preferentially blocks T-type Ca2+-channel, 10- to 15-fold [67], predominantly expressed in sinoatrial nodal cells in the adult heart and only functionally expressed during embryonic development [68].

It can therefore be concluded that a forced exogenous overexpression of the early cardiovascular TF Nkx2.5 along with a cardiogenic differentiation and selection protocol does strongly promote ventricular subtype identity.

Although overexpression of Nkx2.5 promotes the development towards a ventricular phenotype the overall yield of our differentiation protocol is still at a quite low level, giving a PSC / CM ratio of 1:0.05 (Fig. 2C, D). In this regard, a comparison of our cell yields with other published protocols is difficult since most studies lack detailed information about the number of input PSCs and obtained CMs. Yet, three groups did report PSC / CM ratios between 1:2 and 1:200 but did not focus on programming of specific cardiac subtypes as the respective papers addressed enhanced cardiac differentiation in general e.g. by using bioreactors [69–71]. Transference of our differentiation protocol to similar mass production approaches will be a prerequisite for translational applications of these programming derived subtype CMs.

Murine as well as human PSC derived CMs based on antibiotic selection in large scale bioreactors are already commercially available. However, these generally represent random mixtures of CM subtypes. Therefore, while our data are based on a single murine ES cell line (W4), the approach will likely be rapidly transferable to other murine as well as human iPSC- and ESC-lines. A while ago, we had described generation of pure murine ESC derived pacemaker cells combining human Tbx3 based programming with antibiotic selection [34]. However, applying the Nkx2.5 based programming approach on another transgenic cell line would help to further validate our current differentiation protocol. Therefore, future work will be required to evaluate the applicability of our programming method to other cell culture systems. Ultimately, avoidance of any stably integrating programming as well as selection cassettes is of course highly desirable. In this regard, multiple cardiac differentiation protocols have meanwhile been published [72–74]. It remains to be seen whether an ultimate protocol fully reproducible between labs in the field as well as between different cell lines will emerge. On the other hand, avoidance of stable introduction of programming factor DNA constructs could be achieved via use of modified mRNA or non-integrating viral vectors [72–74].
