Empagliflozin and Dapagliflozin Reduce ROS Generation and Restore NO Bioavailability in Tumor Necrosis Factor α-Stimulated Human Coronary Arterial Endothelial Cells



Laween Uthmana Anna Homayra,b Rio P. Junic Eva L. Spina

Raphaela Kerindongoa Marleen Boomsmaa Markus W. Hollmanna

Benedikt Preckela Pieter Koolwijkc Victor W.M. van Hinsberghc

Coert J. Zuurbiera Martin Albrechtb Nina C. Webera



aDepartment of Anesthesiology, Laboratory of Experimental Intensive Care and Anesthesiology (L.E.I.C.A.), Amsterdam UMC, location Academic Medical Centre (AMC), University of Amsterdam, Amsterdam Cardiovascular Sciences, Amsterdam, the Netherlands, bDepartment of Anesthesiology and Intensive Care Medicine, UKSH, Campus Kiel, Kiel, Germany, cDepartment of Physiology, Amsterdam UMC, location VU medical center (VUMC), VU University, Amsterdam Cardiovascular Sciences, Amsterdam, the Netherlands









Key Words

SGLT2 inhibitors Inflammation Endothelial cell Empagliflozin TNFα



Abstract

Background/Aims: Heart failure is characterized by chronic low-grade vascular inflammation, which in itself can lead to endothelial dysfunction. Clinical trials showed reductions in heart failure-related hospitalizations of type 2 diabetic patients using sodium glucose co-transporter 2 inhibitors (SGLT2is). Whether and how SGLT2is directly affect the endothelium under inflammatory conditions is not completely understood. The aim of the study was to investigate whether the SGLT2i Empagliflozin (EMPA) and Dapagliflozin (DAPA) reduce tumor necrosis factor α (TNFα) induced endothelial inflammation in vitro. Methods: Human coronary arterial endothelial cells (HCAECs) and human umbilical vein endothelial cells (HUVECs) were (pre-)incubated with 1 M EMPA or DAPA and subsequently exposed to 10 ng/ml TNFα. ROS and NO were measured using live cell imaging. Target proteins were either determined by infrared western blotting or fluorescence activated cell sorting (FACS). The connection between Cav-1 and eNOS was determined by co-immunoprecipitation. Results: Nitric oxide (NO) bioavailability was reduced by TNFα and both EMPA and DAPA restored NO levels in TNFα-stimulated HCAECs. Intracellular ROS was increased by TNFα, and this increase was completely abolished by EMPA and DAPA in HCAECs by means of live cell imaging. eNOS signaling was significantly disturbed after 24 h when cells were exposed to TNFα for 24h, yet the presence of both SGLT2is did not prevent this disruption. TNFα-induced enhanced permeability at t=24h was unaffected in HUVECs by EMPA. Similarly, adhesion molecule expression (VCAM-1 and ICAM-1) was elevated after 4h TNFα (1.5-5.5 fold increase of VCAM-1 and 4-12 fold increase of ICAM-1) but were unaffected by EMPA and DAPA in both cell types. Although we detected expression of SGLT2 protein levels, the fact that we could not silence this expression by means of siRNA and the mRNA levels of SGLT2 were not detectable in HCAECs, suggests aspecificity or our SGLT2 antibody and absence of SGLT2 in our cells. Conclusion: These data suggest that EMPA and DAPA rather restore NO bioavailability by inhibiting ROS generation than by affecting eNOS expression or signaling, barrier function and adhesion molecules expression in TNFα-induced endothelial cells. Furthermore, the observed effects cannot be ascribed to the inhibition of SGLT2 in endothelial cells.





Introduction



Type 2 diabetes (T2D) and heart failure have a bi-directional relationship, whereby the development and progression of one disease may impact the other. Both conditions promote a systemic pro-inflammatory state in the heart and vasculature. Insulin resistance has been associated with increased levels of circulating inflammatory factors, including tumor necrosis factor α (TNFα), which was linked to endothelial dysfunction [1]. TNFα, a 17 kDa cytokine, is released by different cell types, mainly leukocytes and other immune cells, as a response to systemic inflammation. TNFα signaling promotes endothelial dysfunction by negatively affecting NO bioavailability, endothelial nitric oxide synthase (eNOS) signaling, and increasing reactive oxygen species (ROS), permeability and adhesion molecules in the endothelium [26].

A novel class of glucose-lowering compounds targeting the kidney-specific sodium glucose co-transporter 2 (SGLT2) have been applied as a treatment strategy in T2D patients. Cardiovascular outcome trials show that empagliflozin (EMPA) effectively reduces cardiovascular-related death and that EMPA, dapagliflozin (DAPA) and canagliflozin (CANA) consistently reduce heart failure-related hospitalization in T2D patients [79]. The underlying mechanisms for the beneficial actions of SGLT2 inhibitors (SGLT2is) remain unclear. In vivo studies suggest anti-inflammatory actions of SGLT2is in the aortic valve, coronary microvascular endothelial cells, the kidney and the heart [1014]. However, these in vivo results cannot discriminate between anti-inflammatory actions of SGLT2is explained by systemic alterations or via a direct effect on cardiovascular cells. One of the first studies addressing direct anti-inflammatory effects of SGLT2is reported moderate reductions in adhesion molecule expression in TNFα treated endothelial cells at certain concentrations of DAPA [15]. EMPA has been reported to restore cell viability and ATP content in endothelial cells exposed to hypoxia reoxygenation injury [16]. A recent study by Mancini et al. reported anti-inflammatory properties of the SGLT2i CANA in IL-1β stimulated endothelial cells [17].

To date, the effects of the SGLT2is EMPA and DAPA in TNFα-stimulated endothelial cells, especially different cardiac endothelial cells is not completely understood [18]. EMPA, DAPA and CANA appear to act differently on endothelial cells. Due to the contradictory results with regard to the direct effects of SGLT2is in vascular inflammation [15, 17], it has been challenging to speculate on the direct endothelial cell effects of EMPA. Therefore, we aimed to examine whether the SGLT2is EMPA and DAPA ameliorate endothelial function in TNFα-treated primary human endothelial cells. We hypothesized that EMPA and DAPA attenuate TNFα-induced endothelial inflammation through direct actions on endothelial cells.





Materials and Methods



Cell culture

HCAECs were purchased from ATCC (Manassas, VA, USA) and grown in vascular basal cell medium with supplements (ATCC), containing 5 ng/ml vascular endothelial growth factor, 5 ng/ml epidermal growth factor, 5 ng/ml fibroblastic growth factor, 15 ng/ml insulin-like growth factor 1, 10 mM L-glutamine, 0.75 U/ml heparin sulfate, 1 g/ml hydrocortisone, 50 g/ml ascorbic acid, 1% amphotericin B, 1% penicillin-streptomycin and 10% FBS (TICO).

The isolation of Human umbilical vein endothelial cells (HUVECs) from human umbilical cords has been waived by the medical ethical committee: W12-167#12.17.096 Amsterdam, the Netherlands. HUVECs were freshly isolated from human umbilical cords as described previously [19, 20]. HUVECs were grown in endothelial cell growth medium (Promocell, Heidelberg, Germany) supplemented with 10% heat-inactivated fetal bovine serum (FBS; TICO Europe, Amstelveen, Netherlands), 1% amphotericin B solution (Gibco, Paisley, UK) and 1% penicillin-streptomycin (Sigma-Aldrich, St. Louis, MO, USA). HUVECs purity was determined and confirmed (Supplementary Fig. 1 for all supplemental material see www.cellphysiolbiochem.com) by flow cytometry analysis (FACS) of von Willebrand Factor (vWF) using Fluorescein (FITC)-labelled Anti-vWF antibody (Bio-Rad, Wiesbaden, Germany).

All cells were cultured in gelatin (0.75%) coated flasks and maintained in a humidified atmosphere of 5% carbon dioxide/95% air at 37C (CO2 Incubator Heracell 150i, Thermo Fisher Scientific, Waltham, MA, USA). Cultures were passaged by brief trypsinization using 0.05% Trypsin-EDTA (Gibco) and medium M199 (PAN biotech, Aidenbach, Germany) supplemented with 10% FBS, 1% amphotericin B, 1% penicillin-streptomycin and 1% L-glutamine. All experiments were initiated with HUVECs from passage 2 to 3 and HCAECs from passage 5 to 8 when they reached 80-90% confluency.

Before treatment, the cells were washed three times with phosphate buffered saline (PBS) and starved overnight by FBS reduction to 2% in the media. Experiments were carried out under three or four conditions: vehicle, EMPA alone, TNFα (10 ng/ml; Sigma Aldrich), and TNFα with SGLT2i treatment using EMPA (MedChem Express, NJ, USA). Since a previous study in TNFα stimulated HUVECs showed restored eNOS signaling and adhesion molecules expression in the presence of DAPA [15], DAPA (MedChem Express) was also investigated for several measurements. Thus, EMPA or DAPA 5 mM stock solutions dissolved in 100% DMSO was added in the medium to a final concentration of 1 M. Cells were pre-incubated with either EMPA, DAPA or vehicle (DMSO) containing media for 2 h. Subsequently, cells were treated with EMPA, DAPA or vehicle, either in the presence or absence of 10 ng/ml TNFα (Fig. 1).



Fig. 1. Experimental protocol outline. Cells were starved by serum reduction for 16h before pre-incubation with an SGLT2i (1 M) or vehicle (0.02% DMSO) for 2h. Stimulation with 10 ng/ml TNFα occurred for 4-24h. Cells were treated for 4h for detection of adhesion molecules (ICAM-1, VCAM-1) and intracellular ROS levels, for 6h and 24h for western blot analysis, ROS and NO. Permeability and cell staining were assessed after 24h.



Intracellular NO measurement

The measurement of nitric oxide level was performed as previously described [18]. In brief, exposure to 10ng/ml TNFα, 1μm EMPA or DAPA, and/or the combination thereof occurred for 6 h, during which the cells were incubated with copper-based NO probe (Cu2FL2E, 96-0396, Strem) for the final 45 min of treatment at a final concentration of 20M . The cells were then washed, followed by live-cell imaging at 37C and 5% CO2 environment on a Zeiss Axiovert 200M Marianas inverted fluorescence microscope (Intelligent Imaging Innovations) with a 63X oil-immersion objective. All fluorescent images were corrected for background signals. Quantification of fluorescent images of HCAECs and HUVECs were performed using digital cell masking software (Slidebook 6, Intelligent Imaging Innovations) and ImageJ, respectively.



ROS detection live cell imaging

The seeding of cells and measurement of ROS were conducted as described previously [18]. In brief, HCAECs were exposed to 10ng/ml TNFα, 1μm EMPA or DAPA, and/or the combination thereof for 6h, during which the cells were incubated with the fluorescent dye-based ROS probe for the last 30 min of treatment (CM-H2DCFDA, C6827, Thermo Fisher) at a final concentration of 5M in PBS (220/12257974/1110, Braun). Washing the cells was followed by live-cell imaging at 37C and 5% CO2 environment on a Zeiss Axiovert 200M Marianas inverted fluorescence microscope (Intelligent Imaging Innovations, Denver, CO, USA) with a 63X oil-immersion objective. All fluorescent images were corrected for background and negative controls. Quantification of fluorescent images of HCAECs and HUVECs were performed using digital cell masking software (Slidebook 6, Intelligent Imaging Innovations) and ImageJ, respectively.



ROS detection FACS assay

Intracellular ROS levels were also determined using ROS-ID Total ROS detection Kit (Enzo Lifescience Europe, Lausen, Switzerland) according to the suppliers instructions as described previously [21]. Briefly, cells were cultured in 6-well plates, harvested by brief trypsinization and centrifuged for 5 min at 31 g and 22 C. The pellet was resuspended in the provided washing buffer. Cell number was counted and adjusted using Z2 coulter counter (Beckman Coulter, Brea, CA, USA). One million cells were stained with 0.125 M of detection reagent for 30 min at 37oC. Samples were kept in the dark at room temperature until analysis. Measurements were carried out using FACS Canto II (Becton Dickinson, Franklin Lakes, NJ, USA) at 488 nm excitation wavelength and using a 585 and 530 nm emission band-pass filter. A minimum of 30000 events per sample was analyzed. Data processing was performed using FlowJo software version 10.5.0 for Windows (FlowJo LCC, Ashland, OR, USA).



Western blot

Whole cell lysates were collected directly after 6 h and 24 h for Western blot analyses. Therefore, cells were rinsed with ice cold PBS and collected in lysis buffer, made from RIPA buffer (150 mM NaCl, 50mM TrisHCl, 1% Nonidet P40, 0.25% sodium deoxycholate and 0.1% SDS), supplemented with 1 mM phenylmethylsulfonyl fluoride, 2 mM Na3VO4, 1 mM dithiothreitol, 1 mM sodium pyrophosphate and protease inhibitor mixture (17 M leupeptin, 1 M aprotinin and 12 M pepstatin (all three from Sigma Aldrich)). After centrifugation at 14000 g, 4 C for 10 min, the supernatant was collected and stored at -80 C until use. Samples were sonicated on ice in repeated short cycles (5 sec, energy mode, 20 Joules, 70% amplitude, repeated for 4 times) using the Low Power ultrasonic systems 2000 Lpt/LPe with microtip (Branson, Danbury, CT, USA).

Western Blotting was performed as described before [22]. Protein levels, determined by the Lowry method, were adjusted to the same concentration for each blot. After overnight incubation with primary antibodies against caveolin 1 (Cav-1, Becton Dickinson, Franklin Lakes, NJ, USA, #610406, 1:20000), eNOSThr495,(Cell Signaling Technology (CST), Danvers, USA, #9574, 1:200), eNOSSer1177 (CST, #9571, 1:500), eNOS (CST, #9572, 1:1000), GAPDH (Abcam, Cambridge, United Kingdom, #9484, 1:5000), and SGLT2 (Santa Cruz Biotechnology, #sc-393350, 1:500), membranes were washed with PBS containing 0.1% Tween-20 (Sigma) and incubated with the complementary secondary antibody (IRdye, Licor, Lincoln, USA, 1:5000) for 1h at room temperature before they were washed again. The membranes were scanned with the Odyssey CLx operator (Li-Cor) at auto-scan setting for dynamic range, 169μm resolution and medium quality and quantification of the bands was performed with Image Studio TM Software (Version 5.2, Li-Cor). For quantification of the band signals, the signal from each band on an immunoblot was normalized to the signal from the most intensive band on the same membrane according to the manufacturers instructions. Each signal was then normalized to the housekeeping protein GAPDH.



Co-Immunoprecipitation

Whole cell lysates of HCAECs and HUVECs were collected after 6 hours of TNFα or TNFα+EMPA treatment for Co-immunoprecipitation analyses. Samples were lysed and prepared according to the procedure described above (see western blot). All samples were adjusted to 320 g and pre cleared with Protein A magnetic beads (CST, Danvers, USA). Protein A magnetic beads were separated from sample using a magnetic separation rack (CST, Danvers, USA). Samples were incubated with the primary antibody Caveolin-1 (Abcam, Cambridge, United Kingdom, ab2910) with rotation overnight at 4 C. To extract the immunoprecipitated complex samples were incubated with Protein A magnetic beads, under rotation and the immunoprecipitated complexes were extracted with the magnetic rack.

The immunoprecititated complexes were loaded on SDS page gels and western blotting was carried out as stated above. The following primary antibodies were used: Caveolin-1 (Abcam, Cambridge, United Kingdom, ab2910) and eNOS (CST, Danvers, USA, #9572).



Endothelial cell permeability assay

Cell permeability was assessed 24h after treatment with TNFα with or without EMPA by measuring FITC-labeled BSA concentration across a cell monolayer seeded on a polyester membrane, as described previously [20]. Briefly, confluent cells grown on 12-well plate transwell inserts (filter area 1.12 cm, pore diameter size 0.4 m, Corning Costar, Cambridge, MA, USA) were subjected to the treatment protocols, after which FITC-BSA (10 mg/ml) was added to the upper compartment. After 2h incubation at 37oC, samples from the lower compartment were collected to measure for the albumin leakage across the cell monolayer and membrane. Fluorescence was determined by Spectramax M2e plate reader (Molecular devices LLC, St. Jos, USA) with the software SoftMaxPro 6.5.1. using excitation wavelength at 485 nm with emission at 535 nm.



Cell staining

To study the cellular distribution of vascular endothelial (VE-)cadherin and F-actin, cells were seeded on to gelatin-coated coverslips (VWR, Radnor, PA, USA). After 24h of treatment with vehicle, TNFα or TNFα+EMPA, the monolayer was fixed with 3.7% paraformaldehyde. Cells were rinsed with PBS before permeabilization with 0.01% Triton X-100 (Sigma) and blocking with 1% BSA (PAA Cell Culture Company, Cambridge, UK). F-actin was stained for 30 min with Phalloidin-Rhodamine (Invitrogen, Carlsbad, USA, 1:40). Fixed cells were treated overnight with anti-VE-Cadherin (CST, 1:100) and second antibody goat anti-rabbit DyeLight 488 the next day (Abcam, Cambridge, UK, 1:1500). After a final wash, cover slips were treated with gold anti-Fade reagent (Invitrogen, Carlsbad, USA), which included DAPI for nuclei staining. The cover slips were stored at 4C and protected from light. Images were taken with a wide-field microscope Leica DM6 B (Wetzlar, Germany) at 40x magnification.



Cell adhesion molecules expression

After 4h of treatment, surface expression of adhesion molecules was assessed by flow cytometry as described previously [19]. One million HUVECs or 500.000 HCAECs were stained with PE-conjugated antibodies (1:32) for ICAM-1 and VCAM-1 (both from Becton Dickinson). Unstained cells (blanco) and cells stained with isotype-matched antibody (Becton Dickinson) were used as controls to assess auto-fluorescence and non-specific staining. Samples were kept on ice until flow cytometry analysis. Data processing was performed using FlowJo software version 10.5.0 for Windows.



Transfection with siRNA for SGLT2

Cells were transfected at a confluence of 5080% with siRNA for SGLT2 (ID s12955, Thermo Fisher) or negative control siRNA (Silencer Negative control siRNA, Ambion by Thermo Fisher) together with Lipofectamine RNAiMax (Invitrogen by Thermo Fisher) as described previously [20]. After 72 hours, cells were lysed to determine protein knock down using Western blot analysis as described above.



RNA isolation and cDNA synthesis

Total RNA was extracted using the NucleoSpinRNA Plus kit (Machery-Nagel, The Netherlands) as described by the manufacturer. The concentration and purity of the RNA were determined using the Nanodrop 2000 (Thermo Fisher, The Netherlands).

Total RNA (1 g) was converted to complementary DNA (cDNA) with Transcriptor First Strand cDNA Synthesis kit (Roche, The Netherlands). The concentration was determined by Qubit ssDNA assay kit (Thermo Fisher, The Netherlands).



Taqman quantitativePCR (qPCR)

Taqman qPCR was performed using the LightCycler 480 instrument (Roche, The Netherlands). For this reaction 90 ng cDNA was used for the Taqman Gene Expression Assays (Applied Biosystems, The Netherlands) ACTB (Beta Actin, Hs99999903_m1), and SLC5A2 (SGLT2, Hs0089462_m1).

Raw data were exported and subsequently converted into the program LC480Converter. The converted data were imported to the LinRegPCR program and baseline correction was carried out [23].



Statistical analysis

All values are presented as the mean SD. The number of experiments is mentioned as n, which for the HCAECs stands for each independent experiment from different batches of cell cultures derived from one single donor and for the HUVECs stands for each independent experiment from a different single donor. For each experimental condition, two-six wells with cells were pooled to avoid bias by single well use. Power analysis was conducted with a probability of 0.05 and a power of 0.8. The number of experiments needed was powered to observe an effect of EMPA in TNFα-stimulated cells. We expected at least a change of 2510% to be a relevant effect of EMPA on NO, ROS, permeability, eNOS phosphorylation and adhesion molecule expression, thus we needed to study at least n=4 experiments/condition. The statistical analysis was performed using IBM SPSS Statistics 25. Normality distribution of data were tested with the Shapiro-Wilk test. Student t-test was used for comparisons between control and SGLTi-only treated conditions. Comparisons between more than two groups were performed by one-way ANOVA followed by a Dunnetts post hoc test if data were normally distributed. Not normal data were analyzed with Kruskal-Wallis and Mann-Whitney U tests with Bonferroni correction. P-values are shown in each figure and the post hoc tests are indicated as asterisk symbols (*) to show significant differences as compared to the TNFα condition; *** p < 0.001; ** p < 0.01; * p < 0.05.





Results



EMPA and DAPA reduce ROS levels in TNFα-treated HCAECs

We analyzed the effect of EMPA and DAPA treatment on TNFα-induced intracellular ROS generation in HCAECs using live cell imaging. A significant increase in ROS by TNFα (p<0.01 and p<0.001, respectively Fig. 2a and b) and a strong inhibition in the presence of EMPA and DAPA were observed (Fig. 2a, b p<0.05 and p<0.01 respectively).



Fig. 2. ROS levels of endothelial cells treated with TNFα , TNFα and EMPA or DAPA. HCAECs were treated with 0.02% DMSO (control), 10 ng/mL TNFα or with 10 ng/mL TNFα with 1M EMPA or DAPA for 6h. ROS levels were measured using live cell imaging in HCAECs (a, n=5, b=n=3) Representative images are shown in the lower panels. Data are presented as meanSD. *p<0.05 vs. TNFα, **p<0.01 vs TNFα.



EMPA and DAPA restore TNFα-induced loss of NO bioavailability in HCAECs

Endothelial NO bioavailability is an important functional component that is essential for cell signaling with neighboring cell types, including cardiomyocytes. Live cell imaging of intracellular NO showed that HCAECs exhibited attenuated NO levels in the presence of TNFα (Fig. 3a). Interestingly, treatment with EMPA (Fig. 3a) and DAPA (Fig. 3b) preserved the NO concentration in TNFα-stimulated HCAECs (Fig. 3a, b).

ROS levels in EMPA treated cells were also investigated using a commercially available FACS assay kit. While ROS generation after 4 h of TNFα stimulation was indeed increased (Supplementary Fig. 2a (HCAECs) and b (HUVECs)), ROS remained unaffected by treatment with 1 M EMPA (in mean fluorescence intensity (MFI); HCAECs control 294695411 p<0.05 vs. TNFα, TNFα 473527893, TNFα+EMPA 474338735). To assess whether restoration of ROS levels is detectable using the FACS assay, the anti-oxidant agents N-acetyl cysteine (NAC, 5mM) was administered to HUVECs in additional experiments. These data showed that NAC was able to reverse TNFα-induced ROS formation induced by ROS-inducer Pyocyanin or by TNFα (Supplementary Fig. 3a and b). Moreover, inhibition of ROS by EMPA was not observed in TNFα-stimulated HUVECs using the FACS-based technique (Supplementary Fig. 2b). Furthermore, administration of 1 M EMPA alone did not affect ROS levels (Supplementary Fig. 4a and b).

Although live cell imaging in a limited group of experiments with HUVEC revealed for both measurements (ROS and NO) no significant changes between the groups, numerical trends similar as described in HCAECs were observed (Supplementary Fig. 5a, b).



Fig. 3. NO levels of HCAECs treated with TNFα, TNFα and EMPA or DAPA. Cells were treated with 0.02% DMSO (control), 1 M EMPA or DAPA, 10 ng/mL TNFα or 10 ng/mL TNFα with 1 M EMPA or DAPA for 6h. NO levels were measured using live cell imaging in HCAECs (a,b n=4) Representative images are shown in the panels below each figure. Data are presented as meanSD. *p<0.05 vs. TNFα, **p<0.01, ***p<0.001 vs TNFα.



TNFα-induced changes in Cav-1, eNOS signaling and Cav-1/eNOS correlation are not altered by EMPA

NO bioavailability can be modulated by activity and expression of eNOS, which has been previously shown to be altered by TNFα [3, 4,6]. Activity of eNOS is regulated by its subcellular localization and posttranslational modifications. Compartmentalization of the eNOS in caveolae occurs through interaction with Cav-1 and, as previously shown, has an inhibitory effect on eNOS [24]. However, no upregulation of Cav-1 expression was observed in HCAECs after 6 h TNFα stimulation (Fig. 4a+c, arbitrary units, control 0.510.18, TNFα 0.620.19, TNFα+EMPA 0.740.26). HUVECs exposed to TNFα did show increased Cav-1 protein expression after 6 h of incubation compared to control. Nonetheless, treatment with EMPA did not prevent TNFα induced upregulation of Cav-1 in HUVECs (Fig. 4b+c, arbitrary units, control 0.290.10 p<0.001 vs. TNFα, TNFα 0.880.22, TNFα+EMPA 0.890.18).

We performed co-immunoprecipitation with Cav-1 enriched samples from cells subjected to vehicle, TNFα or TNFα+EMPA for 6h after a 2h pre-incubation with vehicle or EMPA. We observed no changes in the interaction between eNOS and caveolin-1 in all three groups in HCAECs and HUVECS, suggesting that the change in caveolin-1 expression after t=6h TNFα is not accompanied with changes in the interaction between eNOS and caveolin-1 (Fig. 4d+e, f).

At 6h TNFα treatment, no significant changes in eNOSSer1177 phosphorylation, total eNOS and eNOSSer1177 expression in HCAECs and HUVECs between the TNFα and the TNFα+EMPA group were found (Fig. 5a-g). Although TNFα induced a slight increase in eNOSSer1177 phosphorylation in HCAECs, EMPA could not prevent this effect (Fig. 5c).

However, when these cells were evaluated after 24h exposure to TNFα, the total amount of eNOS expression was significantly reduced both in HCAECs (Fig. 6b, g) and in HUVECs (Fig. 6e, g). In accordance with the breakdown of total eNOS we found lower levels of phosphorylated eNOSSer1177 as shown by reduced eNOSSer1177/GAPDH ratio (Fig. 6a+d, g) at 24h. Addition of EMPA had no effect on TNFα downregulated expression of eNOS and its phosphorylated form eNOSSer1177. Phosphorylation of eNOS was determined by the eNOSSer1177/eNOS ratio, which did not show any difference between the groups in HUVEC (Fig. 6f, g) and a slight increase of eNOSSer1177 phosphorylation after stimulation with TNFα in HCAECs, which however was not prevented by EMPA treatment (Fig. 6c, g).

These data suggest an increased eNOS reduction or reduced eNOS protein synthesis after 24h TNFα rather than an effect on phosphorylation by TNFα, which in both cases were not be prevented by EMPA.

Similar as in EMPA treated cells, administration of 1 M DAPA did not recover eNOS expression or eNOSSer1177 expression (Supplementary Fig. 6) in HCAECs (Supplementary Fig. 6a+e) and HUVECs (Supplementary Fig. 6b+e). However, in the experiments with HCAECs, the eNOSSer1177 expression was not significantly attenuated by TNFα (arbitrary units, Supplementary Fig. 6a HCAECs control 0.780.41, TNFα 0.430.27, TNFα+DAPA 0.630.28; Supplementary Fig. 6b, g HUVECs control 0.990.19 p<0.001 vs. TNFα, TNFα 0.440.15, TNFα+DAPA 0.420.08). eNOS expression was not restored by DAPA in both cell types (arbitrary units, Supplementary Fig. 6c HCAECs control 0.890.35 p<0.001 vs. TNFα, TNFα 0.280.08, TNFα+DAPA 0.330.25; Supplementary Fig. 6d HUVECs control 1.040.21 p<0.01 vs. TNFα, TNFα 0.410.13, TNFα+DAPA 0.440.05).

In our study the detection of eNOS Thr495 showed very high variances between the samples and was technically very challenging (Supplementary Fig. 7a-c). We did not find any difference between the TNFα or TNFα+EMPA treated cells at 6h.



Fig. 4. Protein expression of Cav-1 and co-immunoprecipitation of eNOS/Cav-1 in endothelial cells treated with TNFα and EMPA. Cells were treated with 0.02% DMSO (control), 10 ng/mL TNFα or 10 ng/mL TNFα with 1 M EMPA. Cav-1 (Cav-1) levels were determined after 6 h TNFα stimulation in HCAECs (a, n=6) and HUVECs (b, n=6). Representative images of Cav-1 western blots (c). GAPDH was used as internal control. Co-immunoprecipitation of eNOS and Cav-1 in HCAECs (d, n=3) and HUVECs (e, n=3). Representative images of co-immunoprecipitation are shown for HCAECs and HUVECs (f). Unrelated bands omitted for clarity. All full length blots can be found in the supplemental material. Data are presented as meanSD. **p<0.01, ***p<0.001 vs. TNFα.

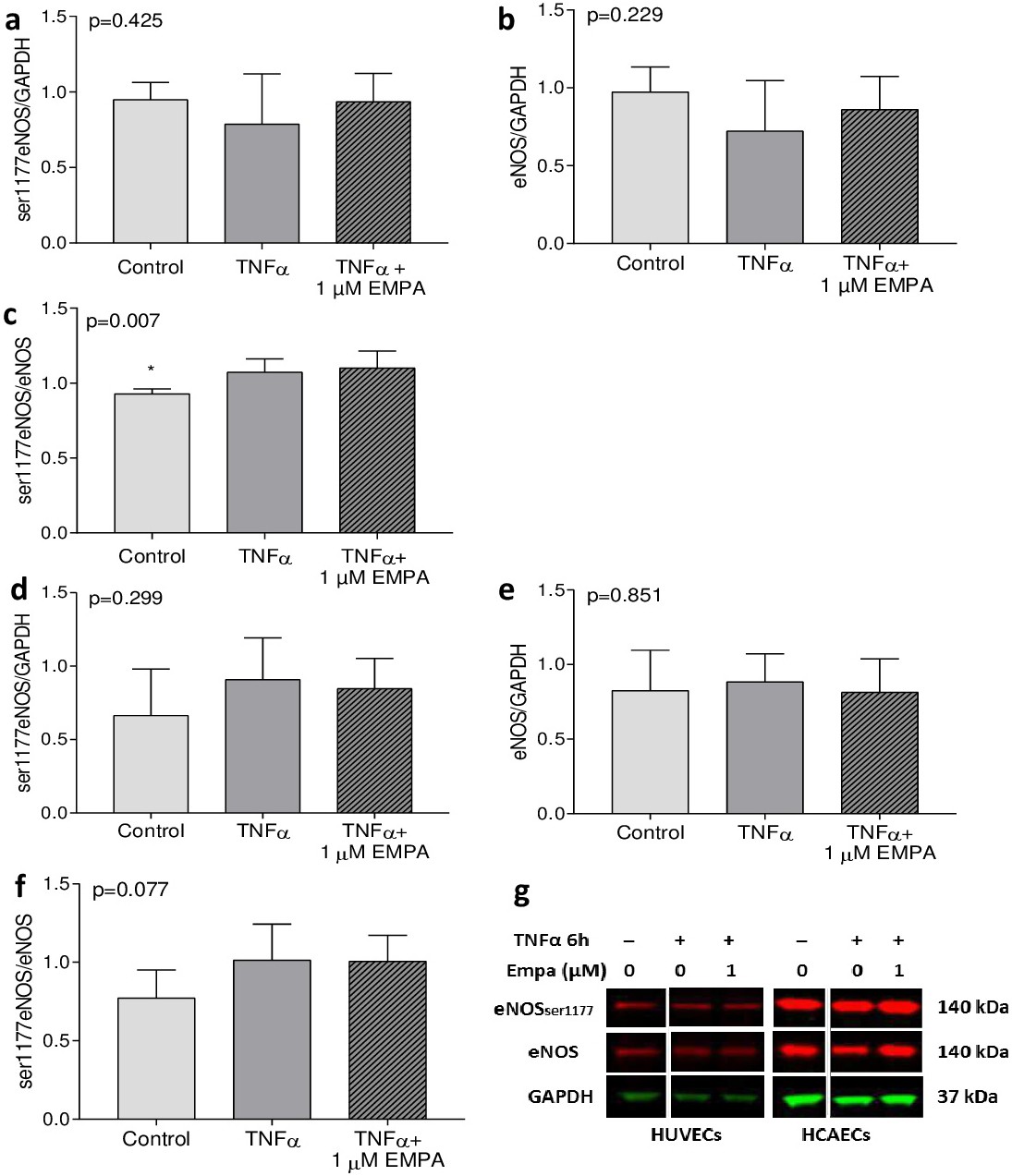

Fig. 5. Protein expression of eNOSSer1177 and total eNOS in endothelial cells treated with TNFα and EMPA after 6 hours. Cells were treated with 0.02% DMSO (control), 10 ng/mL TNFα or 10 ng/mL TNFα with 1 M EMPA. eNOSSer1177 and total eNOS levels were determined after 6h TNFα stimulation in HCAECs (a+b, g, n=6) and HUVECs (d+e, g n=6). eNOSSer1177 phosphorylation was determined by the ratio of eNOSSer1177/eNOS (c,f). Representative images of Western blots for eNOSSer1177 (g) together with total eNOS and GAPDH. Unrelated bands omitted for clarity. All full length blots can be found in the supplemental material. Data are presented as meanSD. *p<0.05 vs. TNFα

Fig. 6. Protein expression of eNOSSer1177 and total eNOS in endothelial cells treated with TNFα and EMPA after 24 hours. Cells were treated with 0.02% DMSO (control), 10 ng/mL TNFα or 10 ng/mL TNFα with 1 M EMPA. eNOSSer1177 and total eNOS levels were determined after 24h TNFα stimulation in HCAECs (a+b, g, n=12) and HUVECs (d+e, g n=6). eNOSSer1177 phosphorylation was determined by the ratio of eNOSSer1177/eNOS (c,f). Representative images of Western blots for eNOSSer1177 (g) together with total eNOS and GAPDH. All full length blots can be found in the supplemental material. Data are presented as meanSD. **p<0.01, ***p<0.001 vs. TNFα.

Fig. 7. Endothelial permeability after treatment with TNFα and EMPA. Cells were treated with 0.02% DMSO (control), 10 ng/mL TNFα or with 10 ng/mL TNFα with 1M EMPA. Permeability was subsequently assessed in a trans-well system by assay of 2h FITC-labelled albumin passage through the HCAECs monolayer (a, n=10 trans-wells/condition from three different cell batches) and the HUVECs monolayer (b, n=4 trans-wells/condition). HCAECs (c) and HUVECs (d) seeded on gelatin-coated coverslips were stained for VE-cadherin (green), actin (red) and DAPI (blue) and subjected to treatment as mentioned above. Scale bars represent 100 m. Data are presented as meanSD. ***p<0.001 vs. TNFα.



No effect of EMPA on TNFα-induced permeability

Elevated permeability was identified after 24h of TNFα stimulation. In HCAECs, TNFα-induced permeability was numerically enhanced with a non-significant trend; administration of EMPA did not affect the permeability in TNFα stimulated HCAECs (Fig. 7a, control 65.25.9, TNFα 90.822.4, TNFα+EMPA 99.428.7). Consistently, administration of EMPA to TNFα-stimulated HUVECs did not attenuate TNFα-induced permeability (in g/mL albumin leakage, control 36.81.8 p<0.001 vs. TNFα, TNFα 61.33.8, TNFα+EMPA 63.32.0, Fig. 7b). Fluorescent staining of the cells suggest that HCAECs are slightly more elongated under control condition compared to HUVECs and that TNFα stimulation lead to more pronounced cell-cell gaps in HCAECs vs. HUVECs (Fig. 7c-d). No effect of EMPA-only treatment was observed in both cell types (Supplementary Fig. 8).

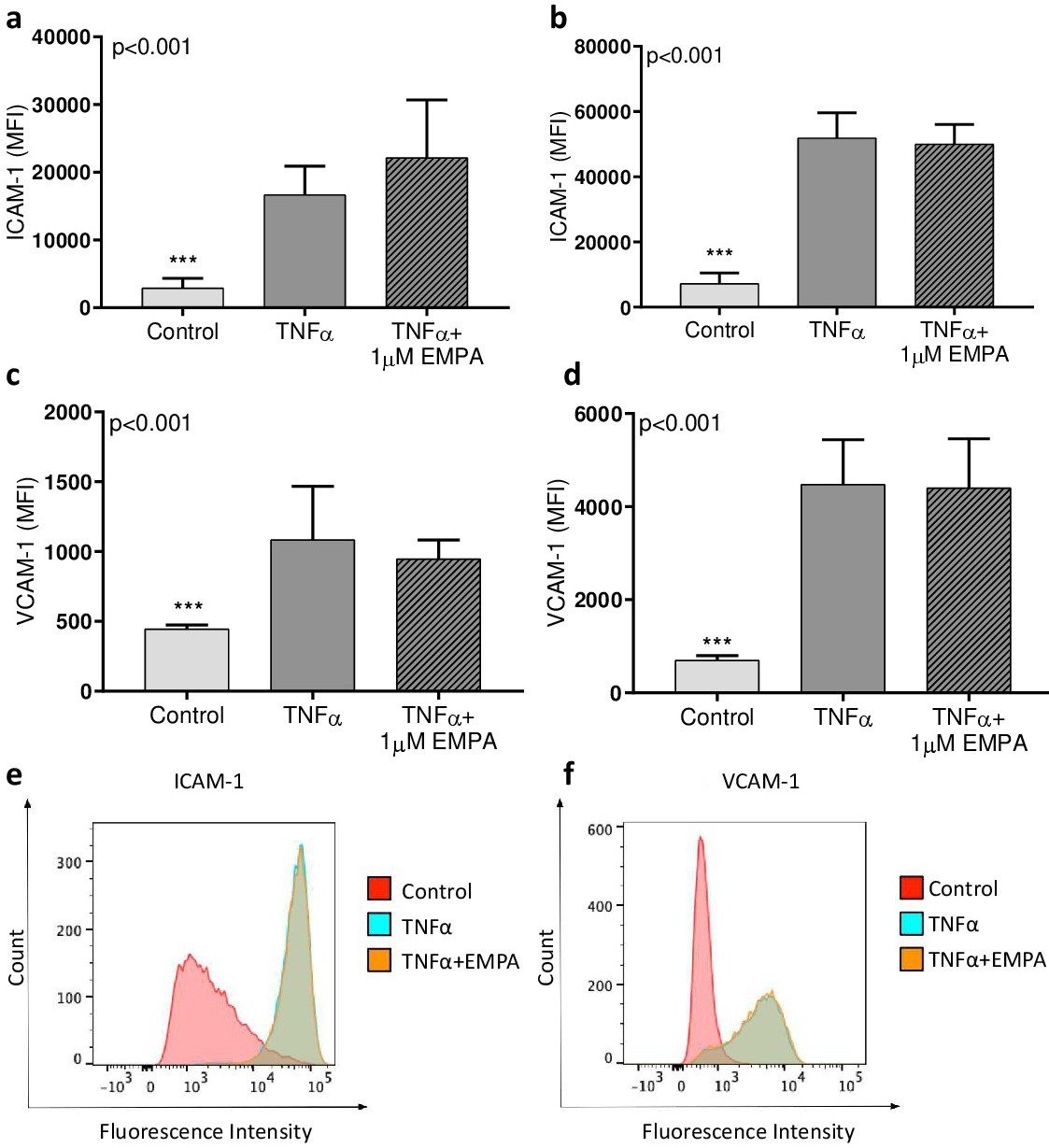

Fig. 8. Expression of adhesion molecules in endothelial cells treated with TNFα and EMPA. Cells were treated with 0.02% DMSO (control), 10 ng/mL TNFα or 10 ng/mL TNFα with 1 M EMPA. ICAM-1 levels were determined after 4h TNFα stimulation in HCAECs (a, n=7-8) and HUVECs (b, n=5). VCAM-1 levels were determined after 4h TNFα stimulation in HCAECs (c, n=8) and HUVECs (d, n=5). Representative FACS measurements of ICAM-1 and VCAM-1 for all three conditions (e). Data are presented as meanSD. **p<0.01, ***p<0.001 vs. TNFα.



TNFα-induced increase in adhesion molecule expression is not attenuated by SGLT2i

Flow cytometry analysis was employed to evaluate the effect of TNFα and EMPA (Fig. 8) on expression of adhesion molecules ICAM-1 and VCAM-1. Measurements of non-labelled and isotype-labelled cells did not differ from the control condition in all experiments (data not shown). TNFα induced a significant upregulation of both adhesion molecules after 4h compared to unstimulated HCAECs (Fig. 8a+c) and HUVECs (Fig. 8b+d). In both cell lines, no significant effect of EMPA was identified on TNFα-induced ICAM-1 (in MFI, HCAECs control 29051448 p<0.001 vs. TNFα, TNFα 166964223, TNFα+EMPA 221398547; HUVECs control 72563237 p<0.001 vs. TNFα, TNFα 519337696, TNFα+EMPA 500046051) and VCAM-1 (in MFI, HCAECs control 44628 p<0.001 vs. TNFα, TNFα 1084384, TNFα+EMPA 948135; HUVECs control 69799 p<0.001 vs. TNFα, TNFα 4479958, TNFα+EMPA 44031054) expression. A higher dose of EMPA (3 M) was investigated, which showed no attenuation of ICAM-1 and VCAM-1 levels in TNFα-stimulated HUVECs (Supplementary Fig. 9a+b).

According to the previous study of Gaspari et al. showing beneficial effects of DAPA on VCAM-1 and ICAM levels in TNFα-stimulated HUVECs after 24h [15], we examined the effects of DAPA in our cells at 24h (Supplementary Fig. 9c-h). Similar to our results with EMPA, addition of 1 M DAPA did not attenuate TNFα induced upregulation of ICAM-1 (in MFI, HCAECs, Supplementary Fig. 9c, control 1450201 p<0.01 vs. TNFα, TNFα 193084036, TNFα+DAPA 241356706; HUVECs, Supplementary Fig. 9d, control 58141412 p<0.001 vs. TNFα, TNFα 323387308, TNFα+DAPA 348068906) and VCAM-1 (in MFI, HCAECs, Supplementary Fig. 9e, control 4509 p<0.001 vs. TNFα, TNFα 1096101, TNFα+DAPA 109676; HUVECs, Supplementary Fig. 9f, control 740154 p<0.01 vs. TNFα, TNFα 42661791, TNFα+DAPA 38801390).



Involvement of SGLT2 in the observed effects

Western blotting analysis was assessed in order to investigate whether SGLT2 expression is affected by TNFα and whether this may be modulated by EMPA treatment in HUVECs and HCAECs (Supplementary Fig. 10). After 6h incubation, expression of SGLT2 did not change by TNFα in both cell types (Supplementary Fig. 10a+b+e, arbitrary units, HCAECs control 0.700.39, TNFα 0.970.22, TNFα+EMPA 1.000.69; HUVECs control 0.750.37, TNFα 0.740.26, TNFα+EMPA 0.940.17). However, after 24h HUVECs subjected to TNFα showed increased SGLT2 levels as detected by the commercially obtained SGLT2 antibody with no significant difference between TNFα and TNFα+EMPA (Supplementary Fig. 10d+e, arbitrary units, control 0.570.15 p<0.01 vs. TNFα, TNFα 0.900.10, TNFα+EMPA 0.880.11), while SGLT2 expression in HCAECs was not affected by TNFα or TNFα with EMPA (Supplementary Fig. 10c+e, arbitrary units, control 0.500.23, TNFα 0.470.17, TNFα+EMPA 0.480.31).

In order to investigate whether the observed effects of EMPA and DAPA were in fact mediated by SGLT2 inhibition we performed siRNA silencing experiments for SGLT2 in both cell types. Interestingly we were not able to silence SGLT2 protein as detected with the same commercially available antibody in the western blot (Supplementary Fig. 10f). This fact raised the question whether we could detect mRNA of SGLT2 in HCAECs. By qPCR we show that SGLT2 mRNA is in fact not detectable in HCAECs (Supplementary Fig. 10g). Together with the fact that the study of Mancini al. showed that HUVECs also do not express relevant amounts of SGLT2 [17], we therefore cannot exclude that the bands seen in western blot with the commercially available antibody might not be SGLT2 protein.

This suggests that SGLT2 inhibition is probably not involved in the observed anti-inflammatory effects of EMPA and DAPA.





Discussion



In the present study, we investigated whether SGLT2is exert pleiotropic effects on arterial and venous endothelial cells stimulated with TNFα. Our data showed that EMPA and DAPA reduce ROS levels and restore NO bioavailability in TNFα-stimulated HCAECs. TNFα-induced changes of endothelial monolayer permeability were unresponsive to EMPA treatment. EMPA and DAPA neither prevent the increased adhesion molecules expression after TNFα stimulation nor eNOS phosphorylation or expression. Taken together, these data suggest that SGLT2is EMPA and DAPA directly intervene with TNFα-induced endothelial dysfunction by reducing ROS levels and restoring NO bioavailability.



EMPA and DAPA restore NO bioavailability after TNFα stimulation without affecting eNOS phosphorylation or expression

Changes in intracellular NO concentrations were determined after 6h treatment with TNF in the presence or absence of EMPA and DAPA. We observed a restoration in NO bioavailability by EMPA and DAPA in TNFα-stimulated HCAECs. TNFα can modulate NO bioavailability by directly affecting the phosphorylation or expression of eNOS [3, 4,6] and by increasing the intracellular superoxide levels [6, 25]. At 6h after treatment with TNFα we did not find significant changes between the TNFα and the TNFα+EMPA group in both cell types suggesting that phosphorylation of eNOS Ser1177 and eNOS signaling is not involved in the strong reduction of ROS by EMPA and DAPA at that time.

We observed 50-60% reduction in eNOSSer1177 and total eNOS expression in 24h TNFα stimulated HUVECs and HCAECs. Since not only phosphorylated eNOS, but also total expression, was reduced by TNFα, it is most likely that TNFα under these conditions resulted in decreased synthesis or elevated breakdown of eNOS (mRNA) rather than acting on phosphorylation of eNOS [3, 6]. We did, however, not observe a restoration of eNOS phosphorylation and eNOS expression by EMPA or DAPA. Conversely, TNFα-induced ROS generation was completely abolished by both SGLT2is in HCAECs, which may suggest that EMPA and DAPA affect NO bioavailability by inhibiting the generation of ROS (further discussed in the next section).

There are several studies showing vasodilation effects of SGLT2is. In ex vivo intact mouse hearts, we observed acute vasodilation by 1 M EMPA treatment [26]. The direct effect of EMPA observed in that study may be associated with inhibition of the sodium/hydrogen exchanger 1 (NHE-1) in cardiomyocytes [2629]. Although inhibition of endothelial NHE-1 has also been linked to improved endothelial cell function [30, 31], it remains unknown whether NHE-1 was actually inhibited in the TNFα-stimulated HUVECs and HCAECs in the present study. Furthermore, EMPA was shown to preserve vasodilator response and eNOS expression in vascular rings [32] and recovered nitrite levels in cultured HUVECs during hyperglycemia [33]. Effects of EMPA on vascular rings were suggested to be linked to SGLT2 inhibition in endothelial cells [33]. However, using vascular rings, effects on vascular smooth muscle cell function cannot be excluded.

The role of Cav-1 in endothelial cells has previously been associated within TNFα-induced signaling. Cav-1 downregulation resulted in improved monolayer integrity in rat pulmonary microvascular endothelial cells stimulated with TNFα [34]. Moreover, elevated Cav-1 levels have been observed in endothelial cells subjected to TNFα [35]. In contrast, our data show no TNFα-induced Cav-1 upregulation in HCAECs. Knowing that Cav-1 plays a major role in endothelial signaling pathways in vascular pathologies, further studies should explore to what extent Cav-1 signaling is divergent in HCAECs compared to other endothelial cells.

Interestingly, co-immunoprecipitation of eNOS and Cav-1 in both cell types revealed no significant changes in the co- immunoprecipitated complexes between TNFα and TNFα+EMPA treated cells. These data further strengthen the hypothesis that EMPA does not modulate localization of eNOS in proximity to Cav-1.

Regarding the second (inhibitory) phosphorylation site of eNOS, eNOS Thr495, the recent study of Steven et al. showed that EMPA treatment inhibits this phosphorylation site [32]. The authors suggest that the improved NO/cGMP signaling they measured is not based on upregulation of eNOS gene expression but rather on prevention of oxidative damage of the NO/cGMP signaling pathway [32].

Since this study was also performed in animals, it cannot be excluded that the effects of EMPA on peNOSThr495 are not specifically a direct effect on endothelial cells.

Combined, the results of the present study propose that EMPA and DAPA restore NO bioavailability rather by a pathway not involving eNOS phosphorylation, expression or signaling.



EMPA and DAPA attenuate TNFα-induced increase in ROS

An elevation in ROS levels is an important hallmark of endothelial dysfunction [36]. Using live cell imaging, we observed that TNFα significantly elevated ROS levels and that treatment with EMPA or DAPA completely inhibited the TNFα-induced upregulation of intracellular ROS levels. Our data correspond to a previous report showing total inhibition of ROS by EMPA in TNFα-stimulated cardiac microvascular endothelial cells [18]. These effects could not be explained by a direct ROS scavenging effect of EMPA [18]. To our knowledge for DAPA no report exist that shows this strong inhibition of DAPA on TNFα-induced ROS levels in endothelial cells. Therefore, the inhibition of inflammation-induced oxidative stress by SGLT2is seems to be a class effect of these novel anti-diabetic drug.

We also investigated intracellular ROS using a FACS-based commercially available technique. ROS levels were expected to be increased in TNFα-stimulated endothelial cells, which was indeed the case with a ~50% increase in ROS after 4 h TNFα stimulation (Supplementary Fig. 3). However, no effect of EMPA on ROS was observed in both HUVECs and HCAECs. An important difference between the FACS-based measurements and the live cell imaging technique is that the latter is able to measure all intracellular ROS, including super-oxide, while super-oxide cannot be detected by the FACS assay. Furthermore, when employing the FACS technique TNFα and/or EMPA were not present at the time the suspended cells were loaded with the ROS probe, thus an acute EMPA effect might not be measured with this technique. In accordance with our data from live cell imaging, it was reported that mitochondrial ROS was inhibited by EMPA in cardiac microvascular endothelial cells stimulated with TNFα [18].

Previous in vitro investigations have reported divergent effects of SGLT2is on intracellular ROS in non-endothelial cell types. Pre-incubation of EMPA in Tacrolimus-induced human kidney 2 (HK-2) cells reduced the burst of intracellular ROS levels at concentrations of 100 and 500 nM [37]. In cultured LPS-induced macrophages, canagliflozin (CANA) reduced oxidative stress and exhibited anti-inflammatory effects after 3-12 hours [38]. The effects were likely due to the inhibition of glucose metabolism and an increase in autophagy. However, reduced ROS was only observed at high dosages (>20 M) of CANA. In differentiated renal proximal tubule epithelial cells, super-oxide production was not affected at clinically relevant dosages of EMPA, DAPA and CANA. Conversely ≥50 M CANA did induce super-oxide production, suggesting a cytotoxic effect of the drug at higher concentrations [39]. Overall, the effects of SGLT2is on intracellular ROS is concentration-, SGLT2i type- and cell type-dependent. Further studies should unravel under which conditions SGLT2is reduce ROS and should also investigate which other cellular mechanisms related to ROS are affected by SGLT2is.



No direct improvement in cell-cell adhesion by SGLT2is

Direct anti-inflammatory actions of SGLT2is CANA and DAPA have been observed previously in HUVECs using inflammatory stimuli, including IL-1β or TNFα [15, 40]. In HUVECs and HCAECs, EMPA did not attenuate the TNFα-induced upregulation of endothelial cell permeability, and expression of VCAM-1 and ICAM-1. These data are in line with previous findings in HUVECs showing no effect of EMPA or DAPA on IL-6 and MCP-1 secretion in IL-1β-stimulated HUVECs [17]. Conversely, a previous study reported that low doses of DAPA possess direct anti-atherogenic effects in cultured HUVECs by attenuation of TNFα-induced VCAM-1 and ICAM-1 expression after 24h [15]. Possible divergent results between these studies may lie in the inflammatory stimuli (IL-1β vs. TNFα) as well as the concentration SGLT2i used (1 M vs. 1-5nM respectively), which both differed in those studies. With regard to protective effects of DAPA observed at lower dosages, we also performed pilot studies that included lower doses of DAPA (1 and 10 nM), which showed no changes in adhesion molecules and phosphorylated eNOS expression. Therefore, these concentrations were not further explored by us (data not shown).

The way SGLT2is could directly affect endothelial cell function under inflammatory conditions is still debated [28]. Increased 5' AMP-activated protein kinase (AMPK) activity through inhibition of mitochondrial complex 1 by CANA has been postulated to be involved in the anti-inflammatory effect of CANA, although this pathway seems to be only affected by CANA and not by DAPA or EMPA [17, 40]. It becomes more apparent that SGLT2is possess drug-specific effects on intracellular mechanisms and cell function in endothelial cells. Mancini et al. reported that cell adhesion molecules expression and NFkB signaling were not affected at a clinically relevant concentrations of CANA [17], which supports our data showing no effect of EMPA on TNFα-induced adhesion molecule expression. Overall, data from our study offer evidence that both EMPA and DAPA do not attenuate permeability, VCAM-1 and ICAM-1 expression in TNFα stimulated HCAECs and HUVECs.

Finally, our data from the quantitative measurement of endothelial permeability and the fluorescent staining of the endothelial monolayer suggest that baseline monolayer permeability was higher in HCAECs (Fig. 7a) compared to HUVECs (Fig. 7b). The HCAECs may have possibly been more responsive to the different stimuli compared to the HUVECs. Evidently, the use of these two different endothelial cell types indicates to some extent a divergence character and response for HCAECs and HUVECs as for HUVECs we did not find a significant effect on NO or ROS measured by live cell imaging, though especially ROS measurements clearly showed the same trend as in HCAECs (Supplementary Fig. 5).



Expression of SGLT2 in endothelial cells

The presence of SGLT2 in endothelial cells is currently discussed and several studies have explored SGLT2 expression at the protein and mRNA level in endothelial cells [33, 41, 42]. A very recent study showed elevated mRNA and protein SGLT2 expression levels in porcine coronary artery endothelial cells exposed to H2O2 or high glucose [43]. This study did show that 100 nM EMPA reduced SGLT2 protein expression in high glucose porcine coronary artery segments, although no change in the activity of SGLT2 by EMPA was observed.

We have explored SGLT2 protein expression in HUVECs and HCAECs using a commercially available antibody for SGLT2. In both cell types, western blot analysis of SGLT2 suggested that SGLT2 protein is expressed. This was shown by a corresponding band on the immunoblot (Supplementary Fig. 10). Regarding the interpretation of the SGLT2 protein band our data showed increased SGLT2 expression already after 24h of TNFα stimulation, although this effect was only detected in HUVECs and not HCAECs. In both cell types, EMPA did not alter the expression of SGLT2. In contrast, in kidney epithelial cells, TNFα (10 pg/mL) stimulated SGLT2 mRNA only after 4 days and SGLT2 expression after 5 days [44].

However, while we aimed to answer the question whether the observed effects of EMPA are actually mediated via SGLT2 we struggled upon the fact that we were unable to silence the SGLT2 protein expression in both cell types using siRNA for SGLT2. Thus, we performed quantitative PCR to measure mRNA levels for SGLT2 in HCAECs, and could not detect any SGLT2 mRNA. Taken this together with the fact that Mancini and co-workers did not find SGLT2 mRNA in human umbilical vein endothelial cells and human aortic endothelial cells [17] raises the concern that although the antibody used to detect SGLT2 was specific for human SGLT2, the expression of SGLT2 mRNA in endothelial cells is very questionable and will need further investigations.



Study limitations

In all our experiments, the experimental and culture conditions lacked flow, which may have affected endothelial activity as well as the expression of particular membrane receptors. Furthermore, we only studied the effects of the SGLT2 inhibitors on endothelial cells obtained from non-diabetic subjects and at normo-glycemic conditions. Previous studies have reported an increased activity of endothelial cells or endothelial dysfunction with elevated glucose concentrations [30, 4547]. We have performed extensive experiments at various glucose concentrations, however we did not observe a decline in endothelial function and activity, i.e. eNOS phosphorylation, adhesion molecules expression and ROS levels after 24-72h of hyperglycemia (unpublished data). Further research should investigate the effects of SGLT2 inhibitors in diabetic endothelial cells or at high glucose concentrations in combination with an inflammatory stimulus. Furthermore, the experiments with HCAECs were performed in a commercially available cell line derived from one donor, so a complete generalization of these results is only possible to a limited extend as we cannot know how a different donor would have responded to the treatments.

Although we observed a significant reduction in the total eNOS levels in these experiments, we cannot exclude the fact that the downregulation of eNOS phosphorylation by TNFα was not significant in the DAPA experiments due to low n (n=6-8 in DAPA experiments vs. n=12 in EMPA experiments).

Considering the TNFα dosage used, our pilot data with 2ng/mL showed no significant reduction in eNOS expression, therefore we chose to use 10ng/mL TNFα as a model of endothelial inflammation. This concentration of TNFα has been previously observed in several patients populations [48, 49], therefore it may remain of physiological significance. However, inflammation remains a complex signaling cascade and the use of only TNFα to induce inflammation may have been insufficient to study endothelial inflammatory mechanisms.





Conclusion



Empagliflozin and Dapagliflozin restore NO bioavailability, possibly via the reduction in ROS generation in TNFα-stimulated HCAECs. The anti-inflammatory effects of SGLT2is Empagliflozin and Dapagliflozin do not appear to be mediated via eNOS phosphorylation/expression and changes in adhesion molecules expression. Our study provides novel insights into the direct cellular effects of SGLT2is in the endothelium.





Abbreviations



SGLT2 (Sodium glucose co-transporter 2); SGLT2is (Sodium glucose co-transporter 2 inhibitor(s)); TNFα (Tumor necrosis factor α); HUVECs (Human umbilical vein endothelial cells); HCAECs (Human coronary arterial endothelial cells); VCAM-1 (Vascular cell Adhesion molecule -1); ICAM-1 (Intercellular Adhesion Molecule -1); eNOS (Endothelial nitric oxide synthase); eNOSSer1177 (Endothelial nitric oxide synthase phosphorylated at Serine 1177); T2D (Type 2 diabetes); ROS (Reactive oxygen species); EMPA (Empagliflozin); DAPA (Dapagliflozin); CANA (Canagliflozin); IL-1β (Interleukin-1β); FITC (Fluorescein isothiocyanate); VE-cadherin (Vascular endothelial cadherin); Cav-1 (Caveolin - 1); GAPDH (Glyceraldehyde 3-phosphate dehydrogenase); vWF (Von Willebrand Factor); MFI (Mean fluorescence intensity); NAC (N-acetyl cysteine); HK-2 cells (Human kidney 2 cells); LPS (Lipopolysaccharide); IL-6 (Interleukin - 6); MCP-1 (Monocyte Chemoattractant Protein-1); FACS (Fluorescence-activated cell sorting); PC (Pyocyanin); ACTB (Actin beta (gene)).





Acknowledgements



We acknowledge the Cellular Imaging, Core Facility of the Amsterdam UMC location AMC, especially Przemek Krawczyk and Ron Hoebe for their expertise and assistance with establishing the live cell imaging experiments.



Statement of ethics

The isolation of HUVECs from human umbilical cords has been waived by the medical ethical committee: W12-167#12.17.096 Amsterdam, the Netherlands.



Funding sources

R. P. Juni is supported by a grant of the Netherlands Heart Foundation (CVON-RECONNECT). C. J. Z was supported by EFSD/Novo Nordisk.



Authors contribution

MWH, BP, PK, VH, CJZ and MA contributed to the analysis planning and interpretation of data, and reviewed and edited the manuscript. RPJ, ELS, MB and RK contributed to the acquisition of data, analysis and interpretation of data, and reviewed the manuscript. LU, AH and NCW contributed to the conception and design, acquisition of data and analysis and interpretation of data, and drafting and revising the critical intellectual content of the manuscript. All authors were fully responsible for all content and approved the final version. NCW is guarantor of this work.





Disclosure Statement



The authors have no conflicts of interest to declare.
