The Contribution of Mitochondrial Ion Channels to Cancer Development and Progression


Magdalena Bachmanna    Giovanna Pontarina    Ildiko Szaboa,b


aDepartment of Biology, University of Padova, Padova, Italy, bCNR Institite of Neuroscience, Padova, Italy





Key Words

Cancer hallmarks • Mitochondrial ion channels • Modulation of mitochondrial function • Modulation of hallmark capabilities by ion channel modulators



Mitochondria play a central role in cancer development, by contributing to most of the classical hallmarks of cancer, including sustained proliferation, metabolic re-programming, apoptosis resistance, invasion and induction of angiogenesis [1]. In addition, mitochondria affect also the function of anti- and pro-tumoral immune cells in the tumor microenvironment. Mitochondria harbor a plethora of regulated ion channels whose function is related to ion/metabolite transport and to fine-tuning of mitochondrial membrane potential as well as of reactive oxygen species release. As a consequence, growing evidence link ion channels located both in the outer and inner mitochondrial membranes to several cancer hallmarks. The present review summarizes our recent knowledge about the participation and role of mitochondrial channels leading to acquisition of cancer hallmarks and thus to cancer progression.





Mitochondria are bioenergetic organelles of endosymbiontic origin, where oxidative phosphorylation takes place in the inner mitochondrial membrane (IMM) leading to the generation of a proton motive force that can be exploited then for the synthesis of ATP. Although the chemi-osmotic hypothesis apparently contradicts the possibility of the presence of ion channels operating in the IMM, over the last three decades a number of highly-regulated ion channels have been identified in this membrane by using various techniques ranging from biochemistry to electrophysiology. Despite the fact that their identification in terms of genes encoding the proteins giving rise to channel activities in these membranes is not fully clear for each channel, a detailed pharmacological characterization helped to hypothesize their functions in mitochondrial physiology (for recent review see [2]). For the cases where molecular identity has been clarified, a combination of genetic and pharmacological tools allowed elucidation of the roles of these channels not only for cell physiology but also in pathological contexts, such as cancer development [3], chemo-resistance [4] and neurodegenerative diseases [5]. The field underwent a particularly intense development regarding calcium signaling in the above processes (e.g. [6]), mediated by mitochondrial Calcium-transporting channels/transporters following the recent molecular identification of the mitochondrial calcium uniporter (MCU) [7, 8] and of the Ca2+/Na+ exchanger [9]. In the present review we give an overview of how specific mitochondrial ion channels affect specific hallmarks of cancer development and progression. First, ion channels of both the outer and inner mitochondrial membranes (OMM and IMM, respectively) will be listed. Description of the specific ion channels’ contribution to cancer hallmarks, where known, follows (Fig. 1). In many cases, more than one hallmark processes are regulated by a given mitochondrial channel, highlighting an especially important role for the OMM-located porin (VDAC), MCU and some potassium channels.

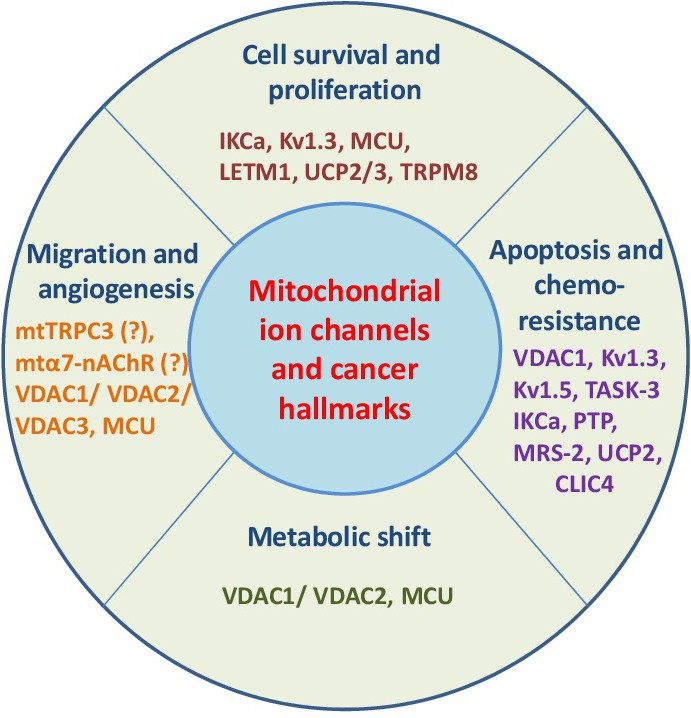

Fig. 1. Contribution of mitochondrial ion channels to cancer hallmarks. The main hallmarks where participation of ion channels in mitochondria has been documented are listed. The crucial role of the mitochondrial uniporter and the porins (VDAC) in promoting cancer progression by acting on several different hallmark process is evident. A putative role for some ion channels in angiogenesis is indicated with question marks. See text for details.



Mitochondrial outer membrane channels


The most extensively studied mitochondrial channels of the outer mitochondrial membrane (OMM) are the three isoforms of the β-barrel Voltage-Dependent Anion Channel (VDAC), or “mitochondrial porin” family (reviews: [10-12], namely VDAC1, VDAC2 and VDAC3. The most abundant mammalian isoform is VDAC1 [13]), present both in the OMM, in the plasma membrane (PM) [14, 15], in endosomes [16] and in the sarco/endoplasmic reticulum [17, 18]. Beside the three VDAC isoforms, electrophysiological or biochemical studies indicate that the OMM harbors also an inward rectifying potassium channel (Kir) [19], the nicotinic acetylcholine receptor α7 AChR found prevalently in the PM [20] and CLIC4, a member of the intracellular chloride channel family [21, 22].



Mitochondrial inner membrane channels


The inner membrane harbours a plethora of potassium channels, many of them being active in various membranes within the cells [10, 23-25]. The Big conductance potassium channel (BKCa)[26], Intermediate-conductance K+ channel (IKCa)[27], Small conductance K+ channel (SKCa)[28],  the voltage-gated  shaker type K+ channels Kv1.3 [29],  Kv1.5 [30],  Kv7.4 [31] as well as a renal outwardly rectifying channel ROMK [32, 33] and the two-pore potassium channel TASK-3 [34] are all present both in the mitochondria and in the PM. Ca2+ channels that might contribute to mediation of Ca2+ fluxes across IMM include the TRPC3 channel [35, 36] and the mitochondrial ryanodine receptor (mRyR1), both showing multiple localization within the cell. Mitochondria-specific channels also exist, including the main pathway for calcium, the calcium uniporter MCU coiled-coiled helix-containing protein CCDC109A [7, 8], the magnesium-transporting channel Mrs2 [37], the Inner Membrane Anion Channel (IMAC), the uncoupler proteins (UCPs) and the mitochondrial permeability transition pore (MPTP) (for a summarizing review see [10]). Finally, a mitochondria-specific component of the ATP-dependent potassium channel (mitoKATP) [38], the coiled-coiled protein CCD51 has been recently identified [39]. Regarding the presence of chloride channels, CLIC5 was shown to be active in the IMM [22].



Mitochondrial ion channels and regulation of proliferation in cancer cells


Limitless cell proliferation, typical of cancer cells is supported by mitochondrial function, since tumor cells need to upregulate macromolecular biosynthesis while maintaining energy production [40]. Our knowledge about the role of mitochondrial channels in promoting proliferation is rather limited. Among potassium channels, IKCa has been shown to regulate oxidative phosphorylation (OxPhos) in pancreatic ductal adenocarcinoma where the channel is functional in both the plasma membrane and mitochondria. Knock-down experiments and channel inhibition by rac-16, a specific small molecule inhibitor pointed to its role in regulating oxygen consumption, ATP production and, as a consequence, cellular proliferation [41]. In particular, in different cell lines tested, inhibition of the channel had no or only minor effects on cell proliferation in the presence of glucose, but forcing the cells to generate ATP exclusively via oxidative phosphorylation by culturing them in galactose, allowed to understand that inhibition of the channel decreased proliferation. Although the underlying mechanism has not been fully elucidated a decrease in ATP synthesis may account for the reduced proliferation rate. Also, a PM IKCa-triggered signalling cascade leading to altered mitochondrial function cannot be fully excluded.

Another mitochondrial potassium channel whose inhibition at sub-lethal concentrations affected cell cycle progression and cell proliferation is mitochondrial Kv1.3. In this case, the drugs inhibiting this channel slightly increased the percentage of cells in S phase and decreased the population at G0/G1 stage of cells, presumably related to a slightly increased ROS levels within the cells [42]. On the other hand, sub-lethal concentrations of the same Kv1.3 inhibitors reduced Wnt signaling [43] that plays an important role in the uncontrolled proliferation of cancer cells, when it is constitutively activated (e.g. [44]). In this paper, the role of AMPK that is regulated by ATP:AMP ratio as well as that of AKT, a serine-threonine kinase has been explored in linking K+ channel modulation to Wnt signaling, but no significant change in these signaling pathways occurred upon inhibition of channel activity [43].

In addition to K+ channels, mitochondrial calcium fluxes also affect proliferation. A recent work revealed that a cell cycle-dependent rapid, mitochondrial Ca2+ transient mediated by MCU is able to link energy sensing to mitochondrial activity during mitosis, since inhibition of MCU caused a spindle checkpoint-dependent mitotic delay. Cellular ATP levels drop during early mitosis, causing an AMPK-dependent phosphorylation of MCU, its activation, Ca2+ uptake into mitochondria and consequent boost of mitochondrial respiration in order to restore energy homeostasis within the cell [45]. A constitutively active Ca2+ transfer from the endoplasmic reticulum (ER) to mitochondria plays a crucial role to ensure viability of tumorigenic cells [46]. In particular, upon a decreased calcium transfer between the two organelles, ATP levels fall since calcium is necessary for the function of some metabolic enzymes (e.g. of the Krebs cycle). As a consequence, impairment of Ca2+ uptake into mitochondria prevents cancer cell survival, while healthy cells cope with this fall in ATP by activating autophagy via the energy-sensing AMP kinase (AMPK), therefore allowing cell survival. In general, cancer cell death correlates with inefficient bioenergetics. Interestingly, the transient receptor potential M8 (TRPM8) (a cold receptor), which is located in the ER membrane in keratinocyte, functions as ER Calcium-release channel and thus controls mitochondrial matrix Ca2+ level, is able to modulate mitochondrial ATP and superoxide synthesis in a cold-dependent manner. ATP is an inducer of keratinocyte proliferation, whereas superoxide anion triggers differentiation. The authors observed that regulation of these factors controls the balance between keratinocyte proliferation and differentiation [47]. No information is available about whether this mechanism might play a role in the uncontrolled proliferation of epithelial cancer cells and whether the ATP-sensing mitoKATP also contributes to fine tuning of proliferation.  In addition, K+ channels, by affecting membrane potential and thus the driving force for Ca2+ uptake, might contribute to the above signaling events that depend on Ca2+ levels in the matrix. However, to our knowledge, a possible cross-talk between K+ channel and MCU activity has not been systematically addressed so far. Instead, a clear effect of the putative K+/H+ transporter LETM1 has been shown on Calcium influx/efflux into/from mitochondria [48] and silencing of LETM1 promoted AMPK activation, cell cycle arrest and autophagy [49].

Finally, activation of uncoupling proteins that induce futile mitochondrial respiration that becomes uncoupled from ATP synthesis, results in nutrient wasting and opposes high proliferation rate. Thus, activation of UCP would be expected to counteract cancer cell growth and proliferation. Indeed, forced mitochondrial uncoupling obtained by UCP3 overexpression was shown to inhibit skin carcinogenesis [50]. Interestingly, AKT activation was markedly inhibited in UCP3 overexpressing primary human keratinocytes as well as in cancer cells of epithelial origin. Uncoupling has the effect of increasing fatty acid oxidation and membrane phospholipid catabolism, and at the same time impairs recruitment of AKT to the plasma membrane. Indeed, overexpression of AKT can overcome the effects of UCP3, rescuing carcinogenesis [50]. Likewise, overexpression of the mitochondrial UCP2 in cancer cells is sufficient to repress malignant phenotypes via upregulation of AMPK expression. In addition, UCP2 overexpression led to down-regulation of hypoxia-induced factor (HIF1-α) expression. These two events are contributing thus to restore a balance toward oxidative phosphorylation by altering expression of glycolytic and oxidative enzymes [51]. Altogether, these results point to the regulation of metabolism in an AKT/AMPK dependent way through a non-canonical function of UCP proteins.

The above examples point to the hypothesis that in principle, any of the mitochondrial channels whose function modulates respiration, ATP production and ROS release might exert a regulatory effect on cell proliferation, involving AMPK and/or AKT kinase-related signaling downstream events. Indeed, low levels of ROS were shown to activate AMPK and AKT as well as apoptosis signal-regulating kinase/c-Jun N-terminal kinase (JNK) pathways. In addition, ROS released from ER and/or mitochondria at sub-lethal concentrations directly modulate the activities of transcriptional factors such as NF-κB, p53, and nuclear factor (erythroid-derived) 2-like (Nrf2) [52], thereby controlling proliferation.



Mitochondrial ion channels and metabolic shift of cancer cells


In order to sustain their proliferation, most cancer cells are characterized by a peculiar metabolism, namely aerobic glycolysis, called also Warburg effect. This type of metabolism ensures a high, uncontrolled cell proliferation rate even under relatively low nutrient availability. These pathologic cells prefer to convert pyruvate, produced by glycolysis, to lactate rather than to Acetyl-CoA, even in the presence of molecular oxygen that would allow complete oxidation of pyruvate through the Krebs cycle and oxidative phosphorylation [53, 54]. This metabolic shift toward glycolysis gives a selective advantage to the tumor cells and can occur thanks to an upregulation of the glucose transporter and high rate glycolysis [55, 56]. Reversal of the Warburg effect may offer a general anticancer strategy. However, many cancer cell types need fully functional mitochondria to maintain their homeostasis and produce pivotal metabolites: some type of cancer cells, including cancer stem cells, rely on oxidative phosphorylation for their survival (e.g. [57-59]).

Ion channels modulate metabolic efficiency of mitochondria [60], both by permitting flux of metabolites (in the case of VDAC and specific transporters) and by affecting efficiency of the respiratory chain and complex V (ATP synthase) in synthesizing ATP (see above). VDAC1 allows direct tunneling of ATP, synthesized in the mitochondrial matrix and exported to the inter-membrane space (delimited by the two mitochondrial membranes) via the adenine nucleotide carrier, to the first enzyme of the glycolytic pathway, hexokinase. This enzyme contributes to the maintenance of the Warburg effect, as it catalyzes phosphorylation of glucose and permits the production of glycolytic metabolic intermediates that can be used by the cancer cells for several biosynthetic processes (e.g., [55, 61, 62]). Both VDAC1 and certain hexokinase isoforms are overexpressed in several types of cancer cells [12, 63] and give a selective advantage to these cells by controlling cellular energy homeostasis.  The role of VDAC1 in cancer cell metabolism has been proven by silencing its expression, resulting in inhibition of cancer cell growth, both in vitro and in vivo. VDAC1 silencing induced metabolic rewiring of the cancer cells and triggered their differentiation. Knockdown of VDAC1 inhibited stemness as well, through changes in transcription factor expression levels (increased expression of p53 and decreased expression of HIF1-α and c-Myc upon VDAC silencing) associated with cancer hallmarks [64].

VDAC1 and VDAC2 allow also the flux of calcium from/to the cytosol into/from mitochondria [11, 65, 66]. Calcium is a key regulator of several essential processes for mitochondrial metabolism, for example is required for the function of key enzymes of the Krebs cycle [67]. Transfer of this ion into mitochondria from the endoplasmic reticulum through MCU, that is overexpressed in several cancer cell types, seems to be essential for the maintenance of mitochondrial function and cellular energy balance [68]. Upregulation of MCU that enhanced the Ca2+ uptake into mitochondria promoted ROS production by affecting NAD+/NADH ratio via modulation of Krebs cycle enzymes [69]. In turn, activities of NAD+-dependent deacetylase sirtuin 3 and of downstream superoxide dismutase 2 (SOD2) were reduced, finally leading to increased ROS release. An increased ROS in turn may modulate hexokinase II expression via stabilization of HIF1-α [70], contributing to enhanced proliferation.  A recent paper reports that MCU has an explicit role in shifting metabolism of cancer cells [71]. First, this paper assessed MCU expression by immunohistochemistry in tumor samples from breast cancer patients and found it to be highly expressed.  Following, microRNA-340, which suppressed breast cancer cell motility by inhibiting glycolysis was identified as a modulator of MCU. Thus, this study indicates that upregulated MCU promotes breast cancer metastasis via enhancing glycolysis.



Mitochondrial ion channels and apoptosis


Mitochondria are central organelles for apoptosis and, in general, for regulated cell death in different organisms [72]. Release of pro-apoptogenic factors, such as cytochrome c, SMAC/Diablo (Second Mitochondria-derived Activator of Caspases/ Direct IAP-Binding protein with Low PI) and AIF (apoptosis-inducing factor) from the mitochondrial inter-membrane space represents the point of no return of the intrinsic mitochondrial programmed cell death signaling pathway. Mitochondrial ion channels are emerging oncological targets [3], as modulation of these ion-transporting proteins may impact on mitochondrial membrane potential, efficiency of oxidative phosphorylation and reactive oxygen production. In turn, these factors affect the release of cytochrome c, which is the point of no return during mitochondrial apoptosis (for reviews see e.g. [73, 74]).

Recent reviews (also in this issue) summarize the role of different mitochondrial channels in modulating apoptosis and also of cancer cell chemoresistance due to defective apoptosis [4, 75, 76]. Therefore, we will focus only on the recent developments in the field and summarize only very briefly early observations.

 VDAC contributes to apoptosis-resistance by preventing outer membrane permeabilization (see e.g. [77, 78]), while in the inner membrane a defective permeability transition pore opening accounts for chemo-resistance (for reviews see e.g. [79, 80]). Mitochondria can undergo a Ca2+-dependent increase of inner membrane permeability (the permeability transition, MPT) causing inner membrane depolarization and interruption of ATP synthesis (see e.g., [81, 82]). The PT has been ascribed later on to the opening of a proteic pore, the MPTP, based on the ability of Cyclosporin A (CSA) to specifically block the PT [83].

Other channels involved in the apoptotic pathway have also been identified, for example TASK-3, IKCa and Kv1.3/Kv1.5 (for reviews see e.g. [4, 84-86]). In general, these latter channels are overexpressed in many tissues and either their activation protects against apoptosis or their pharmacological inhibition sensitizes the cells to apoptotic stimuli.

MPTP opening (that is associated with different forms of cell death) can be triggered by Ca2+ overload in the matrix, while other bivalent cations such as Mg2+, Sr2+ and Ba2+ have an inhibitory effect on pore opening [80]. In this context, it is important to mention that deletion of the Mg2+ channel MRS2 prevents influx of this cation into mitochondria, resulting in cell death. In contrast, MRS2-overexpressing cells became less sensitive to apoptosis inducers [87]. Overexpression of MCU allowing Ca2+ influx into mitochondria and occurring in several cancer cell types might instead trigger MPTP opening. Indeed, for example microRNA-mediated (miR-25) downregulation of MCU has been linked to chemo-resistance in colon and prostate cancer lines [88]. On the other hand, inhibition of Ca2+ transfer from ER to mitochondria also causes cell death through ill-defined mechanisms [68]. In fact, a recent work reported that acute treatment with the death receptor ligand TRAIL rapidly increased mitochondrial Ca2+ concentration. Ca2+ chelators and the MCU inhibitor ruthenium 360, as well as MPTP openers (since this pore may mediate release of calcium) decreased the Ca2+ content in the matrix but at the same time sensitized these tumor cells to TRAIL cytotoxicity. The authors therefore suggest that mitochondrial Ca2+ removal can be exploited to overcome the resistance of cancer cells to TRAIL treatment [89]. Overall, the role of calcium in mitochondrial matrix and at the level of ER/OMM contact sites is not fully clarified in the context of sensitivity towards apoptotic stimuli.

In addition to the above players, UCP2 regulates apoptosis: its overexpression prevented death induced by chemotherapy [90-92] due to a reduction of ROS level, linked to mild uncoupling triggered by UCP2. Upon inhibition of UCP2 expression, a decrease in cell viability and clonogenicity was observed [93]. Among chloride channels, knockdown of CLIC4 enhanced ATP-induced apoptosis in head and neck squamous carcinoma HN4 cells. In accordance with the dual localization of CLIC4 to ER and mitochondria, both organelles were involved in CLIC4-mediated cell apoptosis [94]. In addition, CLIC4 expression has been associated with apoptosis induced by hydrogen peroxide in C6 glioma cells, as suppression of CLIC4 expression enhanced apoptosis, similarly to the above-mentioned example. Dissipation of mitochondrial membrane potential and nuclear translocation of CLIC4 was observed during apoptosis but how these events are linked to CLIC4 function is not fully understood [95, 96]. What was observed is that knockdown of CLIC4 increased the expression of Bax, active caspase-3, active caspase-4 by a still unclarified mechanism and sensitized cells to apoptosis [94].

Altogether these results illustrate that a plethora of ion channels are modulating apoptosis indirectly, by modulating oxidative stress or by triggering opening of MPTP.



Ion channels and angiogenesis


Endothelial cells (ECs) line blood vessels and are essential for normal functioning of the vascular system. Under physiological conditions, ECs are normally quiescent while in response to injury or in pathological conditions they are activated to sprout from the pre-existing vessels, in a tightly regulated process called angiogenesis [97]. Inadequate or excessive vascular growth is implicated in many pathological settings, including carcinogenesis. A better understanding of the molecular mechanisms regulating the angiogenic process is therefore crucial to find effective therapies.

A great number of ion channels and transporters present in the plasma membrane of ECs mediate the fluxes of ions, water and other small molecules associated with the complex sequence of events driving the angiogenesis [98].  The ion channels expressed in endothelial cells include voltage-gated channels (VOCs), transient receptor potential channels (TRPs), nicotinic receptors (nAChRs), volume-regulated anion channels and water channels (acquaporin). Beyond their general role in setting the membrane potential, signal transduction and vascular tone, some of them are directly involved in the angiogenic process and they have been related to tumor angiogenesis, in particular, upon angiogenic stimulus (such as VEGF) the intracellular concentration of Ca2+ is increased through activated ion channels. Although, except for VDAC, direct evidence that mitochondrial ion channels can indeed affect angiogenesis is missing, we list here the ion channels which may potentially contribute, given their dual (or multiple) localization within the cells.

The voltage-gated K+ channels (Kv) are the most represented ones among the cancer- related ion channel families. In cancer cells, Kv11 regulates the expression and secretion of the vascular endothelial growth factor (VEGF-A) potentially inducing angiogenesis [99]. In human endothelium the Kv1.3 channel is present and mediates the proliferation of ECs in culture via membrane hyperpolarization by VEGF-A, resulting in Ca2+ influx [100].  The crosstalk between tumor cells and endothelium via VEGF emerges for other endothelial ion channels as well. The voltage-gated Na+ (Nav) channels are upregulated in metastatic tumor cells and the isoforms Nav1.5 and Nav1.7 expressed in HUVECs modulate VEGF signaling resulting in increased cellular growth and migration [101]. Transient receptor potential (TRP) channels that regulate Ca2+ influx into cells represent another family of cation-permeable channels widely expressed in ECs and whose activity plays a relevant role in VEGF mediated signaling and angiogenesis [102]. TRP channels have been reported to be activated and/or modulated by different chemical and physical stimuli. Among several signaling molecules, angiogenic growth factors such as VEGF and bFGF are found to activate specific TRP isoforms in endothelial cells, causing a subsequent rise in endothelial [Ca2+]i and modulating different angiogenic processes. It has been reported that TRPC3 inhibition or silencing with siRNA impairs VEGF activation of ERK1/2, suppresses endothelial tube formation and proliferation [103]. Experiments using dominant-negative mutant of TRPC6 reduce EC proliferation, migration and sprouting in matrigel assay [104]. Interestingly it was observed that Ca2+influx through TRP channels may stimulate endothelial cells to produce and release the angiogenic growth factors VEGF and PDGF, which consequently stimulate angiogenesis. Beside regulating the Ca2+ influx, the specific TRPM6 and -M7 channels allow the influx of Mg2+ and they are crucial for Mg2+ homeostasis. Although there is still little information, they may participate in the angiogenic process since Mg2+ is an essential player in cellular proliferation.

Nicotinic acetylcholine receptors (nAChRs) are the first cholinergic receptors expressed in the endothelium described to be involved in the angiogenesis [105]. nAChRs are pentameric ligand-gated ion channels opened by the binding of acetylcholine or other specific agonists such as nicotine. When activated, nAChRs function as multifunctional receptors employing different kinds of signaling related to proliferation, survival, adhesion and motility.  Nicotine has been reported to be a potent inducer of angiogenesis activating ECs through nAChRs. Experimental evidences indicate that the α7 subunit forming functional homomeric receptor permeable to Ca2+ plays an important role in angiogenesis. It increases EC survival, which is associated with upregulation of AKT and downregulation of BAD activity, as well as the synthesis of NO. Selective inhibitors of α7-nAChR abrogate endothelial tube formation and migration. In vivo, pharmacological inhibition of α7-nAChR as well as its genetic disruption significantly inhibited inflammatory angiogenesis and reduced ischemia-induced angiogenesis and tumor growth [106]. Recent findings revealed that some endothelial ion channels can be localized also in the mitochondrial membranes and may play a role in the angiogenic process. The α7-nAChR represents the first example of functioning receptor found in the mitochondria.  α7-nAChR localizes in the outer membrane directly interacting with VDAC and regulates the release of pro-apoptotic molecules such as cytochrome c [107]. Using specific agonist and antagonist molecules on isolated mitochondria it was reported that α7-nAChR affects intra-mitochondrial protein kinases (activation of intra-mitochondrial PI3K/AKT pathway and inhibition of calcium-calmodulin-dependent or Src-kinase-dependent signaling pathways) [108].

Perturbations of mitochondrial functions affect proliferation and migration in ECs in culture and ultimately lead to impaired or aberrant angiogenesis. The most well-studied ion channel within the mitochondria is the protein voltage-dependent anion channel (VDAC) which regulates the passage of ions and small metabolites through the outer mitochondrial membrane. It has been found that different compounds targeting the mitochondrial VDAC inhibit angiogenesis with various mechanisms affecting cellular survival and proliferation. The endogenous endostatin promotes apoptosis of endothelial cells by up-regulating VDAC1 expression [109]. Itraconazole, a common antifungal drug, binds to VDAC1 causing an increase in the AMP:ATP ratio, which in turn activates AMPK that down-regulates mTOR pathway and ultimately inhibits endothelial cell proliferation [110].



Mitochondrial ion channels and migration


VDAC was amongst the first channels whose activity has been linked to migration thanks to its ability to transfer Ca2+ into mitochondria. In particular, VDAC1 and VDAC3 interact with Mcl-1, an antiapoptotic member of the Bcl-2 family that is frequently upregulated in non-small cell lung carcinoma. Reducing Mcl-1 expression levels or application of peptides that specifically prevent interaction of VDAC1 with Mcl-1 limited uptake of Calcium into the mitochondrial matrix, with a consequent inhibition of ROS generation and reduction of cell migration, without affecting cell proliferation. Migration was rescued in Mcl-1 knockdown cells by restoring ROS levels, consistent with a model in which ROS production drives increased migration. These data suggest that an interaction between Mcl-1 and VDAC promotes lung cancer cell migration by a ROS and calcium-dependent mechanism [111]. In accordance with this hypothesis, knockdown of MCU in triple negative breast cancer cells significantly reduced cell migration and invasion in vitro and even lung metastasis in vivo. In contrast, overexpression of MCU in non-metastatic MCF-7 breast cancer cells increased migration and invasion in vitro and lung metastasis in vivo by enhancing glycolysis [71]. MCU silencing was shown to decrease migration and metastasis by changing the antioxidant capacity of the cells and by decreasing the steady-state levels of  ROS. As a result, altered HIF1-α stabilization decreased expression of its target genes that are critical factors for migration [70]. Inhibition of the Ca2+ communication between mitochondria and ER was also shown to reduce cancer cell migration in vitro and in vivo [112]. MCU silencing was reported to decrease migration through a still unclear mechanism that implies a reduction of the store-operated Ca2+ entry into the cells. In agreement with the above studies, MCU-dependent mitochondrial Ca2+ uptake was shown to promote mitochondrial matrix metalloproteinase-2 activity and cell migration by ROS-activated JNK pathway. Altogether these studies suggest that MCU may be a potential therapeutic target against metastatic spread [69].

In addition to MCU and VDAC, other mitochondrial channels might be of relevance for promoting migration. For example, IKCa of the plasma membrane is intimately linked to invasiveness [113], but whether the mitochondrial counterpart of IKCa may also contribute to this effect, is presently unexplored. Likewise, a potential role for mitochondrial BKCa, SKCa and TASK-3 potassium channels as well as CLICs in migration cannot be excluded.



Conclusions and future perspectives


As summarized above, mitochondrial ion channels are emerging oncological targets as they are able to profoundly alter processes related to various hallmarks of cancer. The great advantage of these channels is that many of them can be pharmacologically targeted by membrane-permeable inhibitors. However, for specific targeting of mitochondrial channels only, chemical strategies that allow accumulation of ion channel inhibitors in mitochondria can be especially useful [74, 114].

A further important point in this field is to improve our understanding regarding the signaling mechanisms that link mitochondrial inner membrane ion channels to cytoplasmic signaling. Although it is by now recognized that key kinases, such as the c-Jun N-terminal kinase (JNK), protein kinase A (PKA), PTEN-induced kinase-1 (PINK1), and AMPK, readily translocate to the outer mitochondrial membrane (OMM), the interface of mitochondria-cell communication, much remains to be discovered concerning the mechanisms of how ion channels may modulate the action of these kinases. As mentioned above, one possibility is signaling via ATP concentration (in the case for example of AMPK) while another possibility envisions ROS (Fig. 2).

The role of mitochondrial ion channels in other hallmarks than those discussed here should also be addressed. To our knowledge, no information is available regarding a link between mitochondrial ion channel function and evasion of growth suppressors as well as between ion channels and the so-called cancer enabling characteristics such as genome instability and tumor-promoting inflammation [1]. In this respect it is interesting to note that in human monocyte-derived macrophages the mitochondrial calcium uptake via MCU was fundamental for M2 macrophage polarization, suggesting that mitochondrial calcium homeostasis might be relevant also for the tumor microenvironment [115]. Likewise, regulation of the NLRP3 inflammasome by mitochondrial Ca2+ has been observed, pointing to calcium-dependent control of inflammation [116].

Altogether, the present review reports data that further point to the importance of pharmacologically targeting mitochondrial ion channels in order to contrast cancer development.


Fig. 2. Possible mechanisms linking ion channel function to signalling events affecting cancer progression. A) A change in ion channel function or in channel expression might affect the efficiency of respiration by modulating the mitochondrial membrane potential. If efficiency decreases, less ATP is produced and as a consequence, the AMP: ATP ratio increases leading to AMPK activation. In turn, phosphorylation of downstream targets may modulate different signalling pathways inducing cell cycle arrest and inhibition of proliferation. B) Ion channel function, by a similar mechanism as shown in A) might affect ROS release prevalently at respiratory chain complexes I and III (but ROS production occurs also at the level of complex II to a lesser extent). Sustained ROS release in the matrix might trigger opening of the permeability transition (MPTP) leading to depolarization, swelling, rupture of the outer mitochondrial membrane and release of pro-apoptotic factors from mitochondria. ROS, when produced at sub-lethal concentration and released to the cytosol, might activate various kinases, transcription factors, and stabilize HIF1-α (although non-canonical, ROS-independent mechanism also contribute). Thereby, ROS controls proliferation, migration, metabolic shift and possibly angiogenesis. See text for further details.





AIF (apoptosis-inducing factor); AMPK (AMP-activated protein kinase); BAD (BCL2-associated agonist of cell death); BKCa (big conductance potassium channel); CLIC (chloride intracellular channel); CSA (cyclosporin A); EC (endothelial cells); ER (endoplasmic reticulum); ERK (extracellular signal-related kinase); FGF (fibroblast growth factor); HIF1-α (hypoxia-inducible factor 1-alpha); HUVEC (human umbilical vein endothelial cells); IKCa (intermediate conductance potassium channel); IMAC (inner membrane anion channel); IMM (inner mitochondrial membrane); JNK (c-Jun N-terminal kinase); KATP (ATP-dependent potassium channel); Kir (inward rectifying potassium channel); Kv (voltage-gated potassium channel); MCU (mitochondrial calcium uniporter); MPTP (mitochondrial permeability transition pore); mTOR (mammalian target of rapamycin); nAChR (nicotinic acetylcholine receptor); Nav (voltage-gated sodium channel); NF-κB (nuclear factor kappa-light-chain-enhancer of activated B cells); NO (nitric oxide); Nrf2 (Nuclear factor erythroid 2-related factor 2); OMM (outer mitochondrial membrane); OxPhos (oxidative phosphorylation); PDGF (platelet-derived growth factor); PI3K (phosphoinositide 3-kinase); PINK1 (PTEN-induced kinase 1); PKA (protein kinase A); PM (plasma membrane); ROMK (renal outwardly rectifying channel); ROS (reactive oxygen species); RyR (ryanodine receptor); SKCa (small conductance potassium channel); SMAC/Diablo (second mitochondria-derived activator of caspases/direct IAP binding protein with low pI); SOD2 (superoxide dismutase); TASK (Twik-related acid sensitive potassium channel); TRAIL (TNF-related apoptosis-inducing ligand); TRPC (transient receptor potential channel); UCP (uncoupling protein); VDAC (voltage-dependent anion channel); VEGF (vascular endothelial growth factor); VOC (voltage-gated channels).





The authors are grateful to all members of their laboratory for useful discussion and to the Italian Association for Cancer Research (AIRC IG grant 20286 to IS), and to the Italian Ministry of University and Education (PRIN 2015795S5W to IS) for financial support. All three authors contributed to the draft of the manuscript and to the design of the figures.



Disclosure Statement


The authors declare that they have no conflict of interests.





1 Hanahan D, Weinberg RA: Hallmarks of cancer: the next generation. Cell 2011;144:646-674.


2 Leanza L, Checchetto V, Biasutto L, Rossa A, Costa R, Bachmann M, Zoratti M, Szabo I: Pharmacological modulation of mitochondrial ion channels. Br J Pharmacol 2019;176:4258-4283.


3 Leanza L, Zoratti M, Gulbins E, Szabo I: Mitochondrial ion channels as oncological targets. Oncogene 2014;33:5569-5581.


4 Peruzzo R, Szabo I: Contribution of Mitochondrial Ion Channels to Chemo-Resistance in Cancer Cells. Cancers 2019;11:pii:E761.


5 Cali T, Ottolini D, Brini M: Mitochondrial Ca(2+) and neurodegeneration. Cell Calcium 2012;52:73-85.


6 De Stefani D, Rizzuto R, Pozzan T: Enjoy the Trip: Calcium in Mitochondria Back and Forth. Annu Rev Biochem 2016;85:161-192.


7 Baughman JM: Integrative genomics identifies MCU as an essential component of the mitochondrial calcium uniporter. Nature 2011;476:341-345.


8 De Stefani D, Raffaello A, Teardo E, Szabo I, Rizzuto R: A forty-kilodalton protein of the inner membrane is the mitochondrial calcium uniporter. Nature 2011;476:336-340.


9 Palty R, Silverman WF, Hershfinkel M, Caporale T, Sensi SL, Parnis J, Nolte C, Fishman D, Shoshan-Barmatz V, Herrmann S, Khananshvili D, Sekler I: NCLX is an essential component of mitochondrial Na+/Ca2+ exchange. Proc Natl Acad Sci U S A 2010;107:436-441.


10 Szabo I, Zoratti M: Mitochondrial channels: ion fluxes and more. Physiol Rev 2014;94:519-608.


11 Shoshan-Barmatz V, Krelin Y, Shteinfer-Kuzmine A: VDAC1 functions in Ca(2+) homeostasis and cell life and death in health and disease. Cell Calcium 2018;69:81-100.


12 Magri A, Reina S, De Pinto V: VDAC1 as Pharmacological Target in Cancer and Neurodegeneration: Focus on Its Role in Apoptosis. Front Chem 2018;6:108.


13 Messina A, Reina S, Guarino F, De Pinto V: VDAC isoforms in mammals. Biochim Biophys Acta 2012;1818:1466-1476.


14 De Pinto V, Messina A, Lane DJ, Lawen A: Voltage-dependent anion-selective channel (VDAC) in the plasma membrane. FEBS Lett 2010;584:1793-1799.


15 Bathori G, Parolini I, Szabo I, Tombola F, Messina A, Oliva M, Sargiacomo M, De Pinto V, Zoratti M: Extramitochondrial porin: facts and hypotheses. J Bioenerg Biomembr 2000;32:79-89.


16 Reymann S, Haase W, Krick W, Burckhardt G, Thinnes FP: Endosomes: another extra-mitochondrial location of type-1 porin/voltage-dependent anion-selective channels. Pflugers Arch 1998;436:478-480.


17 Jurgens L, Kleineke J, Brdiczka D, Thinnes FP, Hilschmann N: Localization of type-1 porin channel (VDAC) in the sarcoplasmatic reticulum. Biol Chem Hoppe Seyler 1995;376:685-689.


18 Shoshan-Barmatz V, Hadad N, Feng W, Shafir I, Orr I, Varsanyi M, Heilmeyer LM: VDAC/porin is present in sarcoplasmic reticulum from skeletal muscle. FEBS Lett 1996;386:205-210.


19 Fieni F, Parkar A, Misgeld T, Kerschensteiner M, Lichtman JW, Pasinelli P, Trotti D: Voltage-dependent inwardly rectifying potassium conductance in the outer membrane of neuronal mitochondria. J Biol Chem 2010;285:27411-27417.


20 Kalashnyk OM, Gergalova GL, Komisarenko SV, Skok MV: Intracellular localization of nicotinic acetylcholine receptors in human cell lines. Life Sci 2012;91:1033-1037.


21 Ponnalagu D, Singh H: Anion Channels of Mitochondria. Handb Exp Pharmacol 2017;240:71-101.


22 Ponnalagu D, Gururaja Rao S, Farber J, Xin W, Hussain AT, Shah K, Tanda S, Berryman M, Edwards JC, Singh H: Molecular identity of cardiac mitochondrial chloride intracellular channel proteins. Mitochondrion 2016;27:6-14.


23 Checchetto V, Teardo E, Carraretto L, Leanza L, Szabo I: Physiology of intracellular potassium channels: A unifying role as mediators of counterion fluxes? Biochim Biophys Acta 2016;1857:1258-1266.


24 Szewczyk A, Bednarczyk P, Jedraszko J, Kampa RP, Koprowski P, Krajewska M, Kucman S, Kulawiak B, Laskowski M, Rotko D, Sek A, Walewska A, Zochowska M, Wrzosek A: Mitochondrial potassium channels - an overview. Postepy Biochem 2018;64:196-212.


25 Laskowski M, Augustynek B, Kulawiak B, Koprowski P, Bednarczyk P, Jarmuszkiewicz W, Szewczyk A: What do we not know about mitochondrial potassium channels? Biochim Biophys Acta 2016;1857:1247-1257.


26 Singh H, Stefani E, Toro L: Intracellular BK(Ca) (iBK(Ca)) channels. J Physiol 2012;590:5937-5947.


27 De Marchi U, Sassi N, Fioretti B, Catacuzzeno L, Cereghetti GM, Szabo I, Zoratti M: Intermediate conductance Ca2+-activated potassium channel (KCa3.1) in the inner mitochondrial membrane of human colon cancer cells. Cell Calcium 2009;45:509-516.


28 Dolga AM, Netter MF, Perocchi F, Doti N, Meissner L, Tobaben S, Grohm J, Zischka H, Plesnila N, Decher N, Culmsee C: Mitochondrial small conductance SK2 channels prevent glutamate-induced oxytosis and mitochondrial dysfunction. J Biol Chem 2013;288:10792-10804.


29 Szabo I, Bock J, Jekle A, Soddemann M, Adams C, Lang F, Zoratti M, Gulbins E: A novel potassium channel in lymphocyte mitochondria. J Biol Chem 2005;280:12790-12798.


30 Leanza L, Zoratti M, Gulbins E, Szabo I: Induction of apoptosis in macrophages via Kv1.3 and Kv1.5 potassium channels. Curr Med Chem 2012;19:5394-5404.


31 Testai L, Barrese V, Soldovieri MV, Ambrosino P, Martelli A, Vinciguerra I, Miceli F, Greenwood I, Curtis MJ, Breschi MC, Sisalli MJ, Scorziello A, Canduela MJ, Grandes P, Calderone V, Taglialatela M: Expression and function of Kv7.4 channels in Rat cardiac mitochondria: possible targets for cardioprotection. Cardiovasc Res 2016;110:40-50.


32 Foster DB, Ho AS, Rucker J, Garlid AO, Chen L, Sidor A, Garlid KD, O'Rourke B: Mitochondrial ROMK channel is a molecular component of mitoK(ATP). Circ Res 2012;111:446-454.


33 Bednarczyk P, Kicinska A, Laskowski M, Kulawiak B, Kampa R, Walewska A, Krajewska M, Jarmuszkiewicz W, Szewczyk A: Evidence for a mitochondrial ATP-regulated potassium channel in human dermal fibroblasts. Biochim Biophys Acta Bioenerg 2018;1859:309-318.


34 Pocsai K, Kosztka L, Bakondi G, Gonczi M, Fodor J, Dienes B, Szentesi P, Kovacs I, Feniger-Barish R, Kopf E, Zharhary D, Szucs G, Csernoch L, Rusznak Z: Melanoma cells exhibit strong intracellular TASK-3-specific immunopositivity in both tissue sections and cell culture. Cell Mol Life Sci 2006;63:2364-2376.


35 Wang L, Yang X, Shen Y: Molecular mechanism of mitochondrial calcium uptake. Cell Mol Life Sci 2015;72:1489-1498.


36 Feng S, Li H, Tai Y, Huang J, Su Y, Abramowitz J, Zhu MX, Birnbaumer L, Wang Y: Canonical transient receptor potential 3 channels regulate mitochondrial calcium uptake. Proc Natl Acad Sci U S A 2013;110:11011-11016.


37 Kolisek M, Zsurka G, Samaj J, Weghuber J, Schweyen RJ, Schweigel M: Mrs2p is an essential component of the major electrophoretic Mg2+ influx system in mitochondria. EMBO J 2003;22:1235-1244.


38 Inoue I, Nagase H, Kishi K, Higuti T: ATP-sensitive K+ channel in the mitochondrial inner membrane. Nature 1991;352:244-247.


39 Paggio A, Checchetto V, Campo A, Menabo R, Di Marco G, Di Lisa F, Szabo I, Rizzuto R, De Stefani D: Identification of an ATP-sensitive potassium channel in mitochondria. Nature 2019;572:609-613.


40 Trotta AP, Chipuk JE: Mitochondrial dynamics as regulators of cancer biology. Cell Mol Life Sci 2017;74:1999-2017.


41 Kovalenko I, Glasauer A, Schockel L, Sauter DR, Ehrmann A, Sohler F, Hagebarth A, Novak I, Christian S: Identification of KCa3.1 Channel as a Novel Regulator of Oxidative Phosphorylation in a Subset of Pancreatic Carcinoma Cell Lines. PloS One 2016;11:e0160658.


42 Peruzzo R, Mattarei A, Romio M, Paradisi C, Zoratti M, Szabo I, Leanza L: Regulation of Proliferation by a Mitochondrial Potassium Channel in Pancreatic Ductal Adenocarcinoma Cells. Front Oncol 2017;7:239.


43 Costa R, Peruzzo R, Bachmann M, Monta GD, Vicario M, Santinon G, Mattarei A, Moro E, Quintana-Cabrera R, Scorrano L, Zeviani M, Vallese F, Zoratti M, Paradisi C, Argenton F, Brini M, Cali T, Dupont S, Szabo I, Leanza L: Impaired Mitochondrial ATP Production Downregulates Wnt Signaling via ER Stress Induction. Cell Rep 2019;28:1949-1960.e1946.


44 Zhao J, He Q, Gong Z, Chen S, Cui L: Niclosamide suppresses renal cell carcinoma by inhibiting Wnt/beta-catenin and inducing mitochondrial dysfunctions. Springerplus 2016;5:1436.


45 Zhao H, Li T, Wang K, Zhao F, Chen J, Xu G, Zhao J, Li T, Chen L, Li L, Xia Q, Zhou T, Li HY, Li AL, Finkel T, Zhang XM, Pan X: AMPK-mediated activation of MCU stimulates mitochondrial Ca(2+) entry to promote mitotic progression. Nat Cell Biol 2019;21:476-486.


46 Cardenas C, Muller M, McNeal A, Lovy A, Jana F, Bustos G, Urra F, Smith N, Molgo J, Diehl JA, Ridky TW, Foskett JK: Selective Vulnerability of Cancer Cells by Inhibition of Ca(2+) Transfer from Endoplasmic Reticulum to Mitochondria. Cell Rep 2016;14:2313-2324.


47 Bidaux G, Borowiec AS, Gordienko D, Beck B, Shapovalov GG, Lemonnier L, Flourakis M, Vandenberghe M, Slomianny C, Dewailly E, Delcourt P, Desruelles E, Ritaine A, Polakowska R, Lesage J, Chami M, Skryma R, Prevarskaya N: Epidermal TRPM8 channel isoform controls the balance between keratinocyte proliferation and differentiation in a cold-dependent manner. Proc Natl Acad Sci U S A 2015;112:E3345-3354.


48 Austin S, Tavakoli M, Pfeiffer C, Seifert J, Mattarei A, De Stefani D, Zoratti M, Nowikovsky K: LETM1-Mediated K(+) and Na(+) Homeostasis Regulates Mitochondrial Ca(2+) Efflux. Front Physiol 2017;8:839.


49 Doonan PJ, Chandramoorthy HC, Hoffman NE, Zhang X, Cardenas C, Shanmughapriya S, Rajan S, Vallem S, Chen X, Foskett JK, Cheung JY, Houser SR, Madesh M: LETM1-dependent mitochondrial Ca2+ flux modulates cellular bioenergetics and proliferation. FASEB J 2014;28:4936-4949.


50 Nowinski SM, Solmonson A, Rundhaug JE, Rho O, Cho J, Lago CU, Riley CL, Lee S, Kohno S, Dao CK, Nikawa T, Bratton SB, Wright CW, Fischer SM, DiGiovanni J, Mills EM: Mitochondrial uncoupling links lipid catabolism to Akt inhibition and resistance to tumorigenesis. Nat Commun 2015;6:8137.


51 Esteves P, Pecqueur C, Ransy C, Esnous C, Lenoir V, Bouillaud F, Bulteau AL, Lombes A, Prip-Buus C, Ricquier D, Alves-Guerra MC: Mitochondrial retrograde signaling mediated by UCP2 inhibits cancer cell proliferation and tumorigenesis. Cancer Res 2014;74:3971-3982.


52 Kaminskyy VO, Zhivotovsky B: Free radicals in cross talk between autophagy and apoptosis. Antioxid Redox Signal 2014;21:86-102.


53 Porporato PE, Filigheddu N, Pedro JMB, Kroemer G, Galluzzi L: Mitochondrial metabolism and cancer. Cell Res 2018;28:265-280.


54 Ward PS, Thompson CB: Metabolic reprogramming: a cancer hallmark even warburg did not anticipate. Cancer Cell 2012;21:297-308.


55 Gogvadze V, Zhivotovsky B, Orrenius S: The Warburg effect and mitochondrial stability in cancer cells. Mol Aspects Med 2010;31:60-74.


56 Hanahan D, Weinberg RA: Hallmarks of cancer: the next generation. Cell 2011;144:646-674.


57 Flis K, Irvine D, Copland M, Bhatia R, Skorski T: Chronic myeloid leukemia stem cells display alterations in expression of genes involved in oxidative phosphorylation. Leuk Lymphoma 2012;53:2474-2478.


58 Lagadinou ED, Sach A, Callahan K, Rossi RM, Neering SJ, Minhajuddin M, Ashton JM, Pei S, Grose V, O'Dwyer KM, Liesveld JL, Brookes PS, Becker MW, Jordan CT: BCL-2 inhibition targets oxidative phosphorylation and selectively eradicates quiescent human leukemia stem cells. Cell Stem Cell 2013;12:329-341.


59 Viale A, Pettazzoni P, Lyssiotis CA, Ying H, Sanchez N, Marchesini M, Carugo A, Green T, Seth S, Giuliani V, Kost-Alimova M, Muller F, Colla S, Nezi L, Genovese G, Deem AK, Kapoor A, Yao W, Brunetto E, Kang Y, et al.: Oncogene ablation-resistant pancreatic cancer cells depend on mitochondrial function. Nature 2014;514:628-632.


60 Madamba SM, Damri KN, Dejean LM, Peixoto PM: Mitochondrial Ion Channels in Cancer Transformation. Front Oncol 2015;5:120.


61 Hockenbery DM: Targeting mitochondria for cancer therapy. Environ Mol Mutagen 2010;51:476-489.


62 Fulda S, Kroemer G: Mitochondria as therapeutic targets for the treatment of malignant disease. Antioxid Redox Signal 2011;15:2937-2949.


63 Shoshan-Barmatz V, Ben-Hail D, Admoni L, Krelin Y, Tripathi SS: The mitochondrial voltage-dependent anion channel 1 in tumor cells. Biochim Biophys Acta 2015;1848:2547-2575.


64 Arif T, Paul A, Krelin Y, Shteinfer-Kuzmine A, Shoshan-Barmatz V: Mitochondrial VDAC1 Silencing Leads to Metabolic Rewiring and the Reprogramming of Tumour Cells into Advanced Differentiated States. Cancers 2018;10:pii:E499.


65 De Stefani D, Bononi A, Romagnoli A, Messina A, De Pinto V, Pinton P, Rizzuto R: VDAC1 selectively transfers apoptotic Ca2+ signals to mitochondria. Cell Death Differ 2012;19:267-273.


66 Shimizu H, Schredelseker J, Huang J, Lu K, Naghdi S, Lu F, Franklin S, Fiji HD, Wang K, Zhu H, Tian C, Lin B, Nakano H, Ehrlich A, Nakai J, Stieg AZ, Gimzewski JK, Nakano A, Goldhaber JI, Vondriska TM, et al.: Mitochondrial Ca(2+) uptake by the voltage-dependent anion channel 2 regulates cardiac rhythmicity. eLife 2015; DOI:10.755/eLife.04801.


67 Rizzuto R, De Stefani D, Raffaello A, Mammucari C: Mitochondria as sensors and regulators of calcium signalling. Nat Rev Mol Cell Biol 2012;13:566-578.


68 Bustos G, Cruz P, Lovy A, Cardenas C: Endoplasmic Reticulum-Mitochondria Calcium Communication and the Regulation of Mitochondrial Metabolism in Cancer: A Novel Potential Target. Front Oncol 2017;7:199.


69 Ren T, Zhang H, Wang J, Zhu J, Jin M, Wu Y, Guo X, Ji L, Huang Q, Zhang H, Yang H, Xing J: MCU-dependent mitochondrial Ca(2+) inhibits NAD(+)/SIRT3/SOD2 pathway to promote ROS production and metastasis of HCC cells. Oncogene 2017;36:5897-5909.


70 Tosatto A, Sommaggio R, Kummerow C, Bentham RB, Blacker TS, Berecz T, Duchen MR, Rosato A, Bogeski I, Szabadkai G, Rizzuto R, Mammucari C: The mitochondrial calcium uniporter regulates breast cancer progression via HIF-1alpha. EMBO Mol Med 2016;8:569-585.


71 Yu C, Wang Y, Peng J, Shen Q, Chen M, Tang W, Li X, Cai C, Wang B, Cai S, Meng X, Zou F: Mitochondrial calcium uniporter as a target of microRNA-340 and promoter of metastasis via enhancing the Warburg effect. Oncotarget 2017;8:83831-83844.


72 Galluzzi L, Kepp O, Kroemer G: Mitochondrial regulation of cell death: a phylogenetically conserved control. Microb Cell 2016;3:101-108.


73 Gogvadze V: Targeting mitochondria in fighting cancer. Curr Pharm Des 2011;17:4034-4046.


74 Yan B, Dong L, Neuzil J: Mitochondria: An intriguing target for killing tumour-initiating cells. Mitochondrion 2016;26:86-93.


75 Leanza L, Venturini E, Kadow S, Carpinteiro A, Gulbins E, Becker KA: Targeting a mitochondrial potassium channel to fight cancer. Cell Calcium 2019;58:131-138.


76 Cui C, Merritt R, Fu L, Pan Z: Targeting calcium signaling in cancer therapy. Acta Pharm Sin B 2017;7:3-17.


77 Yamagata H, Shimizu S, Nishida Y, Watanabe Y, Craigen WJ, Tsujimoto Y: Requirement of voltage-dependent anion channel 2 for pro-apoptotic activity of Bax. Oncogene 2009;28:3563-3572.


78 Shoshan-Barmatz V, De Pinto V, Zweckstetter M, Raviv Z, Keinan N, Arbel N: VDAC, a multi-functional mitochondrial protein regulating cell life and death. Mol Aspects Med 2010;31:227-285.


79 Rasola A, Bernardi P: The mitochondrial permeability transition pore and its adaptive responses in tumor cells. Cell Calcium 2014;56:437-445.


80 Bernardi P: Mitochondrial transport of cations: channels, exchangers, and permeability transition. Physiol Rev 1999;79:1127-1155.


81 Di Lisa F, Bernardi P: Mitochondrial function and myocardial aging. A critical analysis of the role of permeability transition. Cardiovasc Res 2005;66:222-232.


82 Zoratti M, Szabo I: The mitochondrial permeability transition. Biochim Biophys Acta 1995;1241:139-176.


83 Crompton M, Ellinger H, Costi A: Inhibition by cyclosporin A of a Ca2+-dependent pore in heart mitochondria activated by inorganic phosphate and oxidative stress. Biochem J 1988;255:357-360.


84 Peruzzo R, Biasutto L, Szabo I, Leanza L: Impact of intracellular ion channels on cancer development and progression. Eur Biophys J 2016;45:685-707.


85 Patel AJ, Lazdunski M: The 2P-domain K+ channels: role in apoptosis and tumorigenesis. Pflugers Arch 2004;448:261-273.


86 Szewczyk A, Jarmuszkiewicz W, Kunz WS: Mitochondrial potassium channels. IUBMB Life 2009;61:134-143.


87 Merolle L, Sponder G, Sargenti A, Mastrototaro L, Cappadone C, Farruggia G, Procopio A, Malucelli E, Parisse P, Gianoncelli A, Aschenbach JR, Kolisek M, Iotti S: Overexpression of the mitochondrial Mg channel MRS2 increases total cellular Mg concentration and influences sensitivity to apoptosis. Metallomics 2018;10:917-928.


88 Marchi S, Lupini L, Patergnani S, Rimessi A, Missiroli S, Bonora M, Bononi A, Corra F, Giorgi C, De Marchi E, Poletti F, Gafa R, Lanza G, Negrini M, Rizzuto R, Pinton P: Downregulation of the mitochondrial calcium uniporter by cancer-related miR-25. Curr Biol 2013;23:58-63.


89 Takata N, Ohshima Y, Suzuki-Karasaki M, Yoshida Y, Tokuhashi Y, Suzuki-Karasaki Y: Mitochondrial Ca2+ removal amplifies TRAIL cytotoxicity toward apoptosis-resistant tumor cells via promotion of multiple cell death modalitiesInt J Oncol 2017;51:193-203.


90 Derdak Z, Mark NM, Beldi G, Robson SC, Wands JR, Baffy G: The mitochondrial uncoupling protein-2 promotes chemoresistance in cancer cells. Cancer Res 2008;68:2813-2819.


91 Yu G, Liu J, Xu K, Dong J: Uncoupling protein 2 mediates resistance to gemcitabine-induced apoptosis in hepatocellular carcinoma cell lines. Biosci Rep 2015;35:e00231.


92 Dalla Pozza E, Fiorini C, Dando I, Menegazzi M, Sgarbossa A, Costanzo C, Palmieri M, Donadelli M: Role of mitochondrial uncoupling protein 2 in cancer cell resistance to gemcitabine. Biochim Biophys Acta 2012;1823:1856-1863.


93 Pons DG, Nadal-Serrano M, Torrens-Mas M, Valle A, Oliver J, Roca P: UCP2 inhibition sensitizes breast cancer cells to therapeutic agents by increasing oxidative stress. Free Radic Biol Med 2015;86:67-77.


94 Xue H, Lu J, Yuan R, Liu J, Liu Y, Wu K, Wu J, Du J, Shen B: Knockdown of CLIC4 enhances ATP-induced HN4 cell apoptosis through mitochondrial and endoplasmic reticulum pathways. Cell Biosci 2016;6:5.


95 Xu Y, Kang J, Yuan Z, Li H, Su J, Li Y, Kong X, Zhang H, Wang W, Sun L: Suppression of CLIC4/mtCLIC enhances hydrogen peroxide-induced apoptosis in C6 glioma cells. Oncol Rep 2013;29:1483-1491.


96 Fernandez-Salas E, Suh KS, Speransky VV, Bowers WL, Levy JM, Adams T, Pathak KR, Edwards LE, Hayes DD, Cheng C, Steven AC, Weinberg WC, Yuspa SH: mtCLIC/CLIC4, an organellular chloride channel protein, is increased by DNA damage and participates in the apoptotic response to p53. Mol Cell Biol 2002;22:3610-3620.


97 Potente M, Gerhardt H, Carmeliet P: Basic and therapeutic aspects of angiogenesis. Cell 2011;146:873-887.


98 Nilius B, Droogmans G: Ion channels and their functional role in vascular endothelium. Physiol Rev 2001;81:1415-1459.


99 D'Amico M, Gasparoli L, Arcangeli A: Potassium channels: novel emerging biomarkers and targets for therapy in cancer. Recent Pat Anticancer Drug Discov 2013;8:53-65.


100 Erdogan A, Schaefer CA, Schaefer M, Luedders DW, Stockhausen F, Abdallah Y, Schaefer C, Most AK, Tillmanns H, Piper HM, Kuhlmann CR: Margatoxin inhibits VEGF-induced hyperpolarization, proliferation and nitric oxide production of human endothelial cells. J Vasc Res 2005;42:368-376.


101 Andrikopoulos P, Fraser SP, Patterson L, Ahmad Z, Burcu H, Ottaviani D, Diss JK, Box C, Eccles SA, Djamgoz MB: Angiogenic functions of voltage-gated Na+ Channels in human endothelial cells: modulation of vascular endothelial growth factor (VEGF) signaling. J Biol Chem 2011;286:16846-16860.


102 Smani T, Gomez LJ, Regodon S, Woodard GE, Siegfried G, Khatib AM, Rosado JA: TRP Channels in Angiogenesis and Other Endothelial Functions. Front Physiol 2018;9:1731.


103 Andrikopoulos P, Eccles SA, Yaqoob MM: Coupling between the TRPC3 ion channel and the NCX1 transporter contributed to VEGF-induced ERK1/2 activation and angiogenesis in human primary endothelial cells. Cell Signal 2017;37:12-30.


104 Antigny F, Girardin N, Frieden M: Transient receptor potential canonical channels are required for in vitro endothelial tube formation. J Biol Chem 2012;287:5917-5927.


105 Cooke JP: Angiogenesis and the role of the endothelial nicotinic acetylcholine receptor. Life Sci 2007;80:2347-2351.


106 Heeschen C, Weis M, Aicher A, Dimmeler S, Cooke JP: A novel angiogenic pathway mediated by non-neuronal nicotinic acetylcholine receptors. J Clin Invest 2002;110:527-536.


107 Gergalova G, Lykhmus O, Kalashnyk O, Koval L, Chernyshov V, Kryukova E, Tsetlin V, Komisarenko S, Skok M: Mitochondria express alpha7 nicotinic acetylcholine receptors to regulate Ca2+ accumulation and cytochrome c release: study on isolated mitochondria. PloS One 2012;7:e31361.


108 Gergalova G, Lykhmus O, Komisarenko S, Skok M: alpha7 nicotinic acetylcholine receptors control cytochrome c release from isolated mitochondria through kinase-mediated pathways. Int J Biochem Cell Biol 2014;49:26-31.


109 Yuan S, Fu Y, Wang X, Shi H, Huang Y, Song X, Li L, Song N, Luo Y: Voltage-dependent anion channel 1 is involved in endostatin-induced endothelial cell apoptosis. FASEB J 2008;22:2809-2820.


110 Head SA, Shi W, Zhao L, Gorshkov K, Pasunooti K, Chen Y, Deng Z, Li RJ, Shim JS, Tan W, Hartung T, Zhang J, Zhao Y, Colombini M, Liu JO: Antifungal drug itraconazole targets VDAC1 to modulate the AMPK/mTOR signaling axis in endothelial cells. Proc Natl Acad Sci U S A 2015;112:E7276-7285.


111 Huang H, Shah K, Bradbury NA, Li C, White C: Mcl-1 promotes lung cancer cell migration by directly interacting with VDAC to increase mitochondrial Ca2+ uptake and reactive oxygen species generation. Cell Death Dis 2014;5:e1482.


112 Tang S, Wang X, Shen Q, Yang X, Yu C, Cai C, Cai G, Meng X, Zou F: Mitochondrial Ca(2)(+) uniporter is critical for store-operated Ca(2)(+) entry-dependent breast cancer cell migration. Biochem Biophys Res Commun 2015;458:186-193.


113 Turner KL, Honasoge A, Robert SM, McFerrin MM, Sontheimer H: A proinvasive role for the Ca(2+) -activated K(+) channel KCa3.1 in malignant glioma. Glia 2014;62:971-981.


114 Smith RA, Hartley RC, Murphy MP: Mitochondria-targeted small molecule therapeutics and probes. Antioxid Redox Signal 2011;15:3021-3038.


115 Tedesco S, Scattolini V, Albiero M, Bortolozzi M, Avogaro A, Cignarella A, Fadini GP: Mitochondrial Calcium Uptake Is Instrumental to Alternative Macrophage Polarization and Phagocytic Activity. Int J Mol Sci 2019;20:4966.


116 Rimessi A, Bezzerri V, Patergnani S, Marchi S, Cabrini G, Pinton P: Mitochondrial Ca2+-dependent NLRP3 activation exacerbates the Pseudomonas aeruginosa-driven inflammatory response in cystic fibrosis. Nat Commun 2015;6:6201.
