Ca2+/Calmodulin Binding to STIM1 Hydrophobic Residues Facilitates Slow Ca2+-Dependent Inactivation of the Orai1 Channel
Rajesh Bhardwaja,b Bartłomiej S. Augustyneka,b Ebru Ercan-Herbstc,d
Palanivel Kandasamya,b Matthias Seedorfd Christine Peinelte
Matthias A. Hedigera,b
aMembrane Transport Discovery Lab, Department of Nephrology and Hypertension, Inselspital Bern, Bern, Switzerland, bDepartment of Biomedical Research, University of Bern, Bern, Switzerland, cBioMed X Innovation Center, Heidelberg, Germany, dCenter for Molecular Biology, University of Heidelberg, Heidelberg, Germany, eInstitute of Biochemistry and Molecular Medicine, University of Bern, Bern, Switzerland
Key Words
STIM1 • SOCE • ICRAC • SCDI • Calmodulin • Orai1
Abstract
Background/Aims: Store-operated Ca2+ entry (SOCE) through plasma membrane Ca2+ channel Orai1 is essential for many cellular processes. SOCE, activated by ER Ca2+ store-depletion, relies on the gating function of STIM1 Orai1-activating region SOAR of the ER-anchored Ca2+-sensing protein STIM1. Electrophysiologically, SOCE is characterized as Ca2+ release-activated Ca2+ current (ICRAC). A major regulatory mechanism that prevents deleterious Ca2+ overload is the slow Ca2+-dependent inactivation (SCDI) of ICRAC. Several studies have suggested a role of Ca2+/calmodulin (Ca2+/CaM) in triggering SCDI. However, a direct contribution of STIM1 in regulating Ca2+/CaM-mediated SCDI of ICRAC is as yet unclear. Methods: The Ca2+/CaM binding to STIM1 was tested by pulling down recombinant GFP-tagged human STIM1 C-terminal fragments on CaM sepharose beads. STIM1 was knocked out by CRISPR/Cas9 technique in HEK293 cells stably overexpressing human Orai1. Store-operated Ca2+ influx was measured using Fluorometric Imaging Plate Reader and whole-cell patch clamp in cells transfected with STIM1 CaM binding mutants. The involvement of Ca2+/CaM in SCDI was investigated by including recombinant human CaM in patch pipette in electrophysiology. Results: Here we identified residues Leu374/Val375 (H1) and Leu390/Phe391 (H2) within SOAR that serve as hydrophobic anchor sites for Ca2+/CaM binding. The bifunctional H2 site is critical for both Orai1 activation and Ca2+/CaM binding. Single residue mutations of Phe391 to less hydrophobic residues significantly diminished SOCE and ICRAC, independent of Ca2+/CaM. Hence, the role of H2 residues in Ca2+/CaM-mediated SCDI cannot be precisely evaluated. In contrast, the H1 site controls exclusively Ca2+/CaM binding and subsequently SCDI, but not Orai1 activation. V375A but not V375W substitution eliminated SCDI of ICRAC caused by Ca2+/CaM, proving a direct role of STIM1 in coordinating SCDI. Conclusion: Taken together, we propose a mechanistic model, wherein binding of Ca2+/CaM to STIM1 hydrophobic anchor residues, H1 and H2, triggers SCDI by disrupting the functional interaction between STIM1 and Orai1. Our findings reveal how STIM1, Orai1, and Ca2+/CaM are functionally coordinated to control ICRAC.
Introduction
Calcium (Ca2+) regulates a wide array of physiological functions in eukaryotic cells. The endoplasmic reticulum (ER) is the major intracellular Ca2+ store and, upon its depletion, e.g. through activation of IP3 receptors, a refilling process known as store-operated calcium entry (SOCE) is initiated [1]. SOCE relies on ER-anchored luminal Ca2+-sensing STIM proteins (STIM1 and STIM2), and Orai Ca2+ channels (Orai1, Orai2 and Orai3) in the plasma membrane (PM), with STIM1 and Orai1 playing a predominant role in most cell types [1-5]. Following ER Ca2+ store depletion, STIM1 proteins undergo conformational changes and oligomerization, leading to exposure of different STIM1 domains [6-14]. STIM1 proteins are targeted to PI(4, 5)P2 anchored in the inner leaflet of the PM via their C-terminal lysine (K)-rich domain, resulting in a physical coupling of ER and PM [13, 15, 16]. The STIM1 Orai1-activating region SOAR activates Ca2+-selective Orai1 channels in the PM [17], leading to influx of Ca2+ that is electrophysiologically characterized as Ca2+ release-activated Ca2+ current (ICRAC) [18]. CRAC channel-mediated Ca2+ influx is essential for the acute refilling of ER Ca2+ stores [19], as well as for the activation of multiple Ca2+-dependent downstream effectors such as NFAT [1, 20-22]. STIM1-mediated Orai1 activation mechanisms have been widely studied in the past decade [23, 24]. STIM2 has a similar function in gating Orai1 but responds to smaller decreases in ER Ca2+ concentrations [25, 26].
Following CRAC channel activation, regulation of ICRAC is critically important to maintain Ca2+ homeostasis and to prevent deleterious intracellular Ca2+ overload. CRAC channel inactivation is known to be triggered by the elevation of cytosolic Ca2+ [27, 28]. Two spatiotemporally distinct Ca2+-dependent inactivation (CDI) mechanisms, namely slow Ca2+-dependent inactivation (SCDI) and fast Ca2+-dependent inactivation (FCDI), jointly control Ca2+ entry through CRAC channels [29, 30]. Both SCDI and FCDI regulate the activation of Ca2+ dependent transcription factors [31, 32]. FCDI develops over milliseconds and is reduced upon whole cell dialysis with high concentrations of the rapid Ca2+ buffer BAPTA but is unaffected by the slower Ca2+ buffer EGTA which has at least 100 times lower Ca2+ on- and off-rates [33, 34]. SCDI, on the other hand, develops over tens of seconds and requires a global rise in cytosolic Ca2+. SCDI is suppressed upon whole cell dialysis with high concentrations of either BAPTA or EGTA [27, 28]. In various cell types, the rate and extent of SCDI is modulated by mitochondrial Ca2+ buffering [35-39]. In addition, STIM1-associated ER membrane protein (SARAF) has been reported to facilitate both SCDI and FCDI of CRAC channels [40-43]. In resting cells, the C-terminal inhibitory domain (CTID) of STIM1 (residues 448-530) implicated in both SCDI [40] and FCDI [44-46], facilitates the interaction of SARAF with SOAR and prevents the spontaneous activation of STIM1. Store depletion causes an initial dissociation of SARAF from SOAR to allow CRAC channel activation. Subsequently, CTID-assisted reassociation of SARAF with SOAR has been proposed as a mechanism for SARAF-mediated SCDI of CRAC channels [40].
It is well-known that the ubiquitous Ca2+ sensor calmodulin (CaM) upon binding of cytosolic Ca2+ (Ca2+/CaM) undergoes a conformational change and exposes hydrophobic protein binding regions. Ca2+/CaM binds to numerous proteins and modulates various functions [47, 48]. Ca2+/CaM plays fundamentally important regulatory roles in numerous ion channels including triggering of CDI [49]. Dysfunctions in Ca2+/CaM based regulatory mechanisms are linked to several human diseases [49-52]. The key components of the CRAC machinery, STIM and Orai channel proteins have been shown to interact with Ca2+/CaM [16, 46, 53-60]. However, Ca2+/CaM, STIM1 and Orai1 interaction sites and the underlying regulatory mechanism of SCDI still remain unclear. Initially, it was suggested that binding of Ca2+/CaM to the N-terminus of Orai1 (residues Y80 and W76) regulates the FCDI of CRAC channels [46]. Yet, it was shown that these Orai1 residues enable conformational changes within the pore, leading to CRAC channel inactivation without the requirement of Ca2+/CaM [59]. STIM1 K-rich domain binds Ca2+/CaM and is required for the STIM1-SARAF interaction as well as for SARAF-mediated SCDI of ICRAC [43] [16, 54]. Deletion of the K-rich domain of STIM1 led to only a small decrease in Ca2+/CaM binding, suggesting that there are likely additional Ca2+/CaM binding motifs in STIM1 [16]. Recently, it was shown that Leu390/Phe391 residues in SOAR interact with Ca2+/CaM [61]. Substituting Leu390/Phe391 with serines diminished binding of Ca2+/CaM to STIM1 but also Orai1 activation independent of Ca2+/CaM [61].
Our previous in silico analysis of STIM1 amino acid sequence on CaM-target database server suggested the presence of a CaM binding domain within SOAR (CaMBDSOAR, residues 372-394). We showed that within the CaMBDSOAR both H1 (Leu374/Val375) and H2 (Leu390/Phe391) hydrophobic residue sites are crucial for binding of Ca2+/CaM to STIM1. Based on these findings, we hypothesized that STIM1 H1/H2 site(s) play a role in Ca2+/CaM-mediated SCDI of CRAC channels. Mutation of H2 residues or only Phe391 directly interfered with Orai1 activation independently of Ca2+/CaM, preventing precise SCDI analysis. In contrast, H1 is dispensable for Orai1 activation but critical for Ca2+/CaM binding. Substitution of Val375 in H1 to alanine eliminates Ca2+/CaM-mediated SCDI of ICRAC, whereas substitution to tryptophan retains Ca2+/CaM-mediated SCDI. Our findings therefore provide a direct functional link between association of Ca2+/CaM to STIM1 and SCDI of CRAC channels, and segregate the roles of H1 and H2 residues of STIM1 in Orai1 activation and slow Ca2+-dependent Ca2+/CaM-mediated inactivation.
Materials and Methods
Plasmids
Bacterial expression and purification constructs: The bacterial expression and purification pET15b construct carrying the N–terminally 6X–His–GFP tagged cytosolic part of human STIM1 [15] was modified by site-directed mutagenesis (SDM) to generate a construct encoding for protein lacking the C-terminal K (lysine)-rich domain [16]. A stop codon (TAG) was introduced after residue position 670 of STIM1 by SDM using 5’-GAC TCC AGC CCA GGC TAG CGG AAG AAG TTT CCT-3’ forward and 5’-AGG AAA CTT CTT CCG CTA GCC TGG GCT GGA GTC-3’ reverse primers. Thus, obtained N–terminally 6X–His–GFP tagged cytosolic part of hSTIM1 lacking the K-rich domain (STIM1CT-∆K) construct was further modified by SDM to mutagenize the H1 and H2 hydrophobic positions in hSTIM1 putative Ca2+/CaM binding domain. The Leu390 and Phe391 residues were both mutated to alanine (H2AA) in the STIM1CT-∆K pET15b construct by SDM using 5’-AAG AAG AGA AAC ACA GCC GCT GGC ACC TTC CAC GTG-3’ forward and 5’-CAC GTG GAA GGT GCC AGC GGC TGT GTT TCT CTT CTT-3’ reverse primers. Leu374 and Val375 were both mutated to alanine (H1AA) in the STIM1CT-∆K pET15b construct by SDM using 5’-GCT GAG AAG CAG CTG GCG GCG GCC AAG GAG GGG GCT-3’ forward and 5’-AGC CCC CTC CTT GGC CGC CGC CAG CTG CTT CTC AGC-3’ reverse primers. Similarly, the H1AA substitutions were also performed in the STIM1CT-∆K H2AA construct in order to combine the H1AA and H2AA mutations in the STIM1CT-∆K pET15b construct.
In order to remove the Ca2+/CaM binding domain completely from the STIM1CT-∆K pET15b construct, first, an additional PmlI restriction site was engineered by SDM after K371 residue of STIM1 using 5’-CAA AAT GCT GAG AAG CAC GTG CTG GTG GCC AAG GAG-3’ forward and 5’-CTC CTT GGC CAC CAG CAC GTG CTT CTC AGC ATT TTG-3’ reverse primers. Another PmlI restriction site was already present in the construct after F394 residue of STIM1. The PmlI digested construct, after removal of the 69 bp fragment, was extracted by gel purification and ligated using T4 DNA ligase (NEB). This resulted into a 7.719 kB STIM1CT-∆K ∆CaMBDSOAR pET15b construct where STIM1 residues 372-394 were removed.
Mammalian expression constructs: The HA-hSTIM1 peGFP-N1 construct [62] was modified by inserting mCherry after the HA-tag to create the HA-mCherry-hSTIM1 construct (STIM1). mCherry was amplified from the pmCherry-N1 construct kindly provided by Dr. Holger Lorenz (University of Heidelberg, Germany) using the 5’-ATA TAA GCT TGC ACC GGT CGC CAC CAT GGT GAG CAA GGG C-3’ forward and 5’-ATA TAA GCT TGG AGC CTG CGT ACA AAC TTG TTG ATC CGG ACT TGT ACA GCT CGT CCA TGC CGC CGG-3’ reverse primers. The obtained PCR product with 5’ and 3’ HindIII restriction site overhangs was digested with HindIII enzyme and ligated into the HindIII digested HA-hSTIM1 peGFP-N1 vector. In the same manner, the HA-hSTIM2 peGFP-N1 construct [62] was modified by inserting mCherry after the HA-tag to create the HA-mCherry-hSTIM2 construct (STIM2). Both HA-mCherry-hSTIM1 and HA-mCherry-hSTIM2 constructs contained the signal sequence of hSTIM1 just upstream of the HA-tag.
The HA-mCherry (control) plasmid was constructed by introducing a stop codon after mCherry in the HA-mCherry-hSTIM1 peGFP-N1 construct by SDM using 5’-GCA TGG ACG AGC TGT ACA AGT AGG GAT CAA CAA GTT TGT ACG CAG-3’ forward and 5’-CTG CGT ACA AAC TTG TTG ATC CCT ACT TGT ACA GCT CGT CCA TGC-3’ reverse primers. The control plasmid also contained the signal sequence of hSTIM1 just upstream of the HA-tag.
The Leu390 and Phe391 residues were both mutated to alanine in HA-mCherry-hSTIM1 peGFP-N1 construct by SDM using 5’-GAT AAA AAA GAA GAG AAA CAC AGC CGC TGG CAC CTT CCA CGT GGC CCA C-3’ forward and 5’-GTG GGC CAC GTG GAA GGT GCC AGC GGC TGT GTT TCT CTT CTT TTT TAT C-3’ reverse primers to generate HA-mCherry-hSTIM1-H2AA peGFP-N1 construct (STIM1 H2AA). The V394 and F395 residues were both mutated to alanine in HA-mCherry-hSTIM2 peGFP-N1 construct by SDM using 5’-TTA AAA AGA AGA GAA GCA CAG CCG CTG GGA CTC TGC ACG TTG CAC A-3’ forward and 5’-TGT GCA ACG TGC AGA GTC CCA GCG GCT GTG CTT CTC TTC TTT TTA A-3’ reverse primers to generate HA-mCherry-hSTIM2-H2AA peGFP-N1 construct (STIM2 H2AA).
The C-terminal K-rich domain deletion mutant of HA-mCherry-hSTIM1 in peGFP-N1 was constructed by inserting a stop codon before the last 15 residues of hSTIM1 in the construct by SDM using 5’-GAC TCC AGC CCA GGC TAG CGG AAG AAG TTT CC-3’ forward and 5’-GGA AAC TTC TTC CGC TAG CCT GGG CTG GAG TC-3’ reverse primers (STIM1-∆K). F391W substitution in the STIM1-∆K construct was made by SDM using 5’-GAA GAG AAA CAC ACT CTG GGG CAC CTT CCA CGT GGC-3’ forward and 5’-GCC ACG TGG AAG GTG CCC CAG AGT GTG TTT CTC TTC-3’ reverse primers. F391L substitution in the STIM1-∆K construct was made by SDM using 5’-GAA GAG AAA CAC ACT CCT GGG CAC CTT CCA CGT G-3’ forward and 5’-CAC GTG GAA GGT GCC CAG GAG TGT GTT TCT CTT C-3’ reverse primers. F391V substitution in the STIM1-∆K construct was made by SDM using 5’-GAA GAG AAA CAC ACT CGT TGG CAC CTT CCA CGT G-3’ forward and 5’-CAC GTG GAA GGT GCC AAC GAG TGT GTT TCT CTT C-3’ reverse primers. F391A substitution in the STIM1-∆K construct was made by SDM using 5’-GAA GAG AAA CAC ACT CGC TGG CAC CTT CCA CGT G-3’ forward and 5’-CAC GTG GAA GGT GCC AGC GAG TGT GTT TCT CTT C-3’ reverse primers. The H2AA (L374A-V375A) substitutions in STIM1 as well as STIM1-∆K constructs were performed by SDM using the same primer pair mentioned above in the bacterial expression and purification constructs. In STIM1-∆K construct, Val375 of STIM1 was mutagenized to tryptophan by SDM using 5’-GCT GAG AAG CAG CTG CTG TGG GCC AAG GAG GGG GCT GAG-3’ forward and 5’-CTC AGC CCC CTC CTT GGC CCA CAG CAG CTG CTT CTC AGC-3’ reverse primers. Val375 substitution to alanine in STIM1-∆K construct was performed by SDM using 5’-GCT GAG AAG CAG CTG CTG GCG GCC AAG GAG GGG GCT GAG-3’ forward and 5’-CTC AGC CCC CTC CTT GGC CGC CAG CAG CTG CTT CTC AGC-3’ reverse primers.
All of the oligonucleotides were synthesized by Microsynth AG (Balgach). The SDM reactions were performed using Pfu Turbo DNA polymerase (Agilent Technologies). The correct clones were verified by Sanger sequencing (Microsynth AG).
Protein purification
The 6X-His-GFP tagged bacterial expression constructs were transformed into E. coli BL21 (DE3) Codon Plus strain. For pre-culture, a single colony was inoculated in 50 ml of LB containing 100 µg/ml ampicillin and cultured at 37°C for 6-8 h. The culture was then diluted to 0.1 OD600 in 500 ml LB containing 100 µg/ml ampicillin and grown for another 1-1.5 h at 37°C until the OD600 reached 0.4-0.6. The culture was cooled down to room temperature by incubating for 30 min. IPTG (Applichem) was added to the culture to a final concentration of 0.25 mM to induce protein expression and the culture was grown overnight at 25°C. Next day, the culture was centrifuged at 4000 rpm for 10 min and the pellet was resuspended in 30 ml of ice-cold lysis buffer containing 50 mM Tris-HCl (pH 7.5), 250 mM NaCl, 20 mM imidazole and 0.5 mM EDTA with freshly added 1 mM PMSF, 10 mM b-mercaptoethanol and 1X CompleteTM protease inhibitor cocktail (Roche). The resuspended bacteria were lysed using a microfluidizer (EmulsiFlex C5, Avestin) at a pressure of 15,000-20,000 psi. The lysate was then subjected to ultracentrifugation using a pre-cooled 45 Ti rotor at 120000 g for 45 min at 4°C. The supernatant was applied to 2 ml Ni-NTA agarose resin (Qiagen) pre-equilibrated with lysis buffer and incubated on a rotor for 1 h at 4°C. 3-5 washes with 25 ml lysis buffer were performed to eliminate non-specific binding of other proteins. Thereafter, the beads were incubated on the rotor with 2 ml elution buffer containing 50 mM Tris-HCl (pH 7.5), 250 mM NaCl and 300 mM imidazole for 1 h at 4°C. The supernatant from the beads was then loaded into dialysis membrane (Spectrum) with a molecular weight cut-off of 12-14 kDa. A step-wise dialysis was performed at 4°C for the first hour in 500 ml of 50 mM Tris-HCl (pH 7.5), 250 mM NaCl and 150 mM imidazole and for the second hour in 500 ml of 50 mM Tris-HCl (pH 7.5), 250 mM NaCl and 75 mM imidazole. Finally, overnight dialysis was performed in 1 liter of 50 mM Tris-HCl (pH 7.5) buffer containing 250 mM NaCl and no imidazole. Next day, the dialyzed proteins were collected into 1.5 ml Eppendorf tubes and stored at -20°C.
Ca2+/calmodulin binding assay
30 µl of the CaM affinity resin (Agilent Technologies) was washed with CaM binding buffer (25 mM Tris-HCl pH 7.5, 150 mM NaCl, 0.1% NP-40, 1 mM CaCl2). The 6X-His-GFP recombinant proteins (1 µM) were incubated with CaM affinity resin in 600 µl of CaM binding buffer for 1 h at 4°C, rotating. The resin was then washed four times with the CaM binding buffer for elimination of any nonspecifically bound proteins. After removal of the unbound supernatant, 2X Laemmli sample buffer was added to the resin and boiled at 95°C for 5 min. Samples from the input, unbound and eluted fractions (bound) were analyzed on a 10% SDS-PAGE followed by Western blotting with a GFP antibody (SantaCruz).
CRISPR/Cas9
The Benchling CRISPR webtool (https://benchling.com/crispr) was used to design two different guide RNA pairs within exon 1 of human STIM1 gene. STIM1 gRNA1 (for: 5’-CAC CGT TCT GTG CCC GCG GAG ACT C-3’ and rev: 5’-AAA CGA GTC TCC GCG GGC ACA GAA C-3’) and gRNA2 (for: 5’-CAC CGT ATG CGT CCG TCT TGC CCT G-3’ and rev: 5’-AAA CCA GGG CAA GAC GGA CGC ATA C-3’) were synthesized by Microsynth AG (Balgach). These complementary gRNA oligo pairs with BbsI compatible overhangs were annealed by incubating for 5 min at 95°C in a thermocycler and then ramping down to 25°C at 5°C/min. The resulting double stranded DNA guide inserts were cloned into BbsI-digested px330.pgkpuro CRISPR/Cas9 vector [63] using T4 DNA ligase (NEB).
HEK293 cells stably overexpressing Orai1 (HEKO1) seeded in a T25 flask upon reaching 70-80% confluence, were co-transfected with 2 μg of each CRISPR construct (gRNA1 and gRNA2) along with 1 µg of pmCherry-N1 using Lipofectamine® 2000 (11668019, Thermo Fisher Scientific). The mCherry-positive transfectants were sorted as single cells in a 96-well plate by FACS on BD FACSAriaTM III sorter. Ten single-cell derived HEKO1 cell clones were analyzed for STIM1 knock-out using a 96-well plate SOCE functional assay on Fluorometric Imaging Plate Reader (FLIPR Tetra®, Molecular Devices). A single-cell derived clone C8 was functionally confirmed to have undergone knockout of STIM1. The knock-out of STIM1 was further confirmed by Western blotting.
SOCE assay on FLIPR
HEKO1 as well as HEKO1 STIM1-/- cell cultures were maintained at 37°C and 5% CO2 in MEM (31095-029, Thermo Fisher Scientific) supplemented with 10% FBS (10270106, Fisher Scientific), 1% Pen/Strep (P4333, Sigma-Aldrich) and 1 µg/ml puromycin. HEKO1 and HEKO1 STIM1-/- cells were seeded at a density of 50,000 cells/well on Corning® 96-well black polystyrene clear bottom microplates (CLS3603, Sigma–Aldrich) in 100 µl phenol red free MEM (51200-046, Thermo Fisher Scientific) supplemented with 2 mM L-Glutamine (G7513, Sigma-Aldrich). The cells were allowed to grow at 37°C and 5% CO2 until 90-100% confluent (16-20 h).
Calcium 5 dye stock solution was prepared by dissolving a vial from Calcium 5 assay bulk kit (R8186, Molecular Devices) in 10 ml sterile-filtered nominal Ca2+-free (NCF), modified Krebs buffer containing 117 mM NaCl, 4.8 mM KCl, 1 mM MgCl2, 5 mM D-glucose, 10 mM HEPES (pH 7.4) and 500 µl aliquots were stored at -20°C. The dye stock was diluted 1:20 in NCF Krebs buffer and after removing the medium of the cells, 50 µl of the diluted dye was applied per well. The cells were incubated at 37°C for 1 h in dark. The fluorescence Ca2+ measurements were carried out using FLIPR Tetra® where cells were excited using a 470–495 nm LED module, and the emitted fluorescence signal was filtered with a 515–575 nm emission filter (manufacturer’s guidelines). Stable baselines were established for 50 sec before 50 µl of 2 µM (2X) thapsigargin (T9033, Sigma-Aldrich) freshly prepared in NCF Krebs buffer was robotically administered to the cells to deplete the Ca2+ stores. Cells were incubated and fluorescence was monitored in the presence of thapsigargin for a total of 10-15 min. Finally, 50 µl of 3X CaCl2 (6 mM) prepared in NCF Krebs buffer was administered per well leading to a final 2 mM CaCl2 concentration. The SOCE signal was recorded for another 5 min.
For transfection HEKO1 STIM1-/- cells were seeded at a density of 26,000 cells/well. Next day, at around 80% confluence, the cells were transfected with 100 ng/well of desired STIM or control plasmid DNA using Lipofectamine® 2000 (Thermo Fisher Scientific). 16-20 h post transfection, the cells were subjected to SOCE assay on FLIPR as described above.
Electrophysiology
Whole-cell patch-clamp experiments were performed as described previously [64]. Briefly, HEKO1 STIM1-/- cells were trypsinized and seeded into the 6-well plate. Next, when the cells reached confluence of approx. 80%, they were transiently transfected with plasmids encoding selected STIM1 mutants. Briefly, 5 μl Lipofectamine® 2000 (Thermo Fisher Scientific) and 2 μg STIM1 plasmid DNA were mixed in Opti-MEMTM (11058021, Thermo Fisher Scientific) and applied onto the cells in a single well. After 6 h of incubation with the Lipofectamine DNA complexes, cells were trypsinized and reseeded sparsely into the 35 x 10 mm (diameter x height) cell culture petri dishes.
CRAC currents were measured after 18 h of further incubation at 37 °C in humidified 5% CO2 atmosphere. Only cells showing comparable (modest) fluorescence levels of mCherry-STIM1 were selected for recordings. The experiments were performed at room temperature, in whole-cell configuration. Pipettes were pulled from 1.5 mm thin-wall borosilicate glass capillaries with filament (BF150-86-7.5, Sutter Instruments) using a horizontal P-1000 puller (Sutter Instruments) to obtain a serial resistance of around 2.5 MW. Currents were recorded with PatchMaster software (HEKA Elektronik), using an EPC-10 USB amplifier (HEKA Elektronik). Upon establishment of giga seal and successful break-in into the single, mCherry fluorescent cell, 50-ms voltage ramps spanning −150 to +150 mV were delivered from a holding potential of 0 mV every 2 seconds. Currents were filtered at 2.9 kHz and digitized. Liquid junction potential was 10 mV and currents were determined and corrected before each voltage ramp. Leak currents were corrected by subtracting the initial ramp currents from all subsequent currents using FitMaster software (HEKA Elektronik). Currents were extracted at −80 and +80 mV and normalized to cell capacity (size).
Bath solution contained 120 mM NaCl, 10 mM tetraethylammonium chloride (TEA-Cl), 2 mM MgCl2, 10 mM CaCl2, 10 mM HEPES, and 32 mM glucose (pH 7.2 with NaOH, 300 mOsmol). Calcium-free internal solution contained 120 mM Cs-glutamate, 3 mM MgCl2, 10 mM HEPES, 0.05 mM D-myo-inositol 1, 4,5-trisphosphate, trisodium salt (IP3) (407137, Calbiochem), 20 mM EGTA (pH 7.2 with CsOH, 310 mOsmol with glucose). Where applicable, in order to clamp the concentration of free calcium ions at 25 nM, 2.39 mM of CaCl2 was added to the internal solution (mentioned above) at room temperature, as calculated with the WEBMAXC standard tool available at University of California Davis Medical Center (https://somapp.ucdmc.ucdavis.edu/pharmacology/bers/maxchelator/webmaxc/webmaxcS.htm). When indicated, 50 µM CaM (BML-SE325-0001, Enzo Life Sciences) was added to the internal solution.
Western blotting
After running the input, unbound and eluted (bound) fractions from the CaM binding experiments on 10% SDS-PAGE, proteins were transferred onto Whatman® Protran® nitrocellulose membranes (0.45 μm pore size) by semi-dry blotting. The membranes were blocked in 5 % dry skimmed milk dissolved in 1X PBS containing 0.05 % (w/v) Tween (PBS-T) for 30 minutes at room temperature. The blots were incubated at 4 °C overnight with the rabbit polyclonal GFP antibody (sc-8334, Santa Cruz) in 1:5,000 dilution prepared in 5% milk in PBS-T. Next day the blots were washed for 20 min thrice with 1X PBS-T and incubated for 1 h at room temperature with the anti-rabbit secondary antibody coupled to horseradish peroxidase (HRP) prepared in 5% skimmed milk in PBS-T. The blots were washed three times (20 min each) with PBS-T and finally with PBS. After incubation with the chemiluminescence blotting substrate (Roche), light emission was acquired using LAS-4000 image analyzer (Fujifilm) and ImageQuant LAS 4000 (GE Healthcare).
HEKO1 and HEKO1 STIM1-/- cells after washing with PBS were lysed using ice-cold RIPA buffer (150 mM NaCl, 50 mM Tris-HCl pH 7.4, 5 mM EDTA, 1% Triton-X-100, 0.5% Deoxycholate, 0.1% SDS) with freshly added 1X protease inhibitor cocktail (Roche). Total cell lysates were spun down at 15,000 g for 10 min at 4°C. The supernatants were collected, and protein estimation was performed using DCTM protein assay (Bio-Rad). 20 µl cell lysate for each sample containing 20 µg total protein and 1X Laemmli buffer was separated on 10% SDS-PAGE. Similar procedure as described above was followed for Western blotting. Mouse monoclonal hOrai1 antibody (SAB4200273, Sigma-Aldrich) was used in a 1:200 dilution. Mouse monoclonal Tubulin antibody (T9028, Sigma-Aldrich) was used in a 1:2,000 dilution. Guinea pig polyclonal hSTIM1 antibody [62] raised against the N-terminus of hSTIM1 (residues 23-213) was used in a 1:1,000 dilution. HRP conjugated goat anti-mouse secondary antibody was used in a 1:3,000 dilution (172-1011, Bio-Rad). Peroxidase-conjugated affinipure goat anti-guinea pig secondary antibody was used in a 1:10,000 dilution (106-035-003, Jackson Immuno Research). The antibodies were prepared as above. After incubation of the membranes with the Western blotting substrate (RPN2106, GE Healthcare), the chemiluminescence was detected on an AmershamTM HyperfilmTM MP (GE Healthcare).
Analysis software and statistics
ImageJ was used to quantify the density of the bands from the Western blots of the CaM binding experiments. Fluorescence signals from FLIPR Tetra® were analyzed using the ScreenWorks 3.1.1.8 software (Molecular Devices). The SOCE activity was measured by quantifying the area under the curve (AUC) and slope of the curve of the fluorescence intensity trace(s), following administration of the final 2 mM CaCl2. The data are plotted as mean ± S.D. Igor Pro 6.3.7.2 (WaveMetrics) was used for ICRAC data analysis and the data are plotted as mean ± S.E.M. The statistical evaluation was carried out using both Student's t- and Mann Whitney U non-parametric tests using Microsoft® Excel and IBM® SPSS® v20.
Results

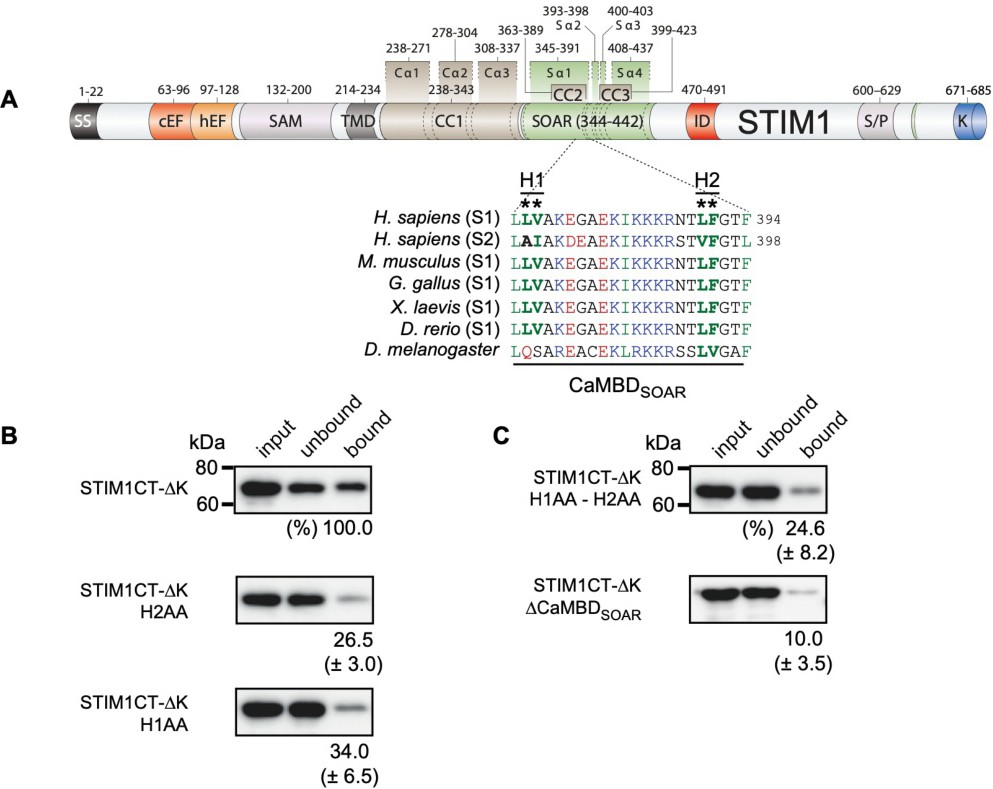

Critical residues for calmodulin binding within the SOAR domain
Ca2+/CaM is known to bind targets with two hydrophobic anchor residues spaced eight, twelve or fourteen residues apart from each other [65-68]. Our in silico analysis of the STIM1 sequence on the CaM-target database server [69] revealed a putative CaM binding site within the evolutionary conserved SOAR domain of STIM1. We identified two hydrophobic sites (H1 and H2) that may serve as anchors for Ca2+/CaM binding (Fig. 1A).
To investigate the role of hydrophobic interactions in STIM1-Ca2+/CaM complex formation exclusive of the Ca2+/CaM binding K-rich domain, we used recombinant protein constructs encoding N-terminally hexa-histidine and GFP-tagged STIM1 cytosolic terminus lacking the K-rich domain (STIM1CT-∆K). We mutated the following residues from H1 or H2 to alanines: Leu374 and Val375 from H1 (H1AA) and Leu390 and Phe391 from H2 (H2AA), or both in combination (H1AA-H2AA) and assessed protein binding to Ca2+/CaM-sepharose beads (Fig. 1B and C). The H2AA mutation led to approximately a 75% decrease in protein binding to Ca2+/CaM confirming previous findings of Li et al. with respect to the involvement of these residues of STIM1 in Ca2+/CaM binding (Fig. 1B). The mutation of our newly identified H1 site (H1AA) led to a 66% decrease in protein binding to Ca2+/CaM. These findings uncover that residues from both sites, H1 and H2, serve as hydrophobic anchors for Ca2+/CaM binding (Fig. 1B). The combined mutation of these hydrophobic residues at sites H1 and H2 (H1AA-H2AA) did not result in any further decrease in protein binding (Fig. 1C). Deletion of the entire CaMBDSOAR domain from STIM1CT-∆K led to a 90% drop in Ca2+/CaM binding (Fig. 1C). Overall, these findings highlight the significance of the hydrophobic residues at H1 and H2 sites in CaMBDSOAR for the formation of a STIM1-Ca2+/CaM complex.

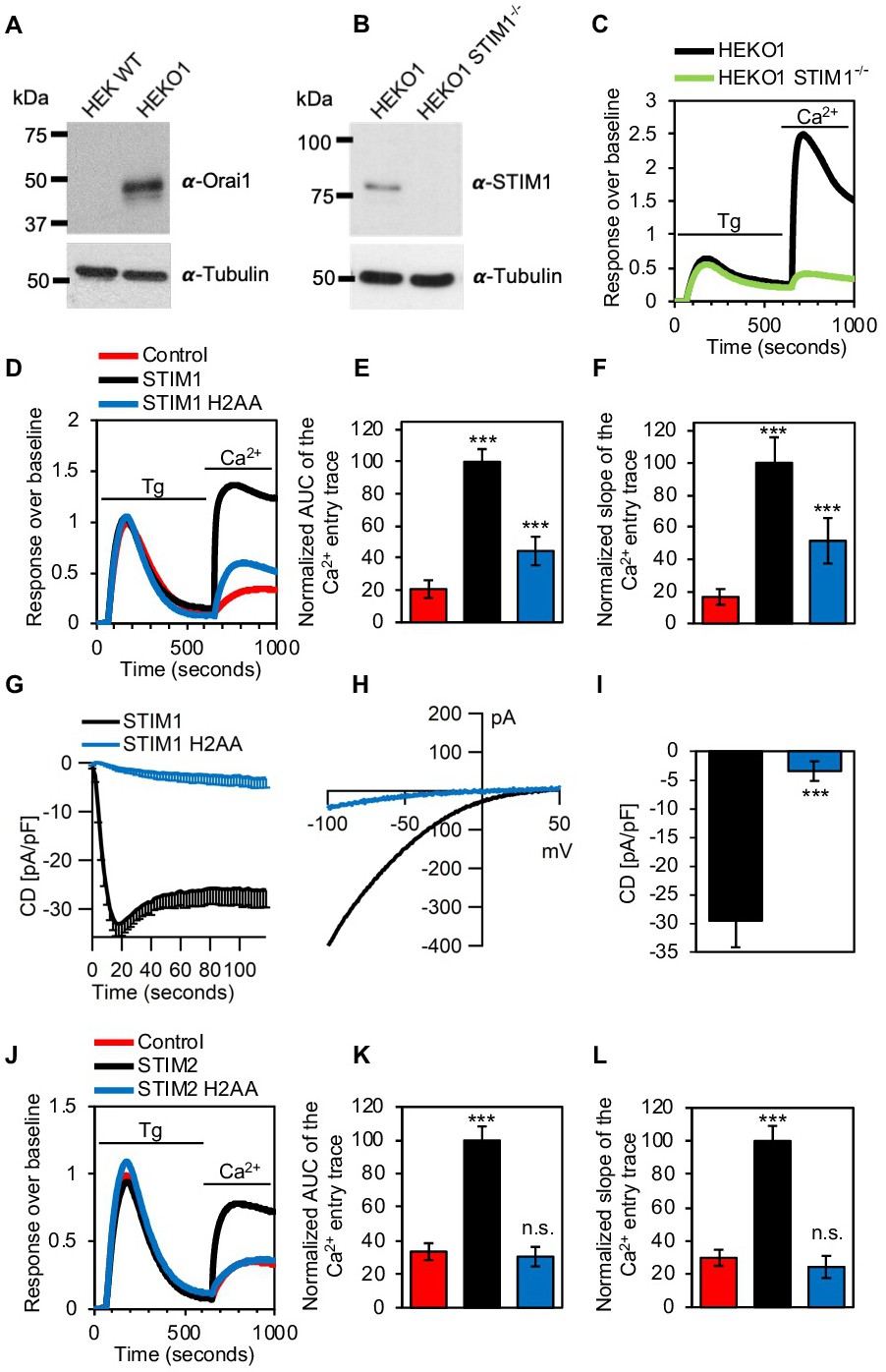

The H2 site of STIM1 CaMBDSOAR is critical for Orai1 activation
For further investigations, we generated a STIM1 deficient HEK293 cell line to eliminate endogenous STIM1 background expression. We knocked out STIM1 (STIM1-/-) in HEK293 cells stably overexpressing human wild type Orai1 (HEKO1) [70] using the CRISPR/Cas9 technique. Orai1 and STIM1 protein levels in HEKO1 cells and HEKO1 STIM1-/- cells are shown by Western blot analysis (Fig. 2A and B). Knockout of STIM1 in HEKO1 cells nearly abolished SOCE (Fig. 2C). Conversely, overexpression of human wildtype STIM1 in HEKO1 STIM1-/- cells rescued SOCE compared to control transfected cells (Fig. 2D). A thorough analysis of SOCE (area under the curve and rate of Ca2+ entry) is shown (Fig. 2E and F). Only a minor but significant rescuing effect was observed in cells expressing STIM1 H2AA (Fig. 2D, E and F). Next, ICRAC was evoked with 20 mM EGTA and 50 µM IP3 in the patch pipette. Consistent with the SOCE findings, expression of STIM1 H2AA in HEKO1 STIM1-/- cells resulted in significantly smaller ICRAC compared to STIM1 WT (Fig. 2G, H and I). The substitution of both H2 residues by serine (H2SS) completely failed to rescue SOCE and ICRAC (Supplementary Fig. S1 – for all supplemental material see www.cellphysiolbiochem.com) consistent with earlier findings [61]. In addition, we tested whether corresponding H2 residues in STIM2 are involved in Orai1 activation. Given the alignment of STIM1 and STIM2 (Fig. 1A), residues Leu390 and Phe391 in STIM1 correspond to residues Val394 and Phe395 in STIM2. Overexpression of human wildtype STIM2 in HEKO1 STIM1-/- cells resulted in an increase of SOCE compared to control transfected cells (Fig. 2J, K and L). Expression of STIM2 V394A-F395A (STIM2 H2AA) did not increase SOCE above control levels (Fig. 2J, K and L). Taken together, our results indicate that either, or both hydrophobic residues in STIM1 and STIM2 CaMBDSOAR H2 site are important for activation of SOCE.

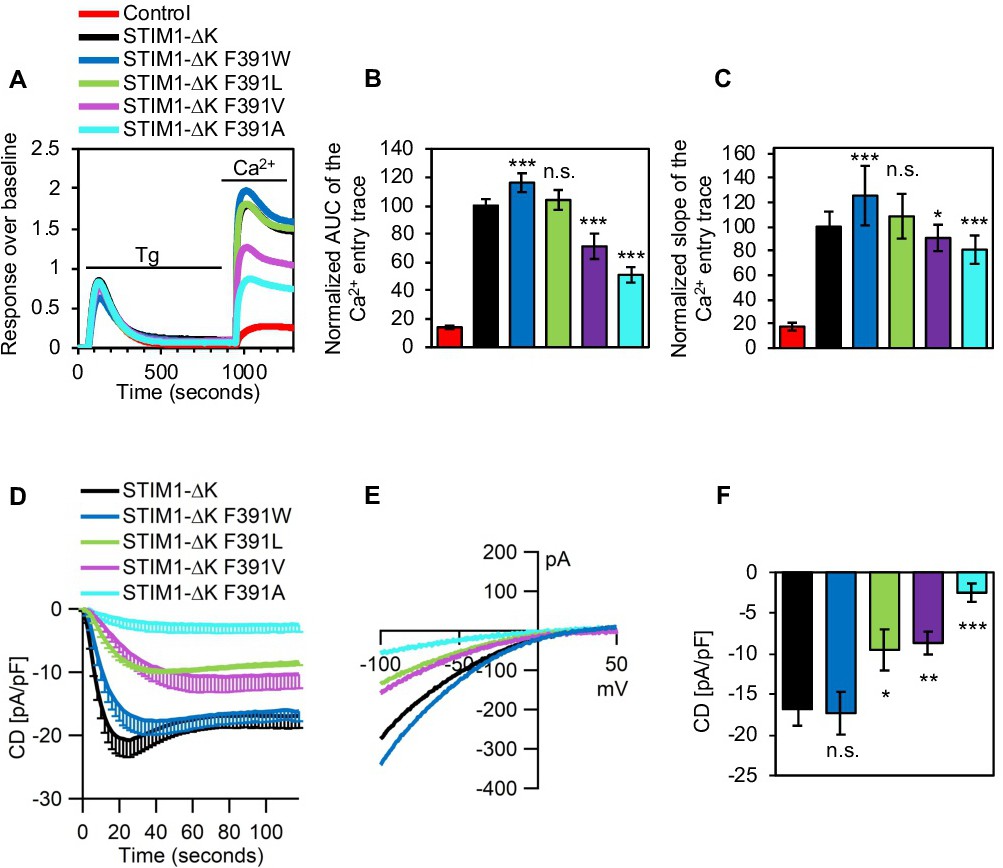

Phe391 within H2 of the STIM1 CaMBDSOAR is linked to Orai1 activation
Several residues within, or close to the STIM1 H1 and H2 sites of the CaMBDSOAR (Phe394, Leu390, Ile383, Ala376 and Leu373) are crucial for Orai1 coupling and activation [71-74]. In addition, several basic residues spanning CaMBDSOAR (Lys384, Lys385 and Lys386) are required for Orai1 activation [75-77]. Thus, it is difficult to evaluate whether contributions of individual residues of the H2 site of STIM1 are related to Ca2+/CaM-mediated SCDI, as the observed effects may simply be a result of altered Orai1 activation. Recently, the L390A substitution in STIM1 was shown to significantly impair Orai1 activation, abolishing ICRAC [74]. Therefore, we focused on substitutions of F391 in STIM1-∆K. We mutagenized F391 to amino acids with less hydrophobic side chains (valine or alanine) or to amino acids characterized by side chain hydrophobicity in the same range as phenylalanine (i.e. tryptophan or leucine) [78]. When compared to STIM1-∆K in HEKO1 STIM1-/- cells, expression of STIM1-∆K F391A or STIM1-∆K F391V resulted in reduced SOCE (Fig. 3A, B and C). Upon expression of STIM1-∆K F391L, SOCE remained unchanged and upon expression of STIM1-∆K F391W, a slight increase in SOCE was observed, compared to STIM1-∆K (Fig. 3A, B and C). When analyzing the effects of the F391 mutants on ICRAC, only the substitution of STIM1-∆K F391W preserved similar ICRAC, compared to STIM1-∆K (Fig. 3D, E and F). Substitutions of F391 with either valine or leucine resulted in a ~2-fold lower current density compared to STIM1-∆K (Fig. 3D, E and F). When STIM1-∆K F391A was expressed, ICRAC was reduced by ~85% (Fig. 3D, E and F). Strikingly, less hydrophobic substitutions of STIM1 F391 that are expected to mediate weaker Ca2+/CaM binding resulted in reduced SOCE instead of an increase in SOCE, under conditions that favor SCDI (Fig. 3A, B and C). In patch clamp experiments designed to prevent SCDI, several mutants of F391 resulted in reduced ICRAC per se (Fig. 3D, E and F). As shown before in Fig. 2, these results indicate that mutations in the H2 site of STIM1 directly alter Orai1 activity, independently of Ca2+/CaM-mediated SCDI. For this reason, STIM1 H2 mutants were not further analyzed in context of STIM1-dependent, Ca2+/CaM-mediated SCDI of ICRAC.

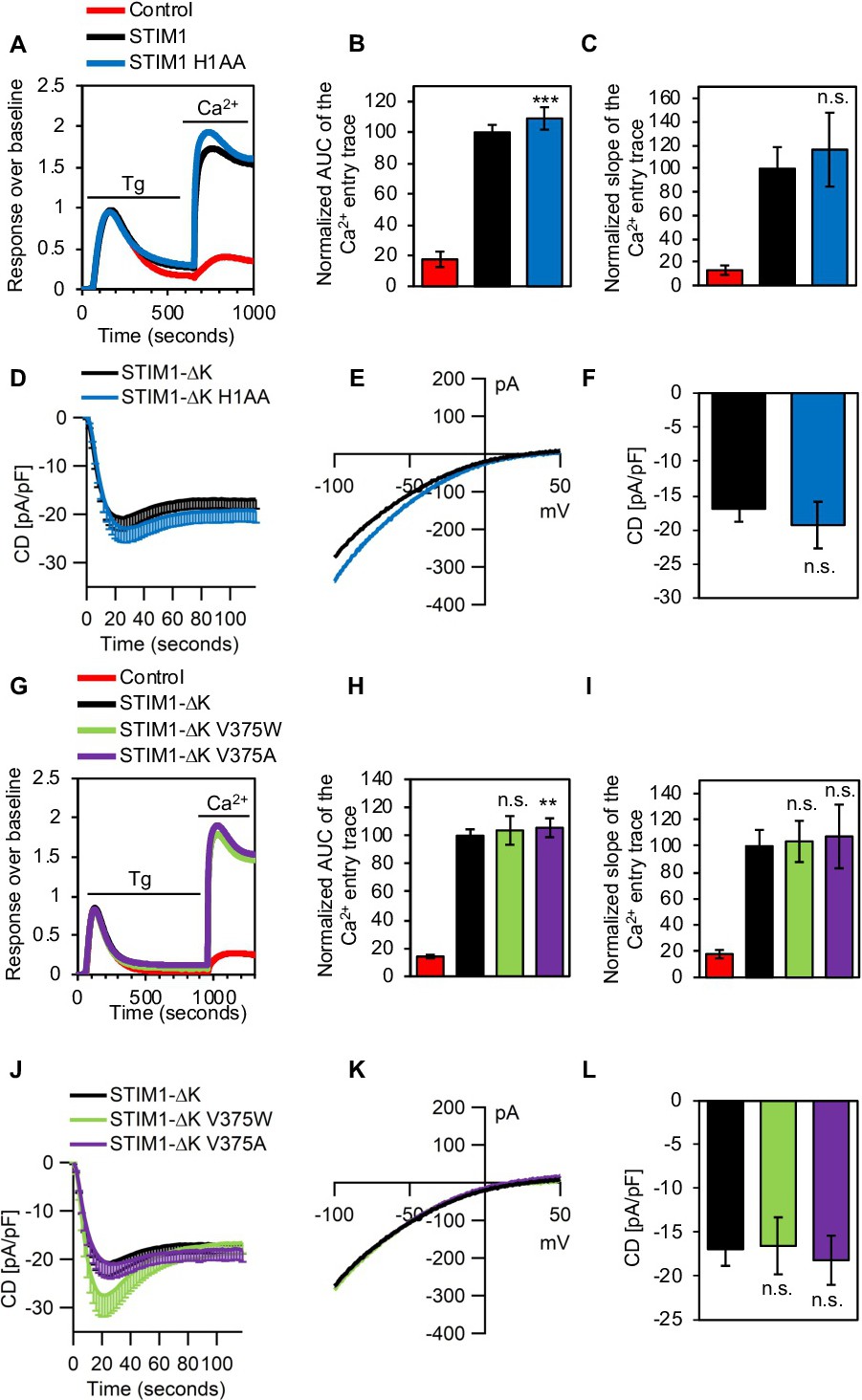

Contrary to H2, the H1 residues of CaMBDSOAR are not linked to Orai1 activation
We next assessed the effect of alanine substitutions at the H1 site of CaMBDSOAR on SOCE and ICRAC (see Fig. 1A). The H1AA mutant of STIM1 did not show any deficit in rescuing SOCE in HEKO1 STIM1-/- cells (Fig. 4A, B and C). STIM1-∆K H1AA also mediated a comparable ICRAC response with similar I-V characteristics as STIM1-∆K (Fig. 4D, E and F).
To further pin down the role of H1 residues in SOCE regulation, we substituted the residue Val375 to the more hydrophobic tryptophan residue (STIM1-∆K V375W) or the less hydrophobic alanine residue (STIM1-∆K V375A) [78]. None of the mutations changed SOCE (Fig. 4G, H and I) or ICRAC, when compared to STIM1-∆K (Fig. 4J, K and L). In conclusion, our findings demonstrate that the STIM1 Val375 hydrophobic residue at the H1 site is not critical for Orai1 activation. Hence, we further investigated Val375 in STIM1-dependent, Ca2+/CaM-mediated SCDI of ICRAC.

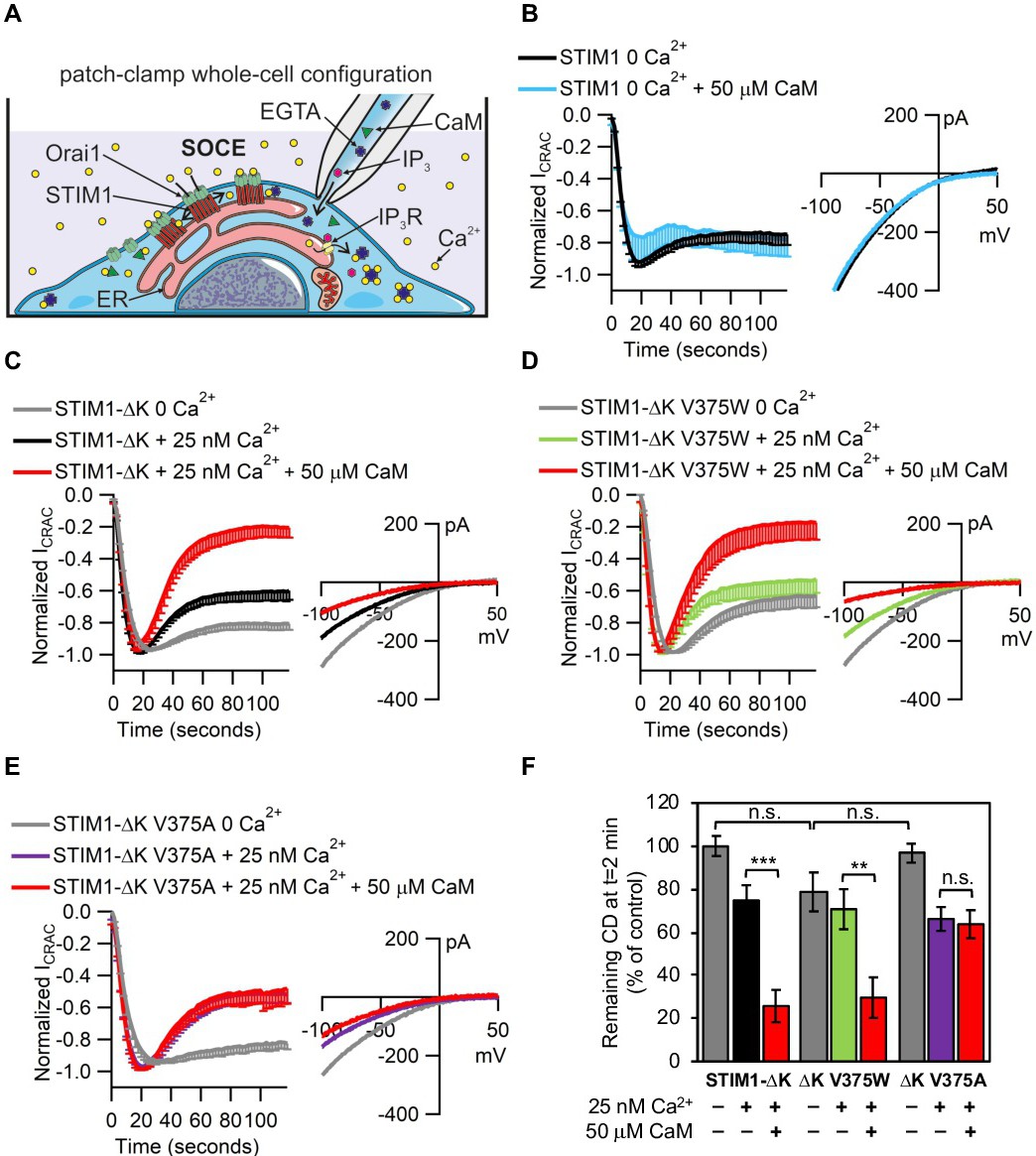

STIM1 Val375 is critical for Ca2+/CaM-mediated SCDI of ICRAC
To examine Ca2+/CaM-mediated SCDI, we first investigated whether CaM alone in absence of intracellular calcium ([Ca2+]i) affects SCDI of STIM1/Orai1-mediated ICRAC. Fig. 5A illustrates the whole-cell patch-clamp procedure designed and implemented to address this question. When [Ca2+]i was clamped to near zero with 20 mM EGTA, we observed no effect of 50 µM CaM on SCDI of ICRAC (Fig. 5B). In the presence of 25 nM [Ca2+]i and 50 µM CaM, STIM1-∆K/Orai1-mediated ICRAC decayed by ~75% in 2 min after break in, but only decayed by ~25% when only 25 nM [Ca2+]i was present (Fig. 5C and F). This suggests a role for cytosolic Ca2+/CaM in SCDI of ICRAC.
We observed that STIM1-∆K V375W/Orai1-mediated ICRAC had preserved SCDI compared to STIM1-∆K and underwent ~60% decay in the presence of both 25 nM [Ca2+]i and 50 µM CaM, compared to only ~10% decay in the presence of 25 nM [Ca2+]i alone (Fig. 5D and F). In contrast, addition of CaM together with 25 nM [Ca2+]i did not show any enhancement in SCDI of STIM1-∆K V375A/Orai1-mediated ICRAC, compared to the current in presence of only 25 nM [Ca2+]i (Fig. 5E and F).
Mutations in H1 do not alter activation of Orai1. Hydrophobic residue valine or tryptophan at 375 residue position in H1 is essential for Ca2+/CaM-mediated SCDI, as less hydrophobic amino acid alanine prevents SCDI. STIM1 Val375 in the H1 site controls Ca2+/CaM-mediated SCDI of ICRAC. In summary, our findings provide direct evidence that binding of Ca2+/CaM to STIM1 at the CaMBDSOAR triggers SCDI.
Discussion
For many years, activation of store-operated CRAC channels has been subject to intensive investigations. One regulatory mechanism, that prevents Ca2+ overload upon ICRAC activation is SCDI. In our study, we examined STIM1-dependent, Ca2+/CaM-mediated SCDI. We identified two hydrophobic anchor sites for Ca2+/CaM in STIM1, H1 and H2. The latter has been described earlier in the context of Ca2+/CaM mediated SCDI [61]. However, the study was limited by the usage of a non-functional STIM1 H2SS construct, that does not allow for the analysis of ICRAC SCDI. Consistently, in our hands, STIM1 H2SS failed to elicit SOCE or ICRAC probably as STIM1 H2SS did not oligomerize, form ER-PM contact sites in response to store depletion and did not interact with Orai1 [61].
In our study, we used a well-defined HEK293 expression system, lacking endogenous STIM1, and stably overexpressing Orai1, wherein we overexpressed K-rich domain deficient STIM1 constructs. The deletion of K-rich domain of STIM1 excludes recruitment of Ca2+/CaM to this domain, and prevents participation of SARAF in SCDI [43].
CaM binding assays, Ca2+ imaging and patch clamp experiments with STIM1 H2AA demonstrate that Leu390/Phe391 (H2) residues are required for both Orai1 activation and Ca2+/CaM binding. Single residue mutations of Phe391 resulted in altered Orai1 activation. Hence, analysis of structure-function relationship between H2 and Ca2+/CaM-dependent SCDI cannot be precisely evaluated. In contrast, H1 binds Ca2+/CaM and mutations did not alter Orai1 activation. Mutations of both Leu374 and Val375 or Val375, did not change Orai1 activation but were critical for Ca2+/CaM-mediated SCDI of ICRAC. Notably, mutation of hydrophobic Val375 to hydrophobic tryptophan did not alter Ca2+/CaM-mediated SCDI, probably since replacement by another hydrophobic residue does not change Ca2+/CaM binding properties. In contrast, a change to the less hydrophobic alanine completely abolished Ca2+/CaM-mediated SCDI.
The STIM2 SOAR domain residues 372-395 (corresponding to STIM1 368-391 residues) and the K-rich domain of STIM2 have both been shown to bind Ca2+/CaM [16, 55]. The Val375 residue position in STIM1 that we found to be critical for Ca2+/CaM-assisted SCDI corresponds to I379 in STIM2. Isoleucine is even more hydrophobic and bulkier than valine [78], indicating a role for I379 in STIM2 dependent Ca2+/CaM-mediated SCDI. In our hands, STIM2 H2AA did not activate Orai1, further highlighting a role of these residues in Orai1 activation by both STIM isoforms. Future studies will be required to show if I379 and/or the K-rich domain of STIM2 are required for Ca2+/CaM-mediated inactivation of STIM2/Orai1-elicited ICRAC and/or constitutive currents [79].
Conclusion
We here propose a mechanistic model, wherein binding of Ca2+/CaM to STIM1 hydrophobic sites H1 and H2 within CaMBDSOAR triggers SCDI of ICRAC. We show that H1 is not critical for Orai1 activation but for Ca2+/CaM binding. We demonstrate that the H1 residue Val375 is dispensable for CRAC channel activation but crucial for Ca2+/CaM-mediated SCDI of ICRAC. Also, H2 hydrophobic site is bifunctional: It is linked to both Orai1 activation and Ca2+/CaM-binding, with a likely role in mediating SCDI that cannot be segregated. Taken together, we demonstrate that CaMBDSOAR directly coordinates Ca2+/CaM-mediated SCDI of CRAC channels and we dissected the roles of CaMBDSOAR residues in Orai1 activation and Ca2+/CaM-mediated SCDI. We therefore reveal a fundamental role for STIM1 in coordinating Ca2+/CaM dependent SCDI of CRAC channels.
We thank T. Locher and Y. Amrein for excellent technical assistance. We would like to thank Dr. Stefan Mueller and Thomas Schaffer at the FACS facility, Institute of Pathology, University of Bern for their help in FACS sorting. We also thank Profs. Ivan Bogeksi and Barbara A. Niemeyer for providing the HEKO1 STIM1-/- cells generated by Dr. Dalia Alansary. We are very grateful to Prof. Nicolas Demaurex for his important feedback on the manuscript.
The authors have no ethical conflicts to disclose.
This work was supported by the Sinergia SNF grants CRSII5_180326 and CRSII3_160782 to M.A.H.
R.B. and C.P. designed the study, and M.A.H. and C.P. coordinated the study. R.B. and B.S.A. prepared the figures and R.B. wrote the manuscript. R.B. generated all the mammalian expression constructs and performed the FLIPR Tetra® Ca2+ imaging experiments and B.S.A. performed all the electrophysiology experiments, under the supervision of M.A.H. and C.P. E.E-H. generated the bacterial expression constructs and performed the Ca2+/CaM binding experiments under the supervision of M.S. during her PhD at the University of Heidelberg. R.B. and P.K. generated the HEKO1 STIM1-/- cells using CRISPR/Cas9 technique. All authors have read and approved the final version of this manuscript and agree to be accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. All persons designated as authors qualify for authorship, and all those who qualify for authorship are listed.
Disclosure Statement
The authors have no conflicts of interest to declare.
