Control of Insulin Release
by Transient Receptor Potential Melastatin 3 (TRPM3)
Ion Channels
Alexander Beckera Stefanie Mannebacha Ilka Mathara Petra Weissgerbera
Marc Freichelb,c Asia Perveen Loodina Claudia Fecher-Trosta Anouar Belkacemia
Andreas Becka Stephan Ernst Philippa
aExperimental and Clinical Pharmacology and Toxicology / Center for Molecular Signalling (PZMS), Saarland University, Homburg, Germany, bPharmakologisches Institut, Ruprecht-Karls-Universität Heidelberg, Heidelberg, Germany, cDZHK (German Centre for Cardiovascular Research), partner site Heidelberg/Mannheim, Heidelberg, Germany
Key Words
Transient receptor potential M3 channels (TRPM3) • Calcium • Glucose-stimulated insulin secretion • CRISPR/Cas • INS-1 • Trpm3 knockout
Abstract
Background/Aims: The release of insulin in response to increased levels of glucose in the blood strongly depends on Ca2+ influx into pancreatic beta cells by the opening of voltage-gated Ca2+ channels. Transient Receptor Potential Melastatin 3 proteins build Ca2+ permeable, non-selective cation channels serving as pain sensors of noxious heat in the peripheral nervous system. TRPM3 channels are also strongly expressed in pancreatic beta cells that respond to the TRPM3 agonist pregnenolone sulfate with Ca2+ influx and increased insulin release. Therefore, we hypothesized that in beta cells TRPM3 channels may contribute to pregnenolone sulfate- as well as to glucose-induced insulin release. Methods: We used INS-1 cells as a beta cell model in which we analysed the occurrence of TRPM3 isoformes by immunoprecipitation and western blotting and by cloning of RT-PCR amplified cDNA fragments. We applied pharmacological as well as CRISPR/Cas9-based strategies to analyse the interplay of TRPM3 and voltage-gated Ca2+ channels in imaging experiments (FMP, Fura-2) and electrophysiological recordings. In immunoassays, we examined the contribution of TRPM3 channels to pregnenolone sulfate- and glucose-induced insulin release. To confirm our findings, we generated beta cell-specific Trpm3-deficient mice and compared their glucose clearance with the wild type in glucose tolerance tests. Results: TRPM3 channels triggered the activity of voltage-gated Ca2+ channels and both channels together contributed to insulin release after TRPM3 activation. Trpm3-deficient INS-1 cells lacked pregnenolone sulfate-induced Ca2+ signals just like the pregnenolone sulfate-induced insulin release. Both, glucose-induced Ca2+ signals and the glucose-induced insulin release were strongly reduced. Accordingly, Trpm3-deficient mice displayed an impaired decrease of the blood sugar concentration after intraperitoneal or oral administration of glucose. Conclusion: The present study suggests an important role for TRPM3 channels in the control of glucose-dependent insulin release.
Introduction
The major function of pancreatic beta cells is the supply of insulin in response to increased blood glucose levels. After glucose uptake into the beta cell, the glycolytic increase of ATP induces the closure of ATP-dependent potassium channels leading to membrane depolarization, opening of voltage-gated Ca2+ channels (CaV), and increase of the concentration of cytosolic Ca2+ ([Ca2+]cyt), which in turn triggers the fusion of insulin-containing vesicles with the plasma membrane and the release of insulin into the blood [1].
Thus, ATP-dependent potassium channels and CaV channels serve as main mediators of insulin release, but additional channel proteins and among them, channels of the transient receptor potential (TRP) protein family participate in this process [1, 2]. For example, glucose-induced oscillations of cytosolic Ca2+ had a reduced frequency in pancreatic islets from Trpm5 knockout mice which was accompanied by reduced glucose-induced insulin release and impaired glucose tolerance [3]. Similarly, TRPM2-deficient pancreatic islet cells displayed reduced Ca2+ signals as well as impaired insulin secretion in response to glucose and glucagon-like peptide 1 [4]. TRPM3 channels are activated by the neurosteroid pregnenolone sulfate (PS, [5]) and induce a strong increase of [Ca2+]cyt [6-9]. In neurons - where they serve as pain sensors [10, 11] - their activity is temperature-dependent [10] and tightly controlled by Gβγ-subunits of G-protein coupled receptors [12-15]. The TRPM3 channel activity is enhanced by membrane phosphoinositides [16, 17]. On the other hand, it is inhibited by Ca2+ probably via interaction with Ca2+/calmodulin [18, 19]. The identification of two phosphatidylinositol 4,5-bisphosphate (PIP2) binding sites overlapping with calmodulin-binding regions suggested a balanced control of TRPM3 channels by Ca2+/calmodulin and phosphoinositides [20].
We could show that TRPM3 channels are expressed in pancreatic beta cells [5], where they establish an influx pathway for Zn2+, an ion that is co-released with insulin and essential for insulin secretion [21]. We proposed that TRPM3 channels may also contribute to glucose-induced insulin release since we found that pancreatic islets secrete insulin in response to PS [5]. In line with this idea, TRPM3-deficient pancreatic islets did not longer show PS-induced insulin release [22].
Here, we use TRPM3-deficient INS-1 insulinoma cells, to analyse the role of TRPM3 channels in insulin secretion. We demonstrate that the PS-induced insulin release originates exclusively from the activation of TRPM3. The TRPM3 activity alone is already sufficient to trigger insulin release and in addition activates voltage-gated Ca2+ influx. Most importantly, we show that TRPM3 channels also contribute to the glucose-induced increase of [Ca2+]cyt and the glucose-induced insulin secretion. Consistently, TRPM3-deficient mice displayed delayed clearance of blood glucose in response to a glucose load.
Materials and Methods
Cell culture and reagents
INS-1 cells [23] were cultured in RPMI 1640 medium (Gibco) supplemented with 10 % (v/v) fetal calf serum, 1 mM sodium pyruvate, 1 mM 4-(2-hydroxyethyl)-1-piperazineethanesulfonic acid (HEPES), 50 µM β-mercaptoethanol, 100 U/ml penicillin and 100 µg/ml streptomycin. HEKα2 cells [24] were cultured in Minimum Essential Medium (Gibco) containing 10 % fetal calf serum, 100 U/ml penicillin, 100 µg/ml streptomycin, and 500 µg/ml geneticin. Cells were cultured at 37°C and 5 % CO2 in a humidified atmosphere and passaged after trypsinization 1-2 times a week. 100 mM stock solutions of pregnenolone sulfate, hesperetin, isosakuranetin, and verapamil were prepared in DMSO and stored at -20°C.
Immunoprecipitation and western blotting
Immunoprecipitations were performed as described [25] using monoclonal anti-TRPM3 antibodies from rat [5] and affinity-purified polyclonal anti-TRPM3 antibodies from rabbit directed against the rat TRPM3 epitope QEKEPEEPEKPTKEK [6]. Rat immunoglobulin G (IgG) served as a control for the specificity of the immunoprecipitation and anti-calnexin antibodies (ADI-SPA-865-D, Enzo Life Sciences) were used to detect calnexin as a loading control in western blots. Labelled proteins were visualized using horseradish peroxidase-labelled secondary antibodies and the Western Lightning Chemiluminescence Reagent Plus (PerkinElmer).
Identification of Trpm3 transcripts in INS-1 cells
5 µg total RNA from rat brain or INS-1 cells were reverse transcribed using SuperScript 2 Reverse Transcriptase (Invitrogen). Fragments encoding entire TRPM3 proteins were amplified using the oligonucleotide primers A (5’ ATG GGC AAG AAG TGG AGG GAC), B (5’ ATG CCA GGG CCG TGG GGG AC), C (5’ CTG CAG AAC TTT GAA CTC CAG C), D (5’ TCC TGC AAC ACA CGG GAA GAT G) and the Expand Long Template PCR System (Roche) according to the manufacturer’s advice. For amplification of cDNA fragments < 1000 bp we used 100 ng total RNA for each reaction, the SuperScript One-Step RT-PCR System (Thermo Fisher Scientific), and the following oligonucleotide primers: E (5’ GAA TCG GTC AAG GGG TTC CAG), F (5’ ACT GCT GCC CGT AAA TAA AGA TC), G (5’ CCC AAT GAG GAG CCA TCT TGG) and H (5’ CCA TGA TGG CTG GCA CAA TCC). Amplicons were cloned in pBluescript KS- and sequenced on both strands.
CRISPR/Cas9-mediated knockout of the Trpm3 gene in INS-1 cells
To identify appropriate gRNA target sequences for editing of the Trpm3 gene we used the freely available online programs CRISPR.MIT.EDU [26] and E-CRISP [27]. In addition, Cas-OFFinder was used to identify possible off-target sequences [28]. To allow the identification of mutations, each of the identified sequences 5’ GA GCC TGG ATC TTC ACT GGA GGG (M3gRNA-1), 5’ GA CCC CTC CAG TGA AGA TCC AGG (M3gRNA-2) and 5’ GT ACT TCG TCA TCA TTA TGC TGG (M3gRNA-3) contained a restriction recognition site which overlapped the Cas9 cleavage site three nucleotides upstream of the protospacer adjacent motif. The target sequences were inserted into the vector pGS-U6-gRNA (Genscript), and INS-1 cells were co-transfected together with pcDNA3.3-Cas9-2A-eGFP, encoding the Cas9 enzyme and - linked via a 2A peptide sequence - the enhanced green fluorescent protein [29]. Three days post-transfection single green fluorescent cells were sorted into distinct wells of a 96-well plate using a MoFlo-XDP cell sorter (Beckman Coulter). Genomic Trpm3 fragments were PCR-amplified using oligonucleotide primers I (5’ CTG CAG AAC TTT GAA CTC CAG C), J (5’ AGT AAA GTC ACT CCT CCT ATG C), K (5’ GTA TTC AGT ATG CGG ACA TCC G) and L (5’ CCA AGA TGG CTC CTC ATT GGG; Fig. 3a). Amplicons were analysed by hydrolysis with TspR1 (M3gRNA-1, 213/96 bps) or Mbo1 (M3gRNA-2, 226/83 bps) or Msl1 (M3gRNA-3, 153/74 bps) and by sequencing of both strands (Fig. 3a).
Insulin secretion
After trypsinization, INS-1 cells were counted using an automated cell counter (Countess, Invitrogen) and 105 cells were seeded into one well of a poly-L-lysine coated 96-well plate each (Falcon). After three days, the medium was removed and cells were equilibrated in glucose-free Krebs Ringer bicarbonate HEPES buffer (KRBH; 135 mM NaCl, 3.6 mM KCl, 5 mM NaHCO3, 0.5 mM NaH2PO4, 0.5 mM MgCl2, 1.5 mM CaCl2, 10 mM HEPES, 0.1 % (w/v) BSA, 290 ± 5 mosm/kg, pH 7.4) for 30 minutes at 37°C and 5 % CO2. Thereafter, the solution was removed and cells were incubated for 30 or 60 minutes in 180 µl KRBH containing additional agents as indicated in the figure legends. Plates were centrifuged at 200×g for 5 min and 60 - 90 µl of the supernatants were removed for analysis. Samples were either analysed directly or stored at -80°C for no longer than one month. The insulin concentration in 5 µl supernatant was determined with an AlphaLISA Assay (AL350, PerkinElmer) according to the manufacturer’s protocol. Samples were measured with an EnSight multimode plate reader (PerkinElmer) and data was acquired with the associated Kaleido software (PerkinElmer).
Fluorescent Ca2+ measurements
The measurements of the cytosolic Ca2+ concentration were performed essentially as described [24]. In brief, cells were seeded on poly-L-lysine coated glass coverslips submerged in 2 ml medium. After 2-3 days, cells were loaded with 5 µM fura-2-acetoxymethyl ester (fura-2AM; Fisher Scientific) supplemented in KRBH for 30 minutes at 37°C and 5% CO2. Cells were washed twice with KRBH and analysed in a perfusion chamber (Warner Instruments, Hamden CT) with continuous perfusion of 1 ml/min at room temperature. Alternatively, measurements were performed in 300 µl KRBH in an open chamber and cells were stimulated by the addition of 300 µl of appropriate solutions. The fluorescence was excited at 340 nm and 380 nm for 20 ms each every three seconds and emissions were recorded at λ >440 nm with a CCD camera. Fluorescence ratios of individual cells were calculated after background subtraction using Till Vision software (TILL Photonics).
Fluorescent membrane potential measurements
Fluorescent membrane potential measurements were performed essentially as described [30]. In brief, the FLIPR membrane potential-sensitive dye (FMP) was dissolved in a buffer containing 140 mM NaCl, 2.8 mM KCl, 2 mM MgCl2, 1 mM CaCl2, 10 mM HEPES, 10 mM glucose, pH 7.4 or in high potassium buffer containing 70 mM NaCl, 70 mM KCl, 2 mM MgCl2, 1 mM CaCl2, 10 mM HEPES, 10 mM glucose, pH 7.4. Both solutions were mixed at equal amounts to reach 36.4 mM KCl. Pregnenolone sulfate and isosakuranetin were added to reach final concentrations as indicated. Measurements were performed at an Axiovert 200M microscope (Zeiss) equipped with a 20x Fluar objective (Zeiss), a polychrom V monochromator (TILL Photonics, Martinsried, Germany), and an IXon CCD camera (Andor). FMP was excited by 530 nm light and the emission was detected at 624 ± 40 nm.
Electrophysiological recordings
Whole-cell currents were recorded from wild-type and TRPM3-deficient INS-1 cells at an Axiovert 135 M microscope (Zeiss) equipped with a 40x LD Achroplan objective (Zeiss), using a computer-controlled EPC-9 patch clamp amplifier (HEKA Electronics, Lambrecht, Germany) and the PatchMaster software (HEKA). Patch pipettes were pulled from glass capillaries GB150T-8P (Science Products, Hofheim, Germany) at a PC-10 micropipette puller (Narishige, Tokyo, Japan) and had resistances between 3 and 4 MΩ when filled with internal (pipette) solution containing (in mM) 120 Cs-glutamate, 8 NaCl, 1 MgCl2, 10 HEPES, 10 Cs-BAPTA (1,2-bis(2-aminophenoxy)ethane-N,N,N′,N′-tetraacetic acid); pH adjusted to 7.2 with CsOH. The external solution comprised (in mM) 140 NaCl, 2 MgCl2, 1 CaCl2, 10 HEPES, 10 glucose, 10 µM verapamil; pH adjusted to 7.2 with NaOH. For application 100 µM pregnenolone sulfate (PS) were added and administered directly onto the patch clamped cell via a wide-tipped patch pipette. All solutions had an osmolality between 285 and 305 mosmol/kg. For current measurements, 400 ms voltage ramps spanning from -100 to +100 mV were applied every 2 s from a holding potential (Vh) of 0 mV. Currents were filtered at 2.9 kHz and digitized at 400 µs intervals. All voltages were corrected for a 10 mV liquid junction potential. Capacitive currents and series resistance were determined and corrected before each voltage ramp using the automatic capacitance compensation of the EPC-9. Current amplitudes at -80 and 80 mV were extracted from current ramps and plotted versus time. All currents were normalized to the cell capacitance as a measure of the cell size to calculate current densities (pA/pF).
Generation of beta cell-specific Trpm3 knockout mice
Mice carrying an L3F2 allele (Fig. 5a) were generated as described [15]. Mice with a floxed Trpm3 allele (L2) in which exon 24 is flanked by loxP sequences (Fig. 5a) were obtained by mating L3F2 mice with EIIa-Cre deleter mice [31]. Due to the low EIIa promoter activity, the Cre-positive offspring carried a genetic mosaic of three Trpm3 alleles including the floxed Trpm3 (L2) allele (Fig. 5a). Mating of mosaic mice that carried the floxed Trpm3 allele in their germ cells with wild-type animals produced a heterozygous Trpm3+/flox offspring which was further bred to obtain Trpm3flox/flox animals. RIP-Cre mice expressing the Cre recombinase under the control of the rat insulin promoter [32] were crossed with Trpm3-/- mice [15] and the Trpm3+/-, RIP-Cre positive (RIP-Cre+) offspring was mated with Trpm3flox/flox animals to obtain Trpm3-/flox, RIP-Cre+ animals which were TRPM3-deficient exclusively in pancreatic beta cells. In experiments, their Trpm3-/flox, RIP-Cre negative (RIP-Cre-) littermates served as controls.
Glucose tolerance test
Blood glucose concentrations of male mice were determined at an age of 20 to 21 weeks each after 12 - 14 hours of fasting and 15, 30, 60, and 120 min after intraperitoneal (IP) or oral administration of 2 g glucose/kg body weight. 5 - 10 μl of blood were collected after a single incision at the tail end and analysed using a blood sugar measuring device (FreeStyle, Disetronic). Trpm3-/flox, RIP-Cre+ and Trpm3-/flox, RIP-Cre- control mice were examined in parallel.
Data processing and statistics
Data of insulin measurements were processed using the GraphPad Prism software and are depicted in scattergrams together with their mean values. Ratio data from fluorescent Ca2+ measurements were plotted as individual curves together with their mean value, or mean values only, both together with the corresponding standard error of the mean (SEM) using OriginPro. One-way analysis of variance (one-way ANOVA) combined with Bonferroni's multiple comparison test was performed to test the statistical significance of differences between samples. In glucose tolerance experiments data were tested for their statistical significance using two-way repeated measures ANOVA with Bonferroni post-hoc test. In the figures, the statistical significance of differences between samples is indicated by asterisks with *p< 0.05, **p< 0.01, ***p< 0.001 and ns = not significant.
Results

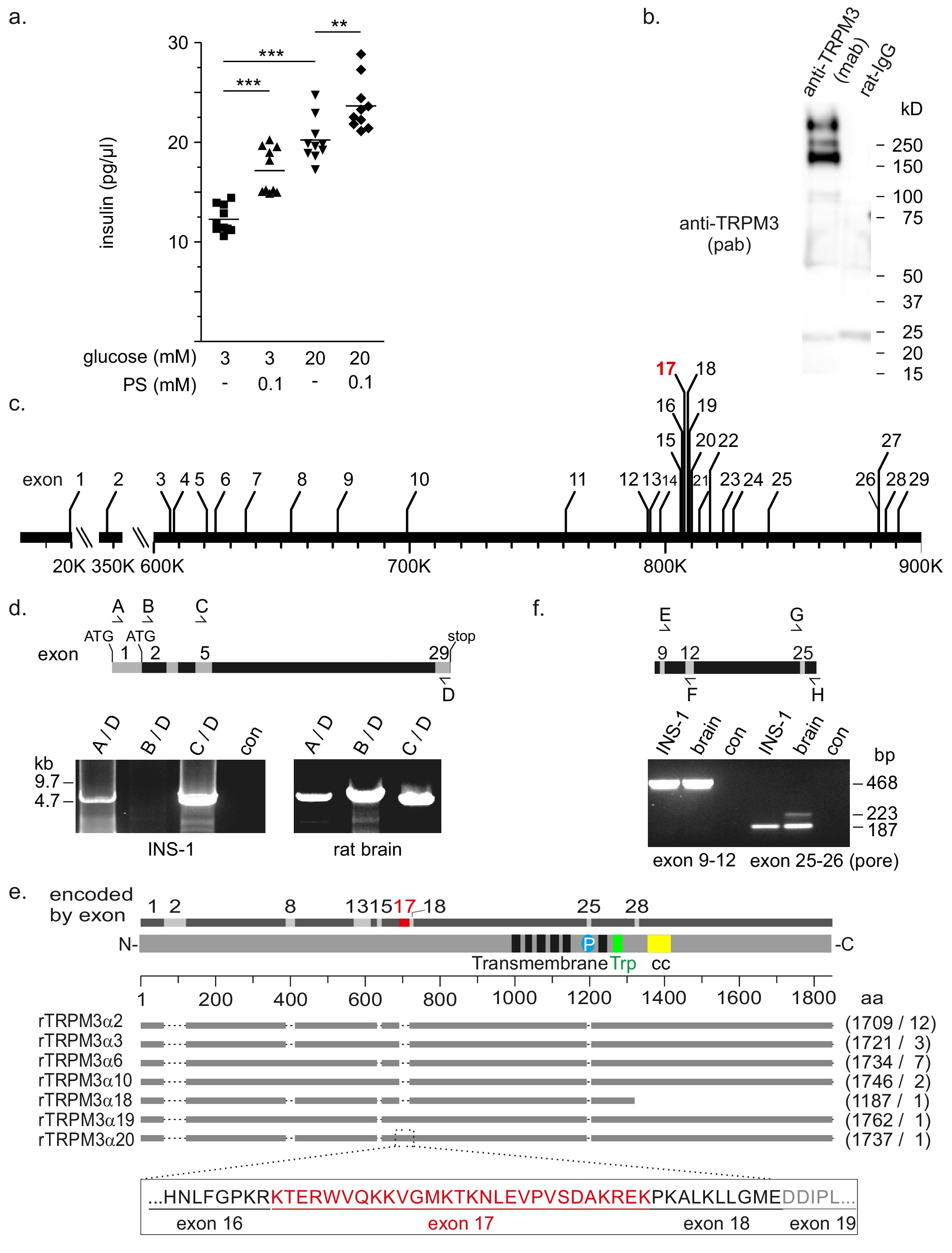

INS-1 cells provide a suitable beta cell model to study the role of TRPM3 in insulin release
To analyse the role of TRPM3 channels in pancreatic beta cells, we used rat insulinoma cells of the line INS-1, which upon addition of glucose or the TRPM3 agonist pregnenolone sulfate (PS) raise [Ca2+]cyt and release insulin [5, 23, 33]. Fig. 1a shows, that the cells responded to the application of glucose and PS with enhanced insulin release in a concentration-dependent manner and that the PS-induced release was additive both at low and high glucose concentrations. Furthermore, PS stimulated the insulin release also in the absence of glucose (Fig. 2h). Immunoprecipitation experiments using a combination of monoclonal (mab) and polyclonal (pab) anti-TRPM3 antibodies confirmed the presence of TRPM3 proteins in INS-1 cells (Fig. 1b, [5]).
Since the properties of TRPM3 isoformes widely diverge with regard to functionality and Ca2+ permeability [8, 24, 34], we next asked, which TRPM3 variants are present in INS-1 cells. For that purpose, we analysed the rat Trpm3 gene and the Trpm3 transcriptome in INS-1 cells in more detail (Fig. 1c-f). The rat Trpm3 gene is located on chromosome 1q51, encompasses at least 870 kb, and displays an exon-intron structure very similar to the genes from mouse and man (Fig. 1c). For transcriptome analysis, mutually exclusive Trpm3 transcripts starting with exon 1 (Trpm3α or exon 2 (Trpm3β [34] were amplified using sense oligonucleotide primers A, B, or C (as control) each in combination with the antisense primer D, matching to the very last coding nucleotides of the Trpm3 gene (Fig. 1d). Amplicons > 5 kb were obtained with each of the primer combinations from brain, suggesting the presence of both α- and β-variants. From INS-1 RNA however, no fragments were amplified with primer combination B/D (n = 4), indicating the absence of TRPM3 β-variants in INS-1-cells. A/D- amplicons from INS-1 cells were cloned and sequenced (Fig. 1e). Among 27 transcripts analysed, we found twelve that corresponded to the isoform TRPM3α2 from mouse [24]. Further three and seven transcripts encoded the isoformes TRPM3α3 and TRPM3α6, respectively. The encoded proteins differed by only 13 single amino acid exchanges and displayed > 99 % amino acid sequence identity to the corresponding mouse proteins. In addition, we identified four novel TRPM3 splice variants TRPM3α10, TRPM3α18, TRPM3α19, and TRPM3α20 from rat (Fig. 1e). Trpm3α18 transcripts lacked rat exon 28 (133 nt) causing a frameshift and a premature translation stop of the protein. In contrast, Trpm3α19- and Trpm3α20- transcripts contained a new, thus far unknown exon 17 encoding 28 additional amino acid residues (Fig. 1c, e). Hence, the Trpm3 gene from rat comprises in total 29 coding exons. All TRPM3 variants identified in INS-1 cells contained a domain encoded by exon 13 which is indispensable for the TRPM3 channel function (Fig. 1e [24]). Furthermore, all Trpm3 transcripts lacked a part of exon 25 (36 nt) which encodes a longer pore loop (Fig. 1e). Long pore variants display a strongly reduced Ca2+ permeability and lack inhibition by monovalent cations [8]. To confirm our finding, we performed additional RT-PCR experiments using primers located in exon 25 and exon 26 upstream and downstream of the spliced sequence (Fig. 1f). In contrast to rat brain RNA, no transcripts encoding a long pore were amplified from INS-1 cells. Hence, common to all TRPM3 variants identified in INS-1 cells was the presence of a short pore loop. Suchlike variants display a fractional Ca2+ current of 24 % under physiological ion conditions and therefore significantly increase [Ca2+]cyt after activation [9]. Taken together, the data showed that INS-1 cells express functional and Ca2+-permeable TRPM3 channel proteins that display both a PS- and a glucose-induced insulin release. Therefore, INS-1 cells constitute an appropriate beta cell model to analyse the contribution of TRPM3 channels to insulin release.

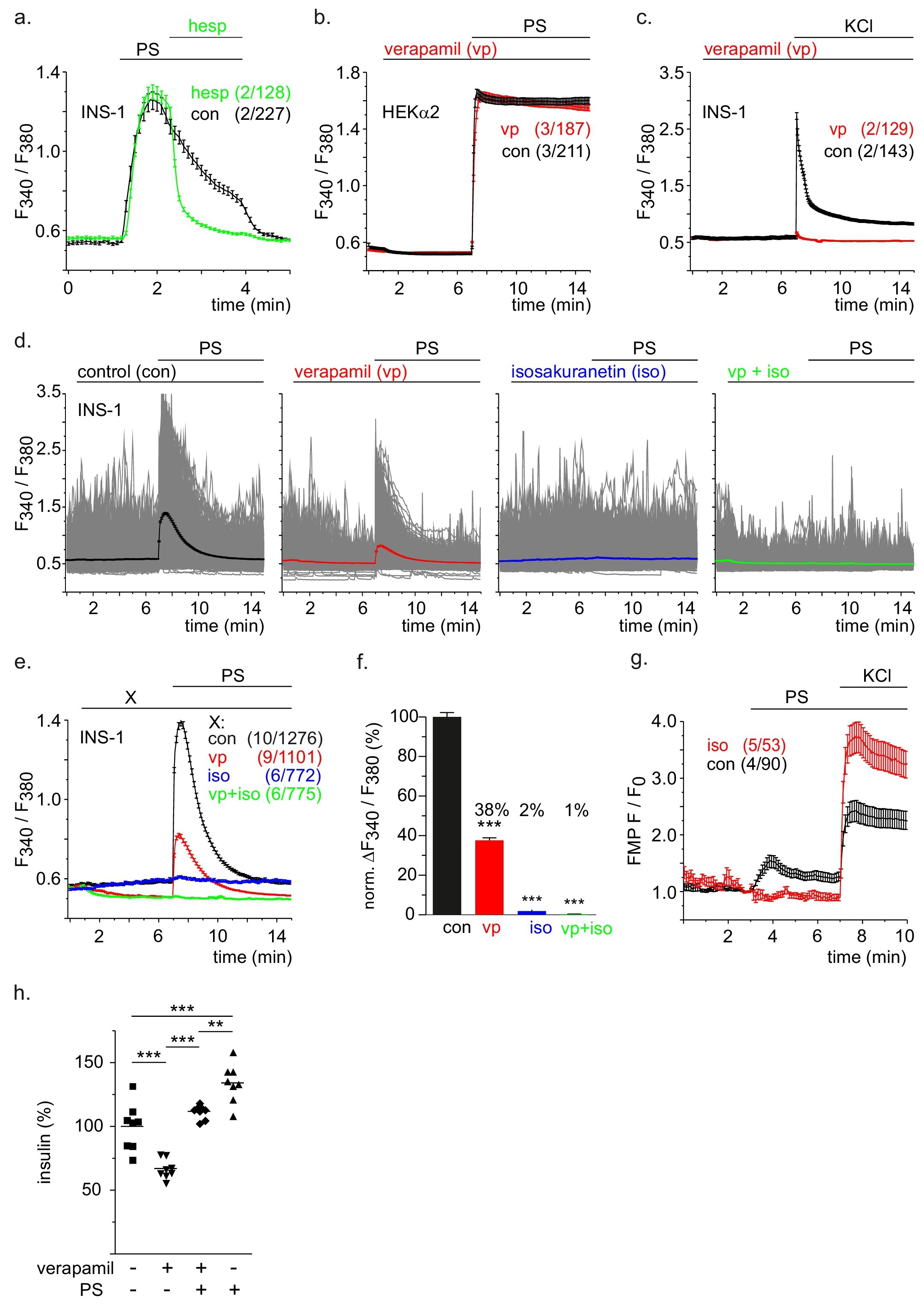

TRPM3 channels stimulate voltage-gated Ca2+ channels and both channels, TRPM3 and CaV, contribute in concert to PS-induced insulin release
Next, we asked whether and how TRPM3 channels cooperate with voltage-gated Ca2+ channels. In the presence of the TRPM3 antagonists hesperetin [35] and isosakuranetin [36] the PS-induced increase of [Ca2+]cyt was completely absent (Fig. 2a, d-f), showing that in INS-1 cells TRPM3 channels were active and that PS did not directly activate voltage-gated Ca2+ channels. Conversely, the L-type CaV-antagonist verapamil in a concentration of 50 µM did not affect the PS-induced Ca2+ entry through TRPM3 channels (Fig. 2b) but it inhibited completely the potassium-induced Ca2+ influx through voltage-gated Ca2+ channels (Fig. 2c) demonstrating that in INS-1 cells verapamil inhibits CaV but does not influence TRPM3 channels.
In the absence of any stimuli (control condition), we observed spontaneous Ca2+ oscillations in INS-1 cells that were considerably reduced after addition of verapamil but not after addition of isosakuranetin (Fig. 2d). This suggests a constitutive CaV activity in INS-1 cells. In agreement with this observation, the insulin release (in the absence of any stimulus) was strongly reduced in the presence of verapamil (Fig. 2h). Now we tested the effects of verapamil upon the PS-induced Ca2+ entry. The blockage of CaV channels by verapamil significantly reduced the PS-induced Ca2+ increase by 62 %, indicating that TRPM3 channels stimulate Ca2+ entry through CaV channels (Fig. 2e, f). Since the reversal potential of TRPM3 channels is close to 0 mV [5], the opening of TRPM3 channels may depolarize the cell membrane potential, which in turn may trigger the activity of voltage-gated Ca2+ channels. To test this hypothesis, we analysed changes of the membrane potential following PS stimulation of TRPM3 channels using the membrane potential dye FMP (Fig. 2g). Corresponding to the observed spontaneous Ca2+ oscillations (Fig. 2d) we found transient depolarizations of the membrane potential in some cells already in the absence of any stimuli (data not shown). In response to PS stimulation, we observed an immediate increase of the membrane potential that was absent in the presence of isosakuranetin (Fig. 2g). This finding demonstrates that the opening of TRPM3 channels raises the membrane potential which is expected to activate voltage-gated Ca2+ channels as a direct consequence.
On the other hand, we observed - even in the presence of verapamil – a significant Ca2+-increase of 38 % after PS stimulation (Fig. 2f), demonstrating that TRPM3 channels themselves contribute significantly to Ca2+ entry in INS-1 cells. Accordingly, the addition of PS induced a significant release of insulin when CaV channels were blocked by verapamil (Fig. 2h). Hence, Ca2+ entering the cell through TRPM3 channels is sufficient to induce an insulin release from INS-1 cells. Finally, in the absence of verapamil, PS induced a further enhanced release of insulin which is most likely due to Ca2+ entry through both channels TRPM3 and CaV (Fig. 2h).

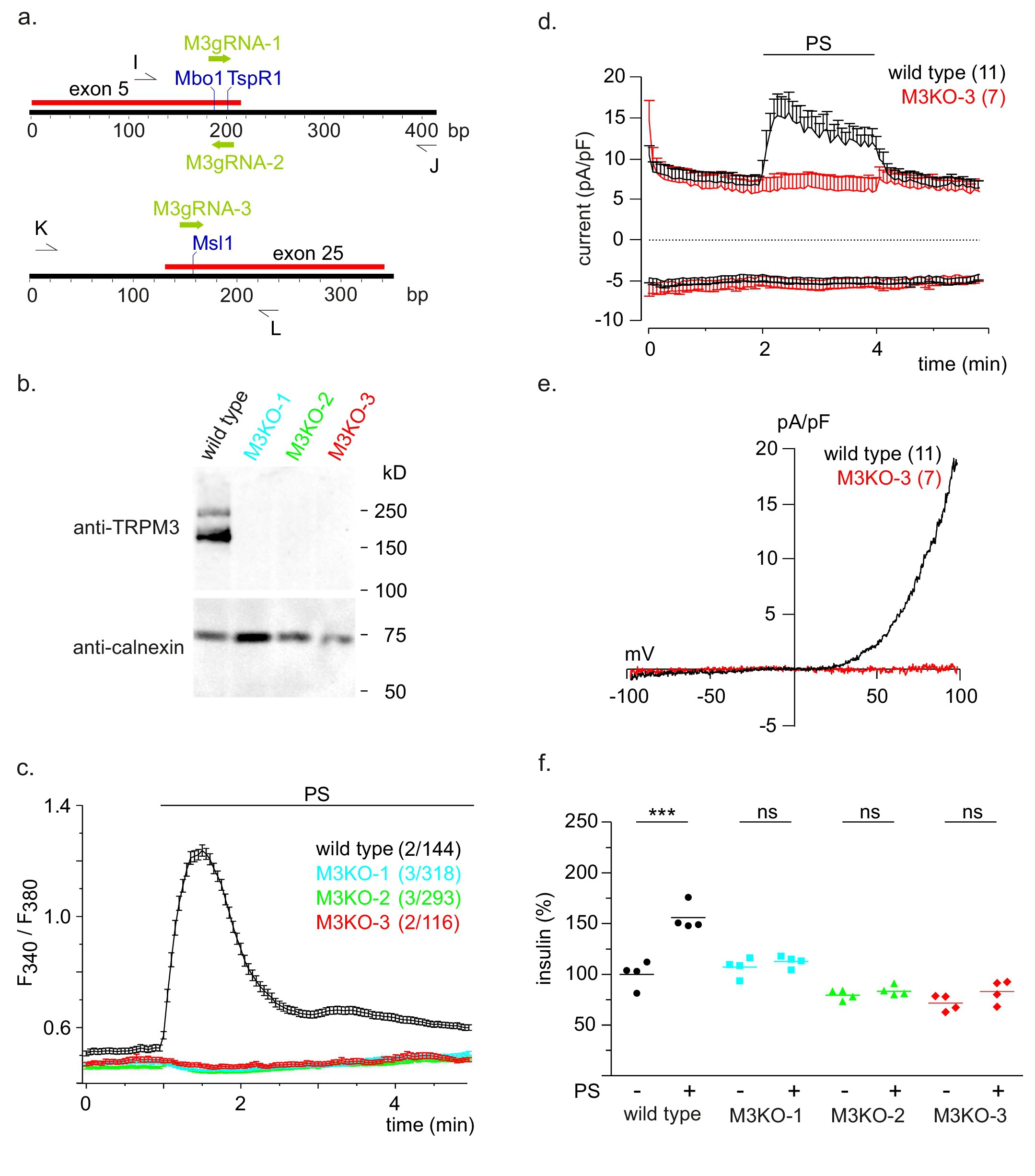

Deletion of TRPM3 channels abolishes PS-induced elevation of [Ca2+]cyt and insulin release
To further support these findings and to exclude that PS serves TRPM3-independent actions in pancreatic beta cells we generated TRPM3-deficient INS-1 cell clones (knockout) using a CRISPR/Cas9-based strategy (Fig. 3a). To rule out off-target phenotypes, we selected three independent targets within the Trpm3 gene. Two of them were located in exon 5, the first protein-coding exon common to all TRPM3 variants from mouse, man, and rat (Fig. 1e, [34]). The third target was located in exon 25 which encodes the pore region of the channel protein (Fig. 1e). A single clone was selected from each target. The mutants carried either homozygous insertions (M3KO-1, M3KO-3) or a homozygous deletion (M3KO-2) of single thymidines leading to frameshifts and premature stops within the TRPM3 reading frame. Accordingly, TRPM3 proteins were no longer detectable in the mutants (Fig. 3b). Already in the absence of any stimulus, we observed reduced basal [Ca2+]cyt in Trpm3 knockout cells (Fig. 3c), indicating that TRPM3 channels may contribute to a constitutive elevation of [Ca2+]cyt. None of the Trpm3 knockout cells displayed elevated [Ca2+]cyt levels in response to PS (Fig. 3c), demonstrating that PS selectively activates TRPM3 channels but no TRPM3-independent Ca2+ entry pathways including CaVs. Consistently, TRPM3 currents were no longer detectable in the knockout cells after addition of PS (Fig. 3d, e). Likewise, Trpm3 knockout cells did not longer show increased insulin levels after PS application, confirming that the PS-induced insulin release of INS-1 cells exclusively depends on TRPM3 (Fig. 3f).

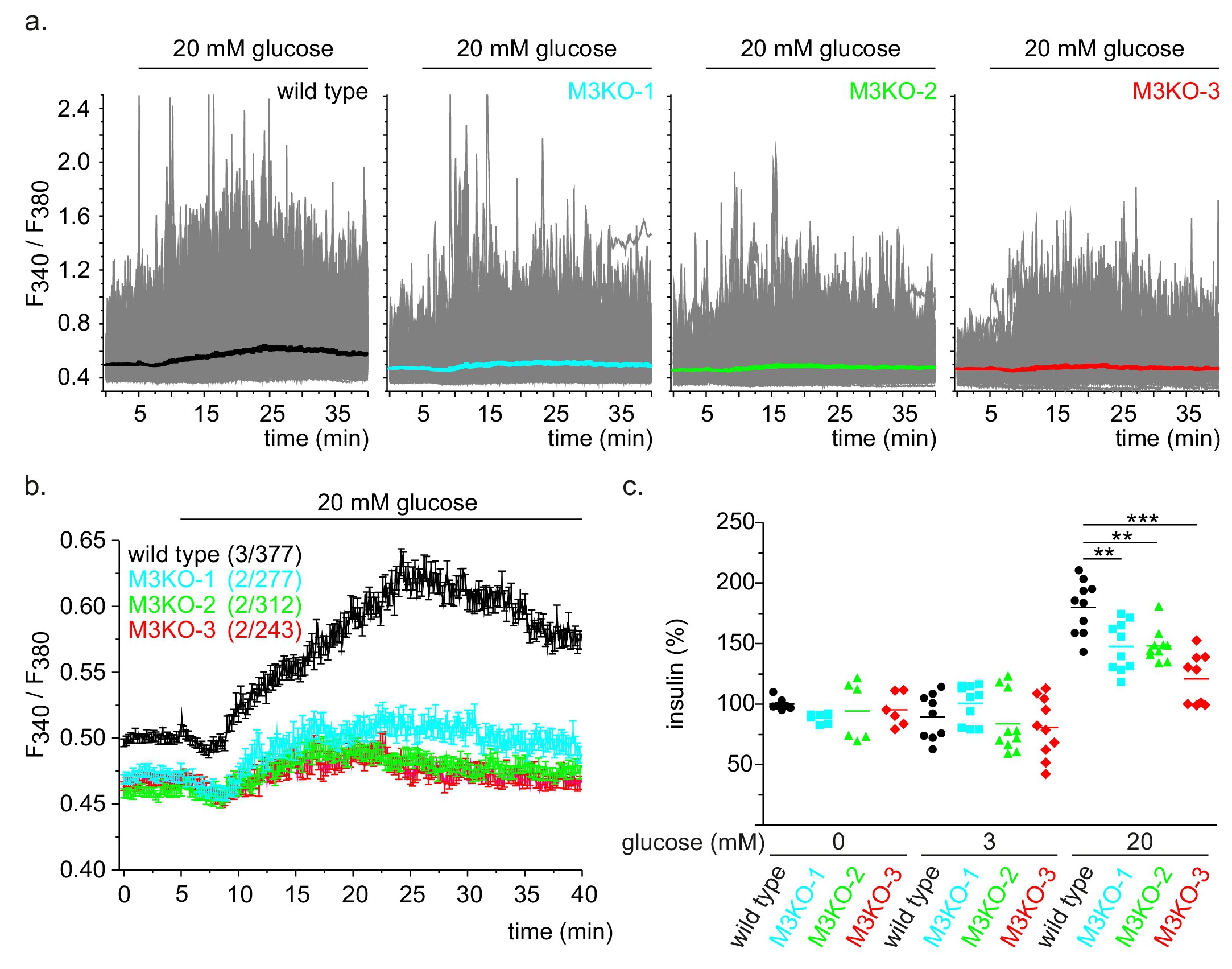

TRPM3 channels contribute to glucose-stimulated insulin release in INS-1 cells
We next asked, whether TRPM3 channels in beta cells are stimulated by glucose and if so, whether TRPM3 activity contributes to glucose-induced insulin release? To answer this question, we performed Ca2+ measurements using wild-type and TRPM3-deficient INS-1 cells (Fig. 4a, b). Again, in the absence of glucose, we observed reduced basal [Ca2+]cyt in the knockout cells. In the presence of 20 mM glucose, Ca2+ oscillations and the mean cytosolic Ca2+ concentration significantly increased in wild-type cells over a period of ~20 min with a delay of ~2-3 min before it decreased again slowly (Fig. 4a, b). In contrast, in Trpm3 knockout cells, the glucose-induced increase of [Ca2+]cyt was strongly reduced, showing that glucose activates TRPM3 channels in pancreatic beta cells. Correspondingly, we found the glucose-dependent insulin release significantly reduced in all three independent Trpm3 knockout clones (Fig. 4c). This finding clearly demonstrates the contribution of TRPM3 channels to glucose-induced insulin release from beta cells.

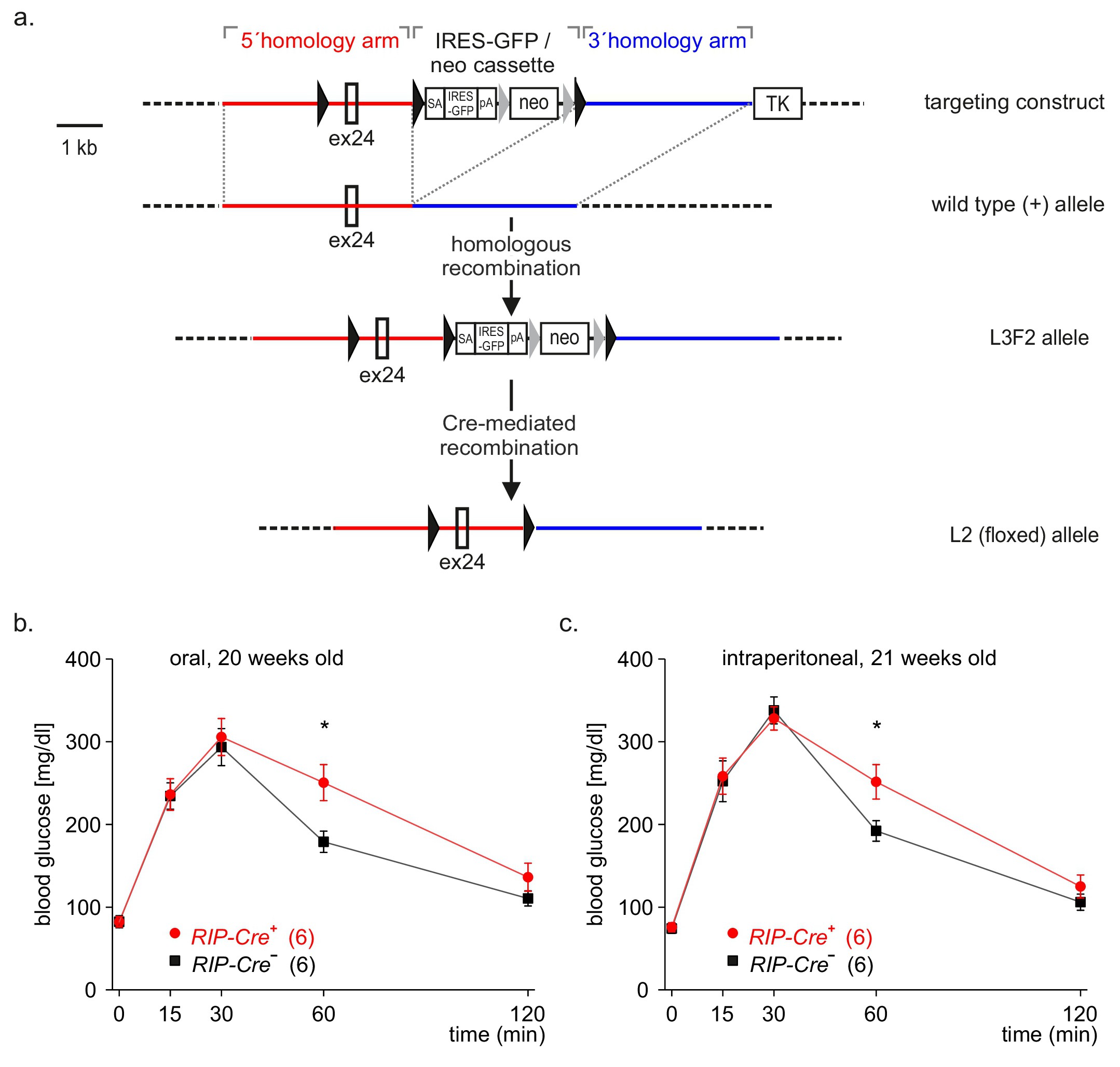

TRPM3-deficient mice display a delayed clearance of blood glucose in response to a glucose load
Does this result also apply to TRPM3 channels in beta cells of whole organisms? If this would be the case, one would expect that in animals lacking TRPM3 channels blood sugar levels decrease much slower after glucose ingestion due to reduced insulin release. To analyse this question, we generated mice lacking TRPM3 channels exclusively in pancreatic beta cells (beta cell-specific Trpm3 knockout) using a Cre-loxP strategy (Fig. 5a). Mice carrying two floxed Trpm3 alleles each with the channel pore-forming exon 24 flanked by loxP sequences (Trpm3flox/flox) were mated with mice in which one Trpm3 allele was deleted and which additionally carried a Cre recombinase transgene under the control of the rat insulin promoter (Trpm3+/-, RIP-Cre+, [32]). The Trpm3-/flox, RIP-Cre+ offspring lacked both TRPM3 alleles exclusively in beta cells due to insulin promoter-driven Cre recombinase expression. These Trpm3-/flox, RIP-Cre+ animals were compared to their Trpm3-/flox, RIP-Cre- littermates lacking the transgene (control). There was no difference in resting blood glucose levels before the application of glucose (Fig. 5b, c). However, Trpm3-/flox, RIP-Cre+ mice displayed a delayed glucose clearance 60 min after administration of glucose compared to the controls. This difference was apparent in adult animals after oral administration of glucose (Fig. 5b) as well as after intraperitoneal application of glucose (Fig. 5c). In summary, the data indicate that TRPM3 channels contribute in vivo to glucose clearance most probably by increasing the glucose-induced insulin release from beta cells.
Discussion

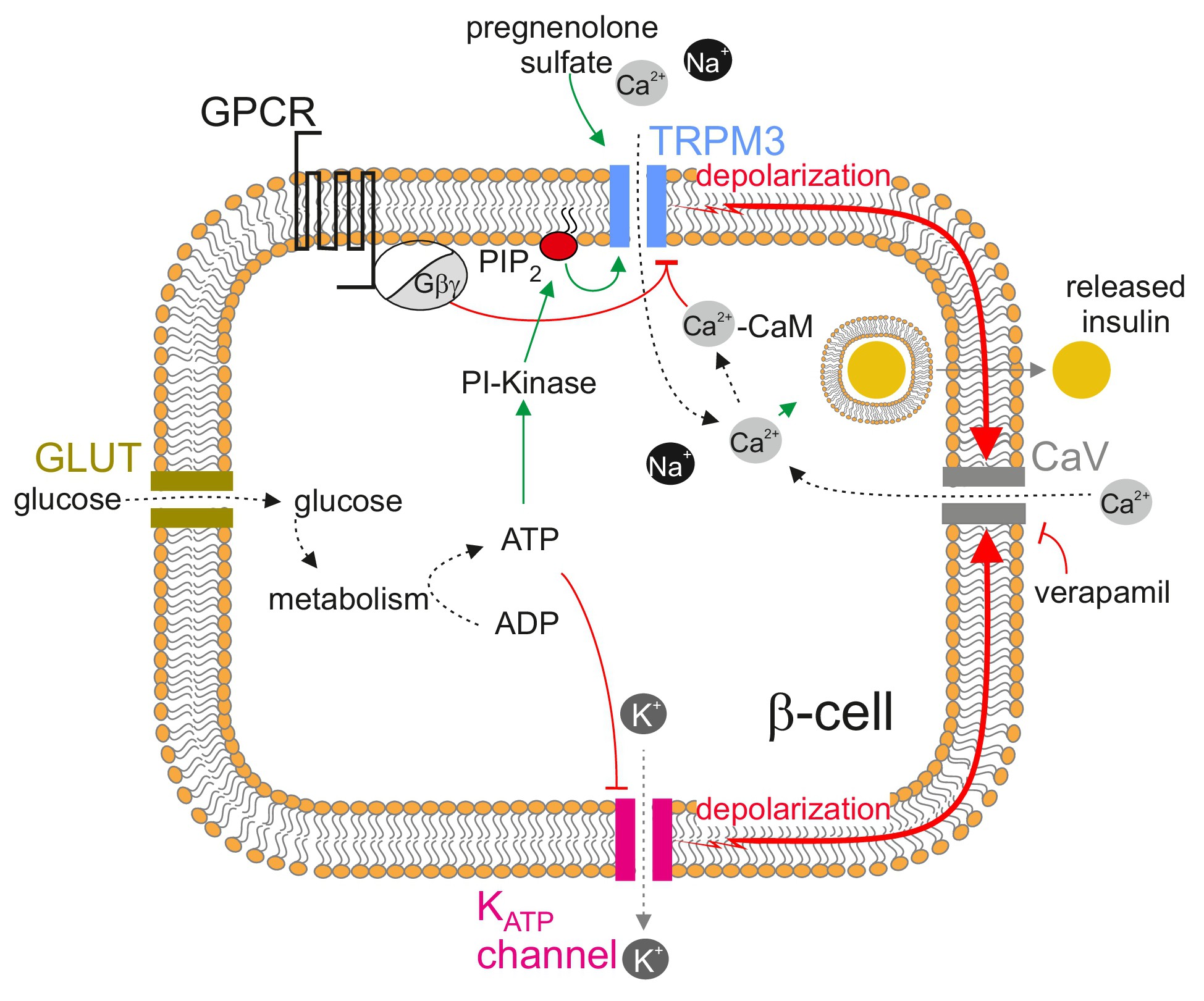

TRPM3 channels trigger insulin release both independently and in concert with CaV channels
In agreement with previous reports, we show here in pancreatic beta cells of the line INS-1 that both, Ca2+ entry into the cell and insulin released by the cell are increased after the addition of the TRPM3 agonist PS [22, 33]. By comparison of wild-type and Trpm3 knockout cells, we also demonstrate that the PS-induced Ca2+ signal and the PS-induced insulin release are initiated exclusively via TRPM3 channels and that verapamil effectively inhibits CaVs but not TRPM3 channels. In the presence of high concentrations of verapamil sufficient to block CaVs, PS still substantially increased not only cytosolic Ca2+ levels but also the release of insulin, demonstrating that Ca2+ entering the cells through TRPM3 channels is in principle sufficient to trigger the insulin release independently of other Ca2+ entry pathways. Consequently, we found that most of the transcripts that are expressed in INS-1 cells encoded a Ca2+-permeable pore. At physiological ion concentrations, TRPM3 isoforms with such a pore loop display a fractional Ca2+ current of 24 % [9] and are therefore expected to substantially raise [Ca2+]cyt. However, we still found a pronounced effect of verapamil on both the PS-induced Ca2+ signals and the PS-induced insulin secretion proving an indirect contribution of CaVs to PS-induced signalling pathways in INS-1 cells. This indirect contribution is attributed to a TRPM3-controlled increase of the membrane potential that raises the open probability of CaVs (Fig. 6). This leads to additional Ca2+ entry into the cells and therefore to enhanced insulin release. TRPM3 might interfere with the oscillatory change of the membrane potential similar to what has been shown for Ca2+ impermeable TRPM5 channels [3]. In contrast to Ca2+-impermeable TRPM5 channels, TRPM3 channels may also directly interfere with the oscillatory change of [Ca2+]cyt because of their own Ca2+ permeability.
In line with this scenario, we observed reduced Ca2+ oscillations in all TRPM3-deficient INS-1 clones. Thus, we suggest a constitutive TRPM3 activity in wild-type INS-1 beta cells as it has been described for overexpressed TRPM3 channels as well as for native TRPM3 channels in vascular smooth muscle cells [6-8, 37]. We suggest that constitutive TRPM3 activity fine-tunes the basal [Ca2+]cyt and contributes to the regulation of the membrane potential. Constitutive TRPM3 activity may therefore increase the probability for CaV channel openings also in the absence of any external stimuli. Accordingly, we found that the CaV channel blocker verapamil reduced basal [Ca2+]cyt already in the absence of external stimuli. Isosakuranetin did not change basal [Ca2+]cyt since this flavanone conceivably acts as competitive antagonists of PS that -in contrast to inverse agonists- do not affect constitutive TRPM3 activity.
TRPM3 channels participate in glucose-stimulated insulin secretion
The application of PS uncovered the potential of TRPM3 channels to trigger the release of insulin from INS-1 cells. However, reliable data about the incidence and concentration of PS in the endocrine pancreas are lacking and hitherto there is no experimental evidence for an involvement of PS in the control of insulin release. Therefore, we asked whether TRPM3 channels also respond to glucose – the most important trigger of insulin release. Our data demonstrate a significant reduction of the glucose-induced insulin release in TRPM3-deficient beta cell clones. Accordingly, glucose-induced Ca2+ oscillations were strongly decreased in the absence of TRPM3 channels. Thus, TRPM3 channels do not only increase the insulin release in response to direct and extracellular binding of PS [5] but also in response to elevated levels of glucose (Fig. 4). In line with our finding Klose and co-workers showed that the TRPM3 antagonist mefenamic acid attenuated glucose-stimulated insulin secretion from INS-1 cells [33]. These results are now further supported by our investigations of blood sugar levels in vivo. Similar to recent observations made in mice with a global TRPM3 deficiency [10], beta cell-specific Trpm3 knockout mice showed no differences in resting blood glucose levels, indicating that basal insulin release is not substantially influenced by TRPM3. However, after oral as well as after intraperitoneal glucose administration we found a delayed clearance of blood glucose in mice lacking TRPM3 channels in pancreatic beta cells 60 min after glucose load. This observation strongly indicates that TRPM3 channels contribute to glucose clearance in vivo and further supports the finding that TRPM3 channels participate in glucose-stimulated insulin secretion. In apparent contradiction to these findings, Held and co-workers did not observe significant differences in insulin release from isolated Langerhans islets from wild-type mice and mice with a global Trpm3-deficiency 15 min after stimulation with 20 mM glucose [22]. The reason for this discrepancy is not known but might be related to different time intervals of the observations. Also, differences between wild-type mice and mice with a global Trpm3-deficiency may have been covert by compensatory mechanisms not related to beta cell function.
It remains an open question, how increased glucose levels influence TRPM3-mediated Ca2+ entry and insulin release. Similar to the closure of ATP-sensitive potassium channels (KATP channels) by ATP, we suggest a mechanism that couples metabolic changes following glucose uptake to the electrical activity of the cell (Fig. 6). Like for KATP channels, this may depend on secondary mediators that are built by catabolism of glucose. For TRPM2 cyclic adenosine diphosphate-ribose and nicotinamide adenine dinucleotide has been proposed as such mediator [4]. For TRPM3, convincing evidence for direct regulation by different membrane phosphatidylinositol phosphates has been provided after heterologous TRPM3 expression [16, 17] as well as in INS-1 cells [16].
Thus increased ATP-levels resulting from glucose catabolism may not only reduce the open probability of KATP channels but may also increase at first the PI-Kinase activity, thereby the amount of phosphoinositides (like PIP2) in the plasma membrane and finally the TRPM3 activity linking TRPM3 channels to PIP2-mediated control of Ca2+ influx and signalling pathways which shape insulin release [38-40] (Fig. 6). We assume additional regulatory mechanisms to be involved. The TRPM3 channel activity is strongly inhibited by intracellular Ca2+ conceivably mediated by the Ca2+ binding protein calmodulin (CaM, [18, 19]) and it has been reported that “PIP2 interacts with CaM binding domains on TRPM3 N-terminus” [20] (Fig. 6). As described in neurons, G-protein coupled receptors (GPCR) may inhibit TRPM3 activity and may link TRPM3 to sympathoadrenal input to reduce insulin release and increase blood glucose levels under stress conditions (Fig. 6).
Similar to INS-1 cells, the Trpm3 gene is expressed in human primary pancreatic beta cells [41] and we assume that TRPM3 channels might serve similar functions in human beta cells. However, future investigations need to confirm whether TRPM3 channels indeed participate in glucose-stimulated insulin secretion in humans. Interestingly, prediabetes and type 2 diabetes mellitus were found to be inversely related to the serum concentration of the PS-precursor pregnenolone in the Chinese rural population [42] and PS levels were shown to be selectively increased during insulin-induced hypoglycaemia [43].
Conclusion
In conclusion, our results suggest an essential role of TRPM3 channels in the control of glucose-dependent insulin release and therefore open up TRPM3 channels as new targets for the development of antidiabetic drugs.
Acknowledgements
INS-1 cells were a generous gift from Per-Olof Berggren and Barbara Leibiger, Karolinska Institutet, Stockholm. We thank Veit Flockerzi and Johannes Oberwinkler for helpful discussions and critically reading the manuscript and Ute Soltek, Heidi Löhr and Martin Simon-Thomas for excellent technical help.
Author Contributions
A. Becker, S. Mannebach and S.E. Philipp designed research. A. Becker, S. Mannebach, I. Mathar, A.P. Loodin, C. Fecher-Trost, A. Beck and S.E. Philipp performed experiments. A. Becker, S. Mannebach, P. Weissgerber, M. Freichel, A. Belkacemi, A. Beck and S.E. Philipp analysed data. M. Freichel edited the paper. A. Becker co-wrote the paper. S.E. Philipp wrote the paper.
Funding Sources
This work was supported by grants from the Deutsche Forschungsgemeinschaft (DFG, German Research Foundation) CRC 894 (P. Weissgerber, A. Beck, S.E. Philipp), CRC 1118 (M. Freichel) and the Universität des Saarlandes (HOMFOR, S.E. Philipp).
We acknowledge support by the Deutsche Forschungsgemeinschaft (DFG, German Research Foundation) and Saarland University within the funding programme Open Access Publishing.
Statement of Ethics
The authors have no ethical conflicts to disclose.
Disclosure Statement
The authors have no conflicts of interest to declare.
